[CIM/Sys. Definition] Solid Element Concept

Question

What are Solid objects and 1D elements in CIM?



Answer

Solid elements that represent 3D objects are composed of 1D members, 2D members and 3D solids and each of them have characteristics as shown below.

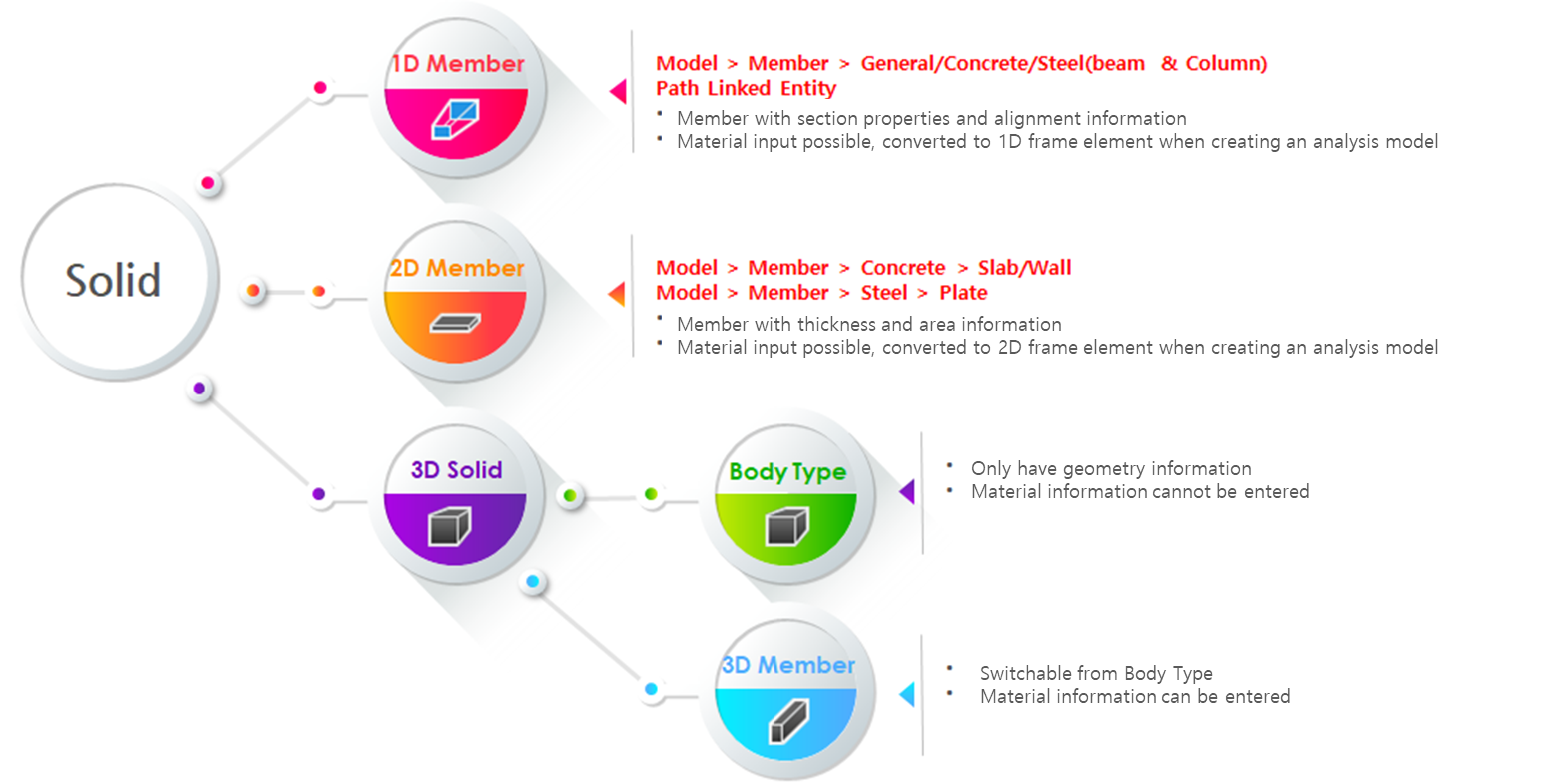

Figure.1 Structure of Solid Elements


Rebar is only possible through 1D, 2D and 3D Members where material properties can be set, and the material needs to be concrete.
