[Civil]The Column cross-section is not visible in the Section List

Question

The column cross-section is not showing in the Section List.



Answer

The Section List is only activated when certain DB sections provided by midas Civil and concrete material properties are applied.

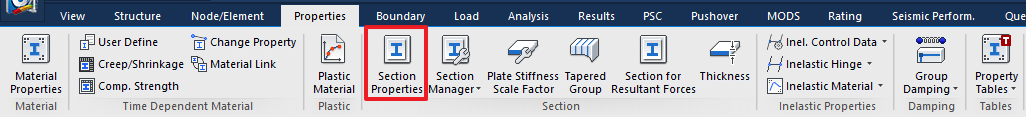

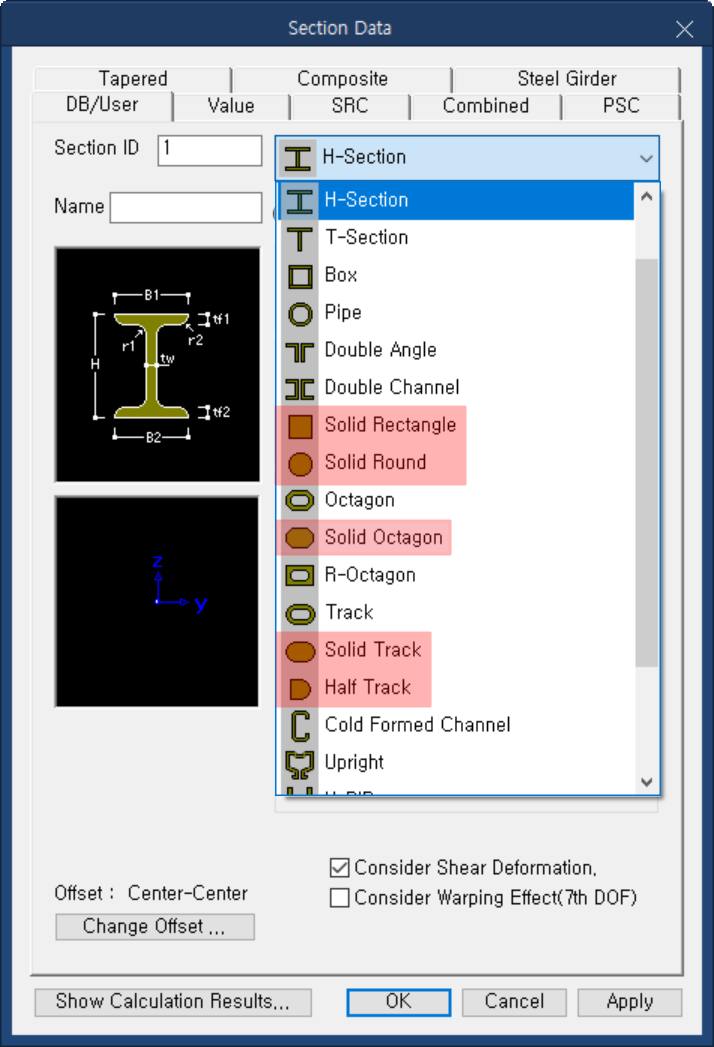

( ※ DB sections : Solid Rectangle, Solid Round, Solid Octagon, Solid Track, Half Track )

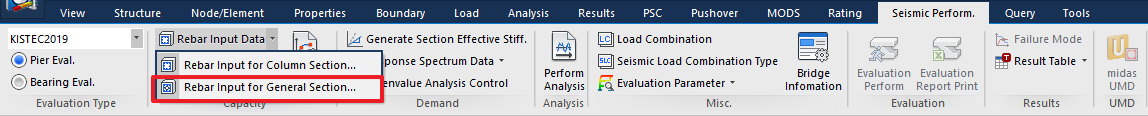

Seismic Perform > Capacity > Rebar Input Data > Rebar Input for Column Section...

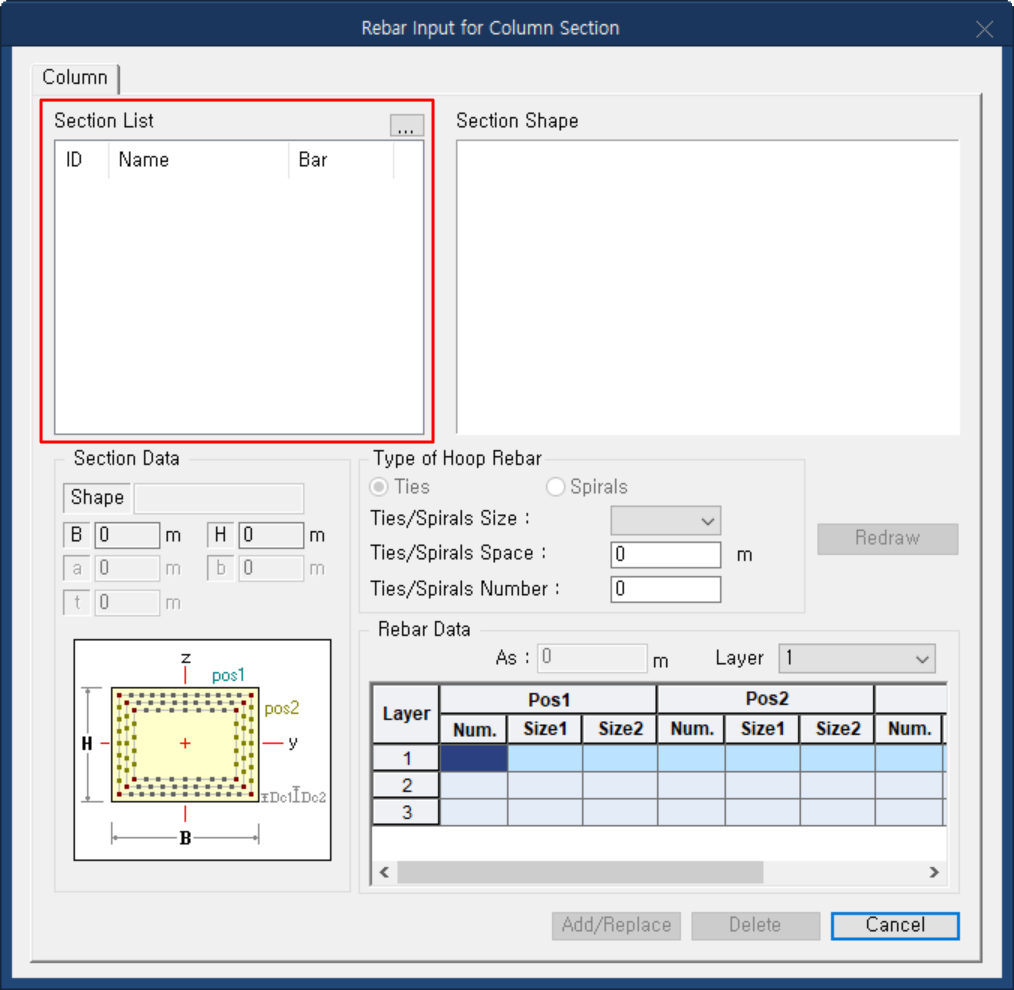

[Rebar Input for Column Section]


[Section Data]



Even if you have used midas Civil's DB sections, if the column is not made of concrete, that particular section will not be activated in the Section List.

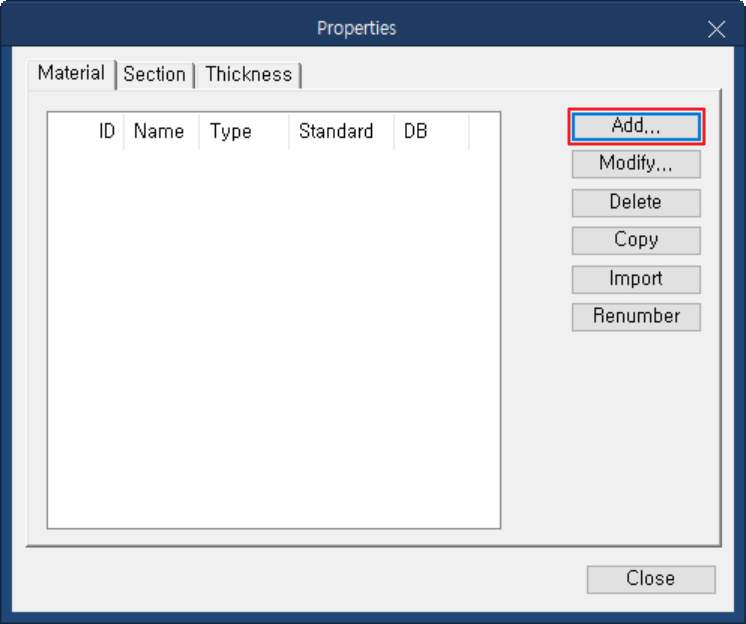

Property Tap > Material Properties > Add > Type of Design > Concrete



[Material Properties]

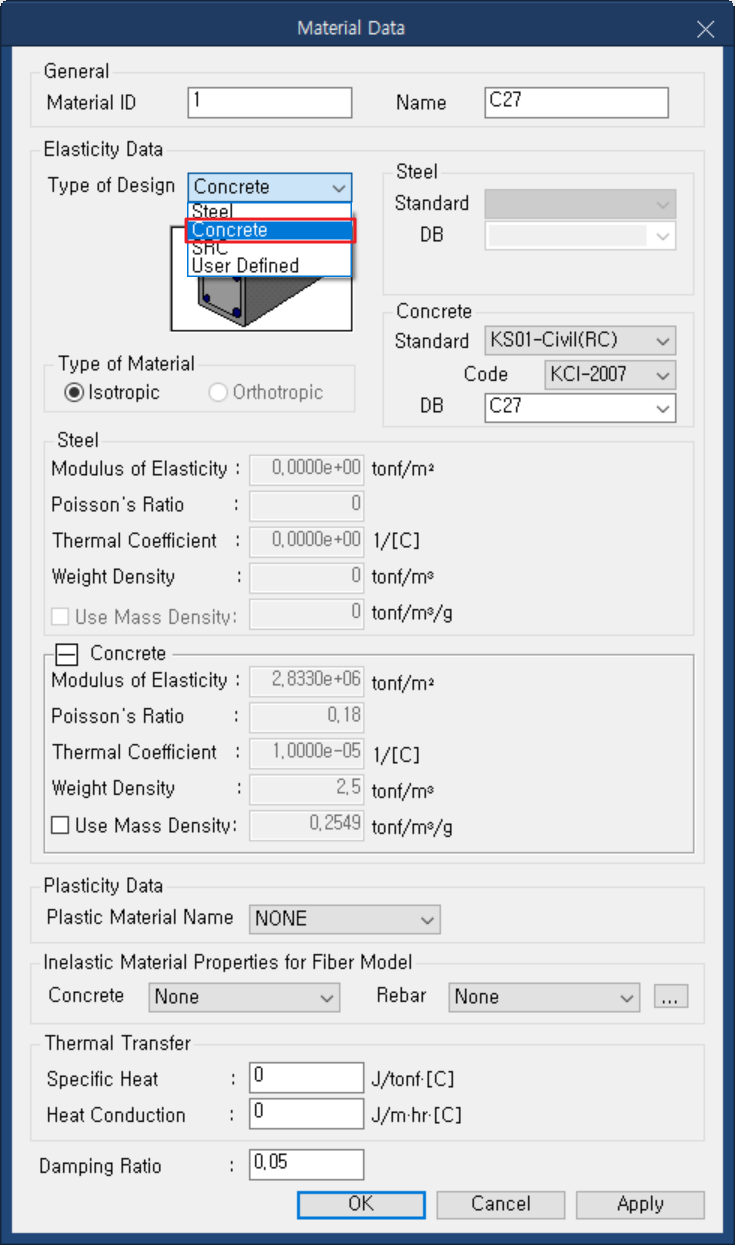

[Material Data]



If an arbitrary section is applied, use the Rebar Input for General Section function to input rebar information.

Seismic Perform > Capacity > Rebar Input Data > Rebar Input for Column Section...



[Section Data Dialog Box]

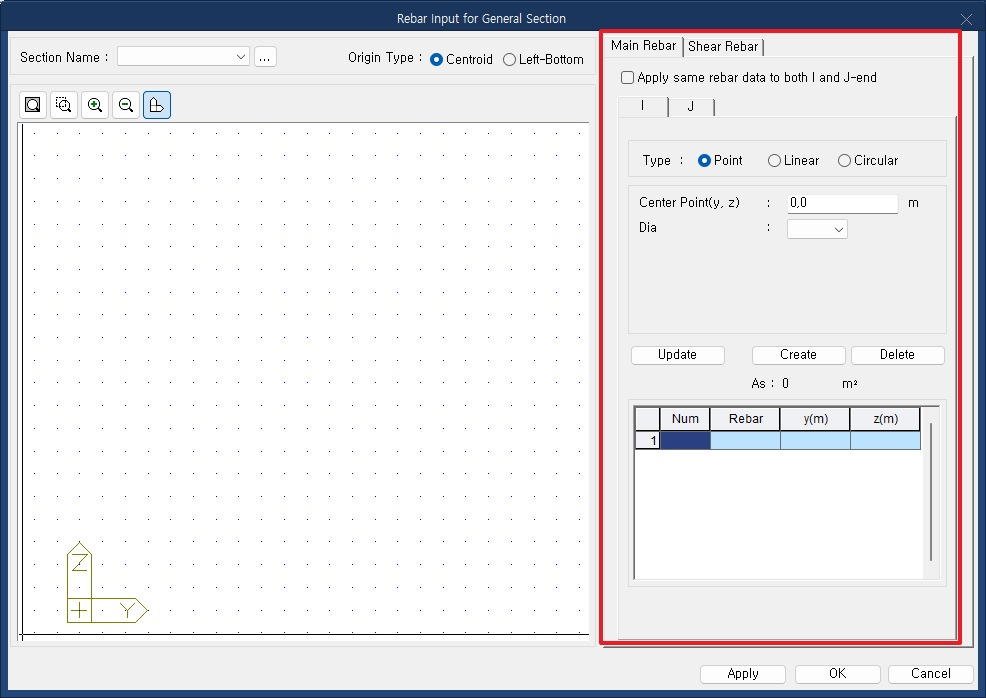

[Rebar Input for General Section Dialog Box]
