Question
Where can I check the attribute information of the section?
Answer
f you click a member, the Property window containing the section property information is activated.
You can check the information defined in the object as a summary in the Property (Common) window.
If you select the member of the model below, the property information of the section is displayed.

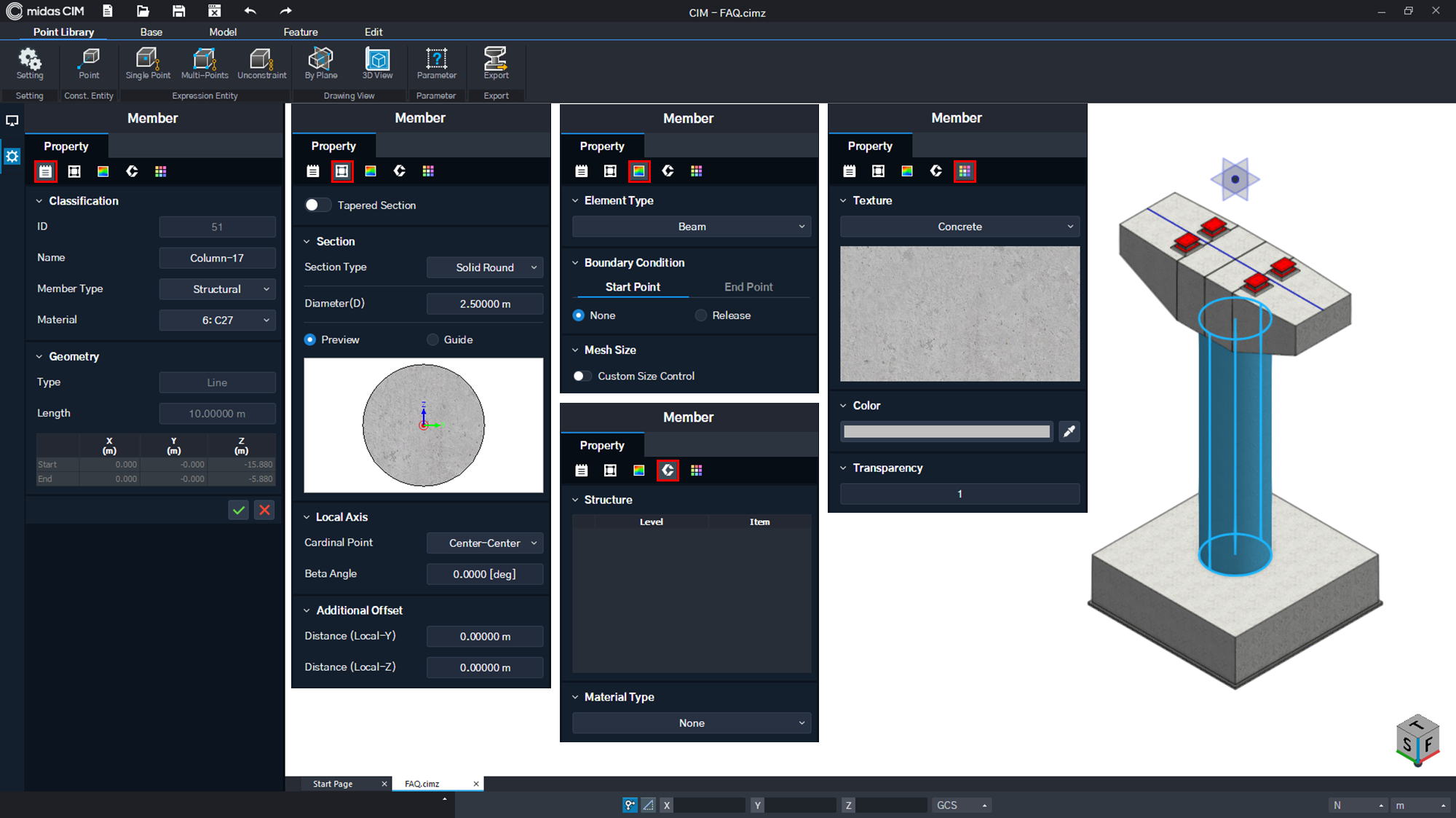

| Figure. 1 Property(Common) Dialog |
Property (Common) Function Maunal
ㆍObject Classification
Check the member name, structural/non-structural behavior, quantity calculation type, and material.
ㆍStructure Group (Group)
Designate the group to be set when creating an analysis model with CIVIL.
ㆍField
Based on the contents preset in the work type, it is classified into the field composition required
for the quantity calculation aggregation table.
Using the Work Type (Preliminary Step for Quantity Calculation)
ㆍGeometry information
It shows the type and coordinate information of the geometric shape, and when the coordinate
is changed, it is changed correspondingly.
ㆍSolid Geometry (Solid)
Shows the area or volume of a model of solid geometry. It is possible to check the approximate
quantity accordingly.
ㆍGraphic
The color and texture of the section can be displayed according to the classification.
Check the member name, structural/non-structural behavior, quantity calculation type, and material.
ㆍStructure Group (Group)
Designate the group to be set when creating an analysis model with CIVIL.
ㆍField
Based on the contents preset in the work type, it is classified into the field composition required
for the quantity calculation aggregation table.
Using the Work Type (Preliminary Step for Quantity Calculation)
ㆍGeometry information
It shows the type and coordinate information of the geometric shape, and when the coordinate
is changed, it is changed correspondingly.
ㆍSolid Geometry (Solid)
Shows the area or volume of a model of solid geometry. It is possible to check the approximate
quantity accordingly.
ㆍGraphic
The color and texture of the section can be displayed according to the classification.
