How do I load a library that has completed modeling in upper mode?
Answer
The completed library can be loaded through the Import function, and the Library can be assigned through the Assign function.
This function assigns the created library to alignment or assembly units, or imports and assigns to utilize an already created library.
ㆍCombined 3D Modeling can be created by importing multiple libraries into one file and
assigning them.
ㆍWhen an Assembly Unit is imported, the Point Library & Curve Library list assigned to the
model is also imported.
1. Import(Point Library)

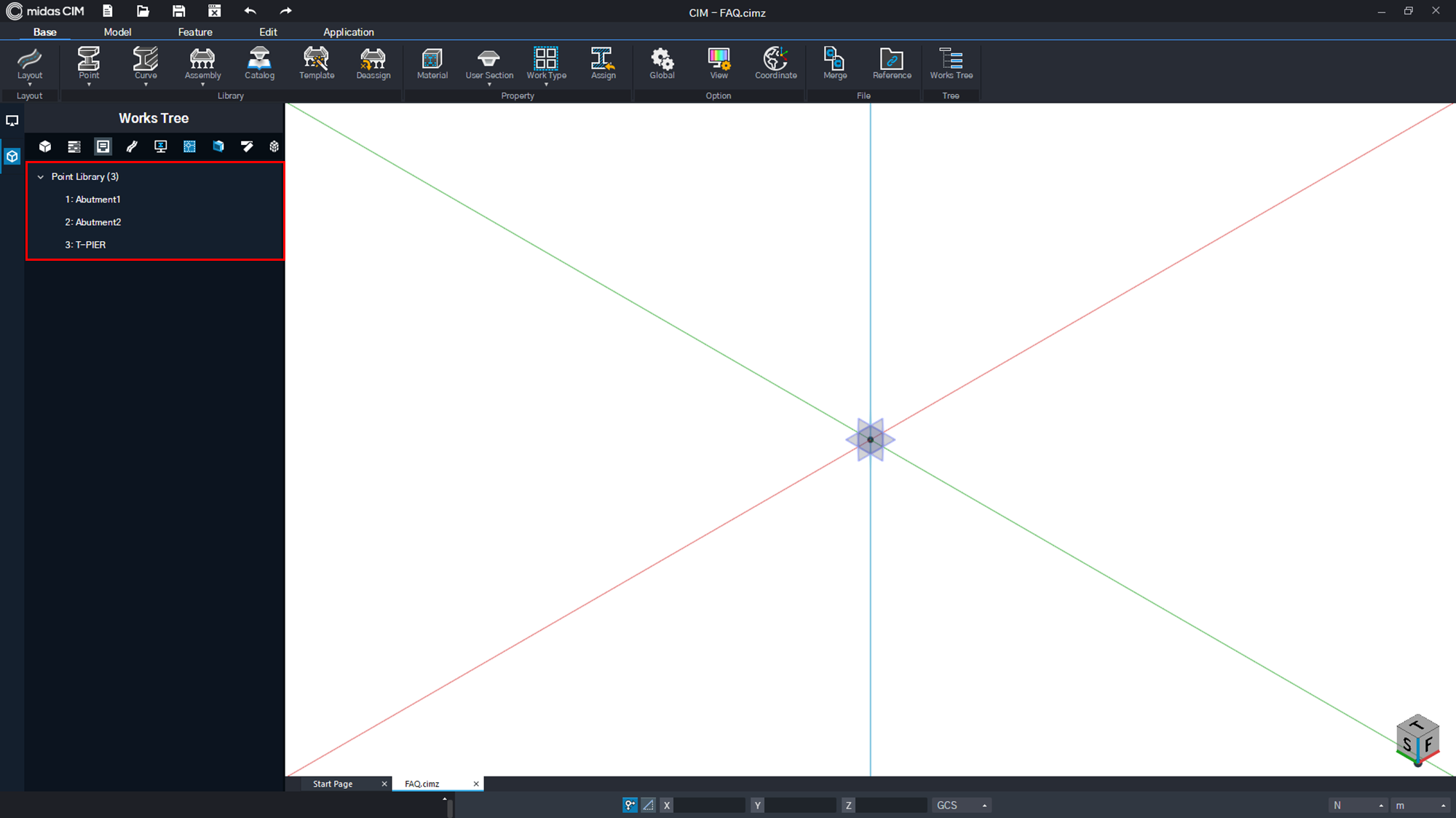

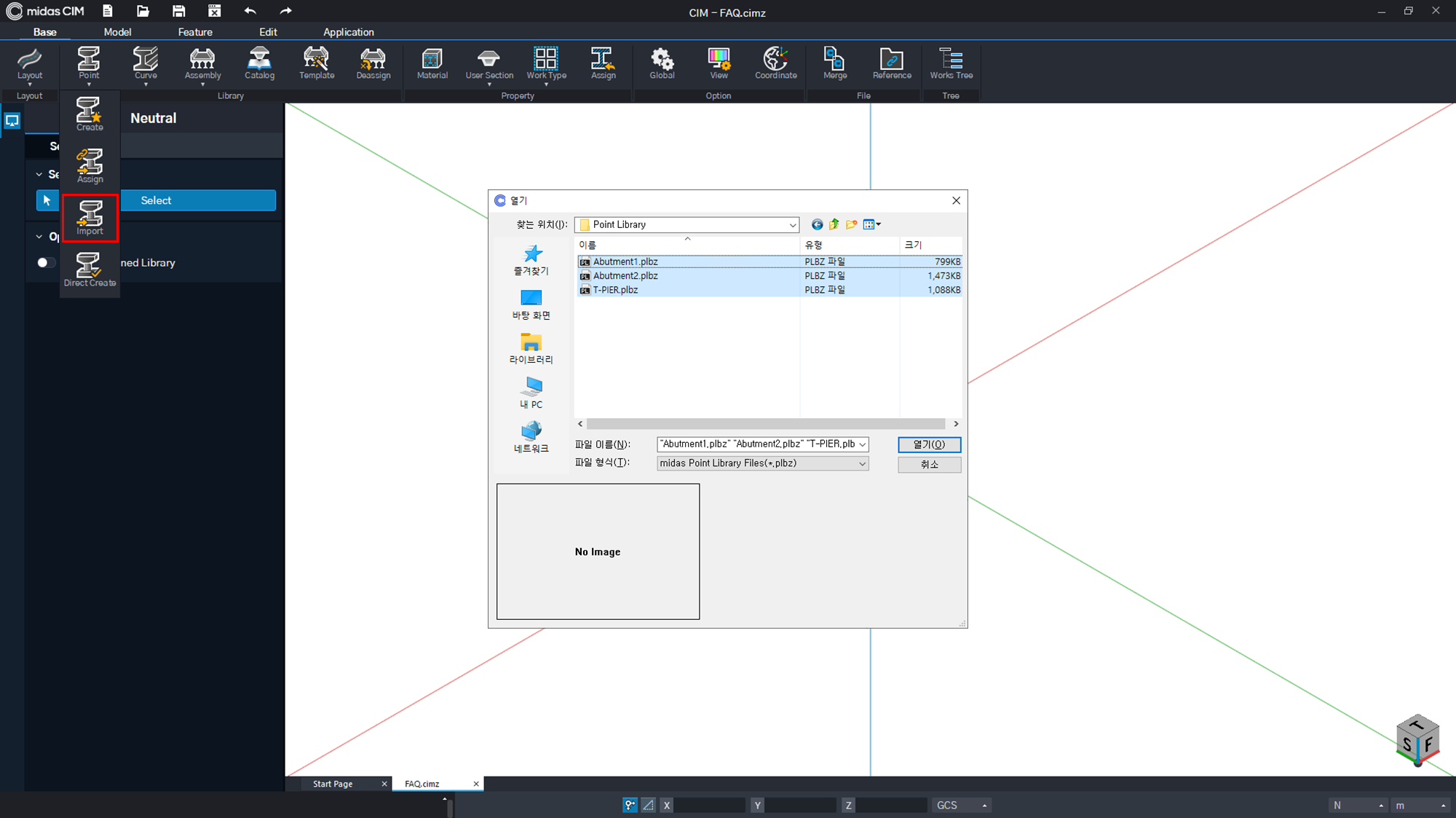

| Figure. 1 Point Library Import | Figure. 2 Check Point Library through WorkTree/modify |
2. Import(Curve Library)
| Figure. 3 Curve Library Import | Figure. 4 Check the Curve Library through WorkTree/modify |
3. Import(Assembly Unit)

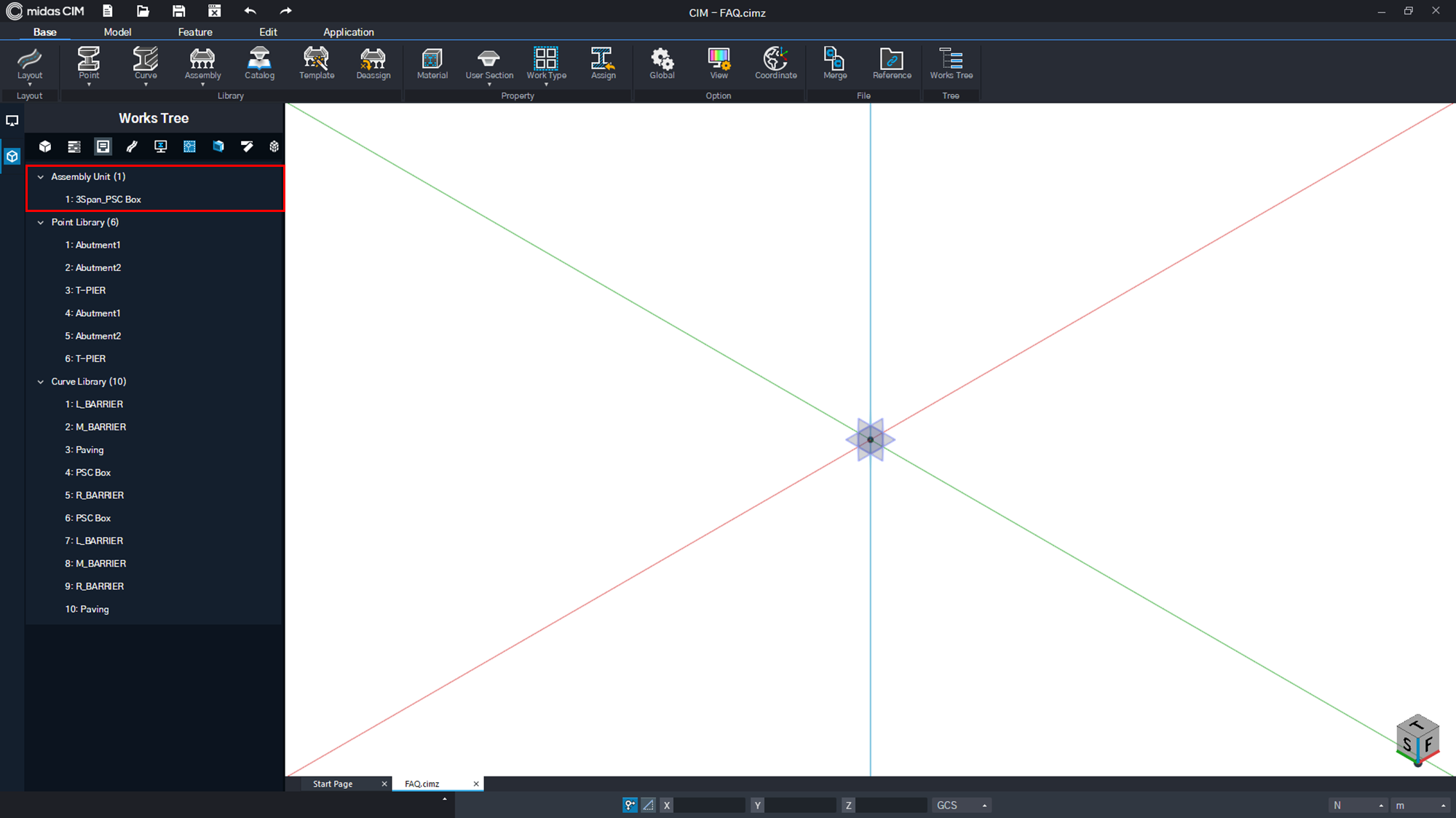

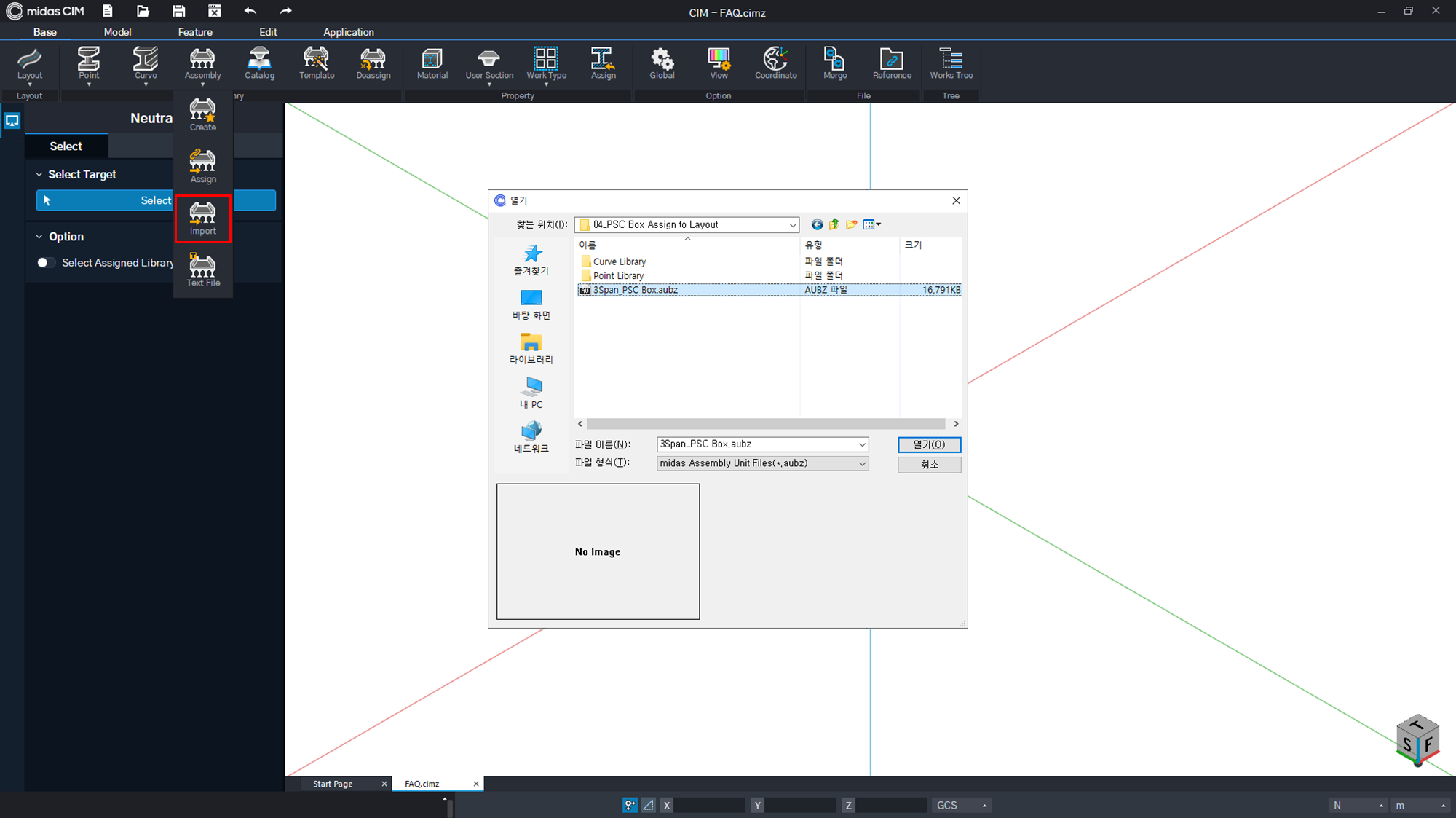

| Figure. 5 Assembly Unit Import | Figure. 6 Check Assembly Library through WorkTree/modify |
4. Assign to Assembly Unit

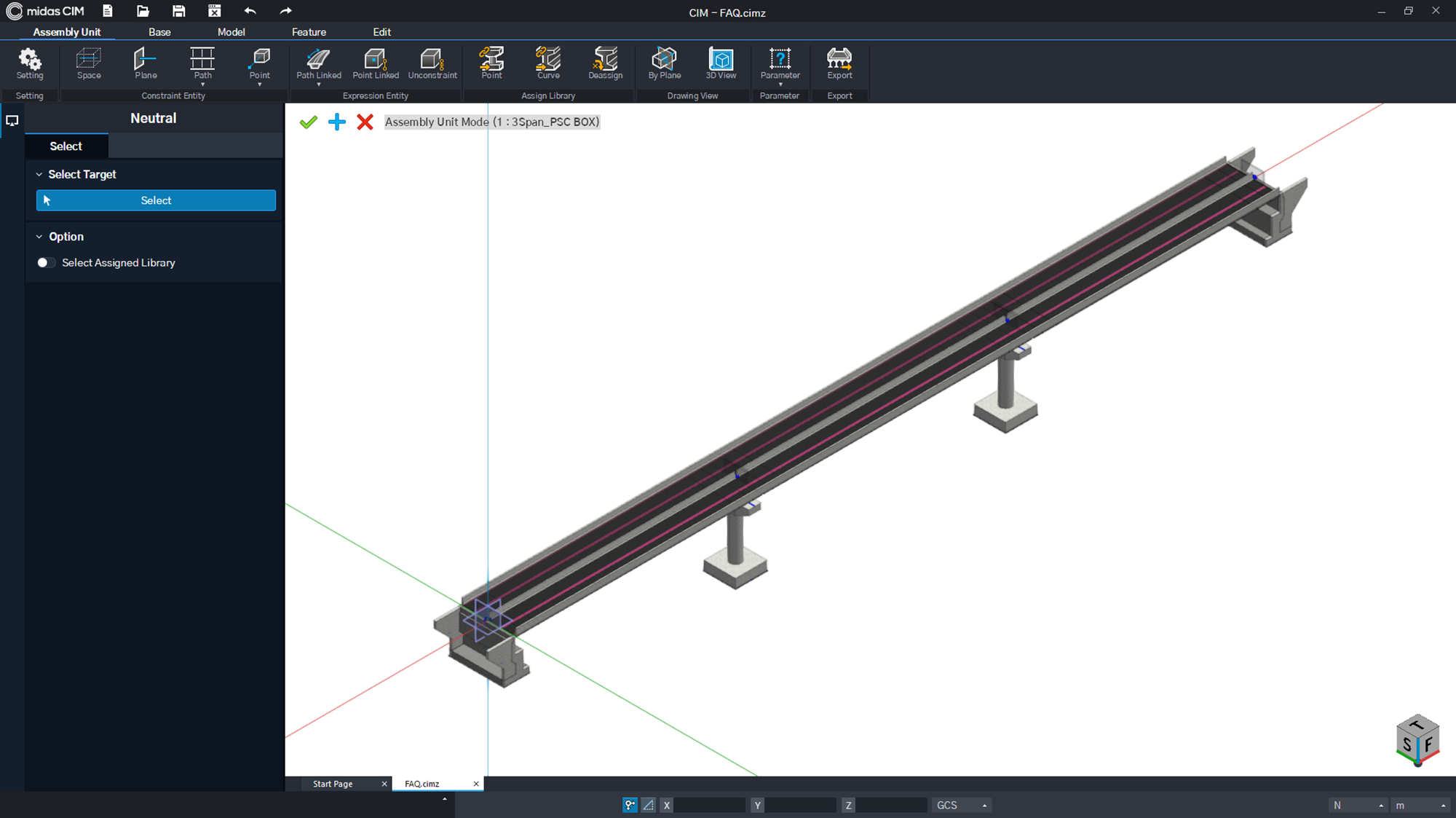

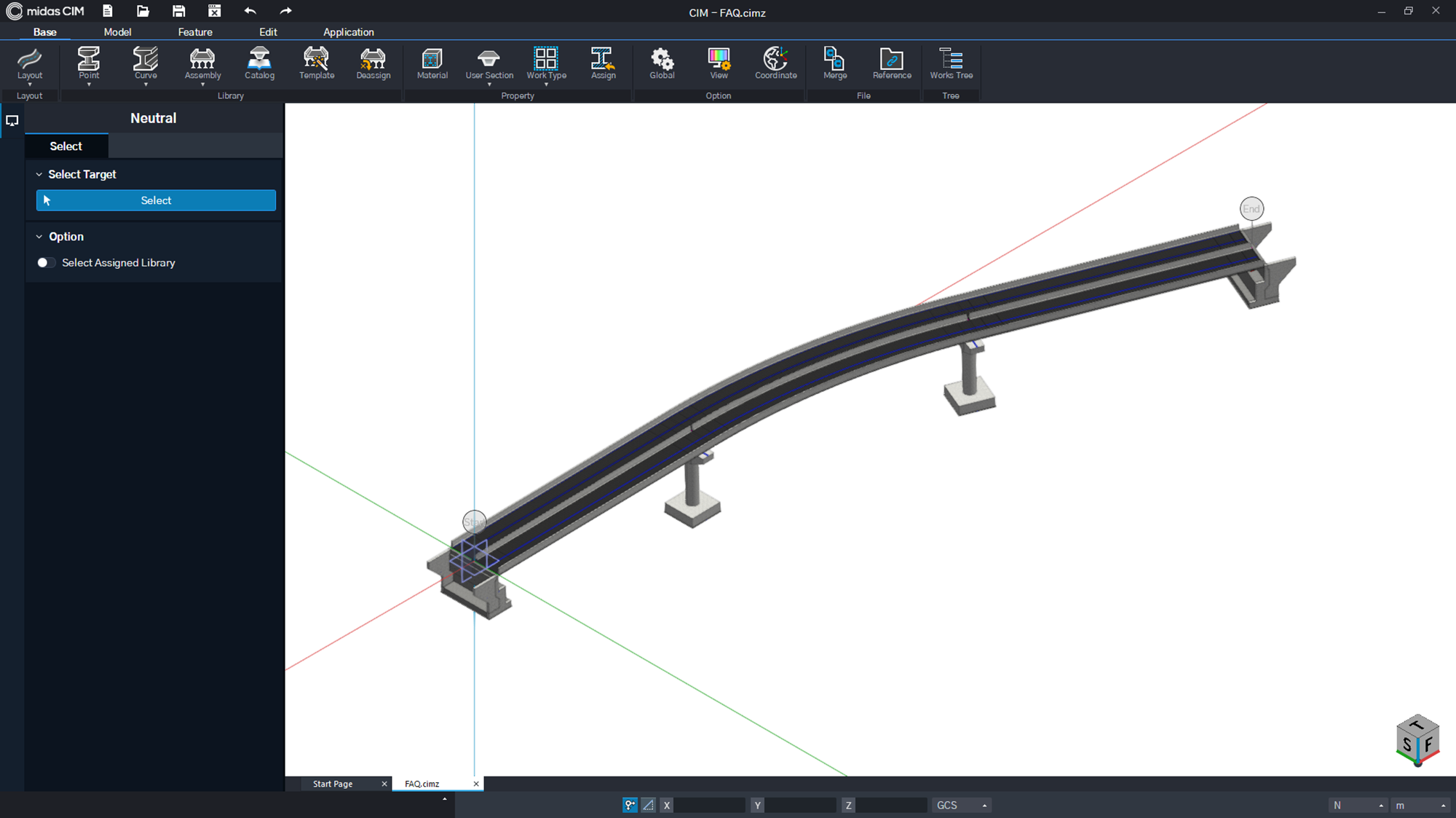

| Figure. 7 Assembly Unit assembled by allocating after importing Point Library & Curve Library | Figure. 8 After import of Point Library & Curve Library & Assembly Unit, 3D modeling completed by alignment assignment |
ㆍYou can create an Assembly Unit by importing / assigning Point Library & Curve Library
in Assembly Unit Mode .
ㆍCombined 3D Modeling can be created by Importing / Assigning Point Library or
Curve Library or Assembly Unit in Base Mode .
