[CIM/Infor-Base] Application of Variation Type of Member Element

Question

I want to change the lengthwise shape of the Member element.



Answer

It can be applied through the Shape Variation tab of the Property (Shape) window.



Info

It is a function to define the longitudinal section change shape.
Let's take a look at the example below.
The section change shape for each option is as follows.

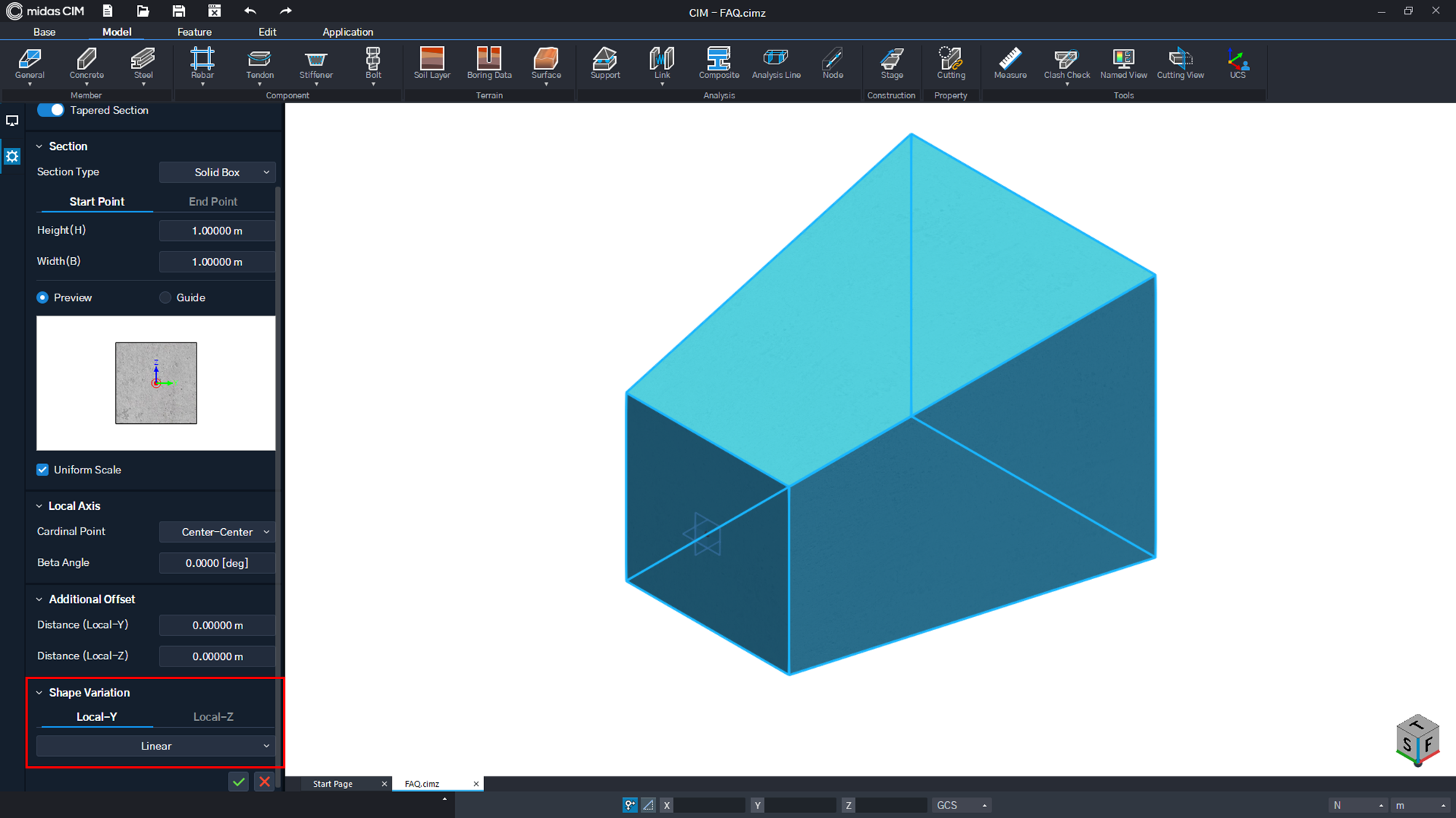

Figure. 1 Alignment Figure. 2 Parabolic

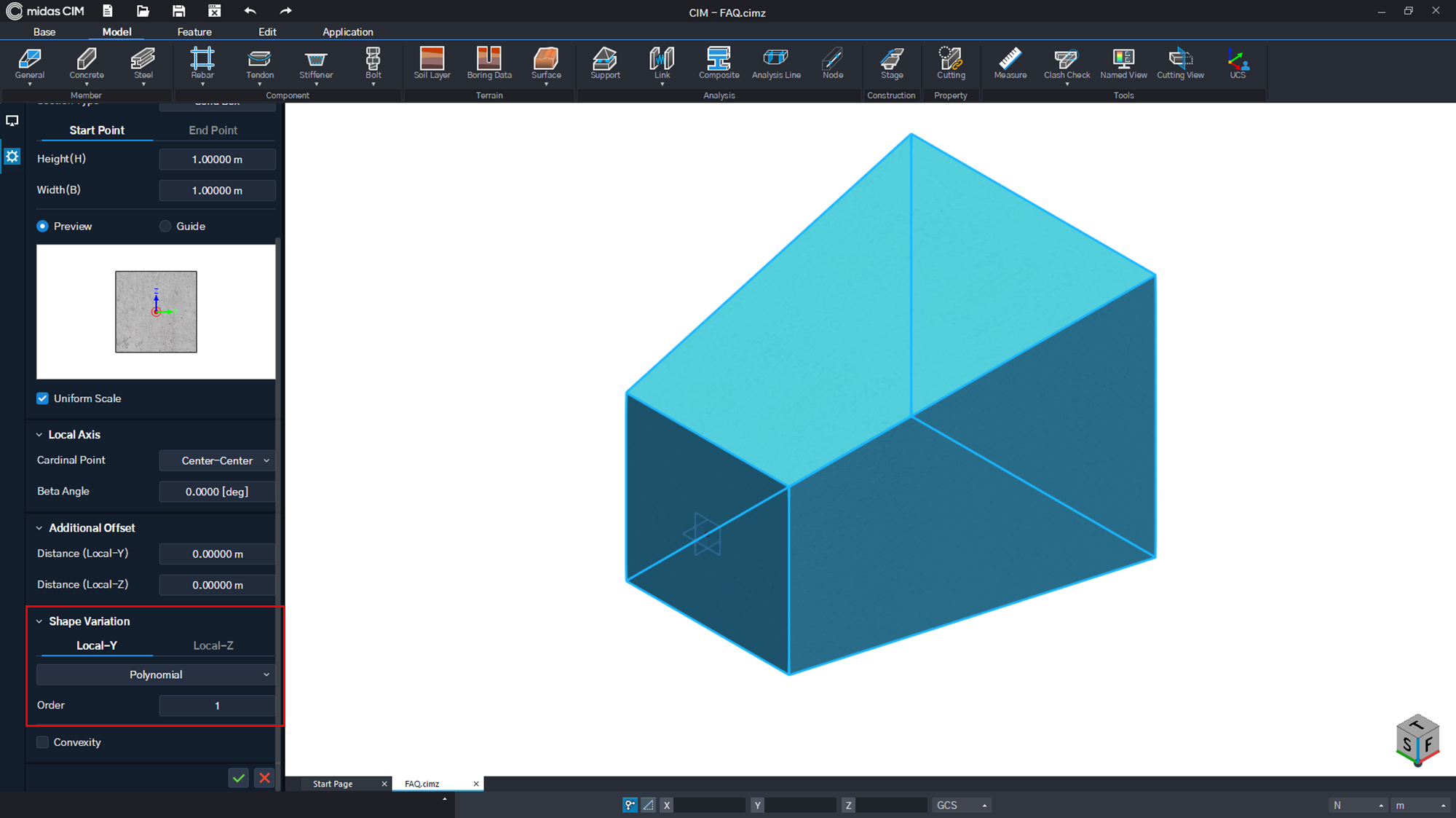

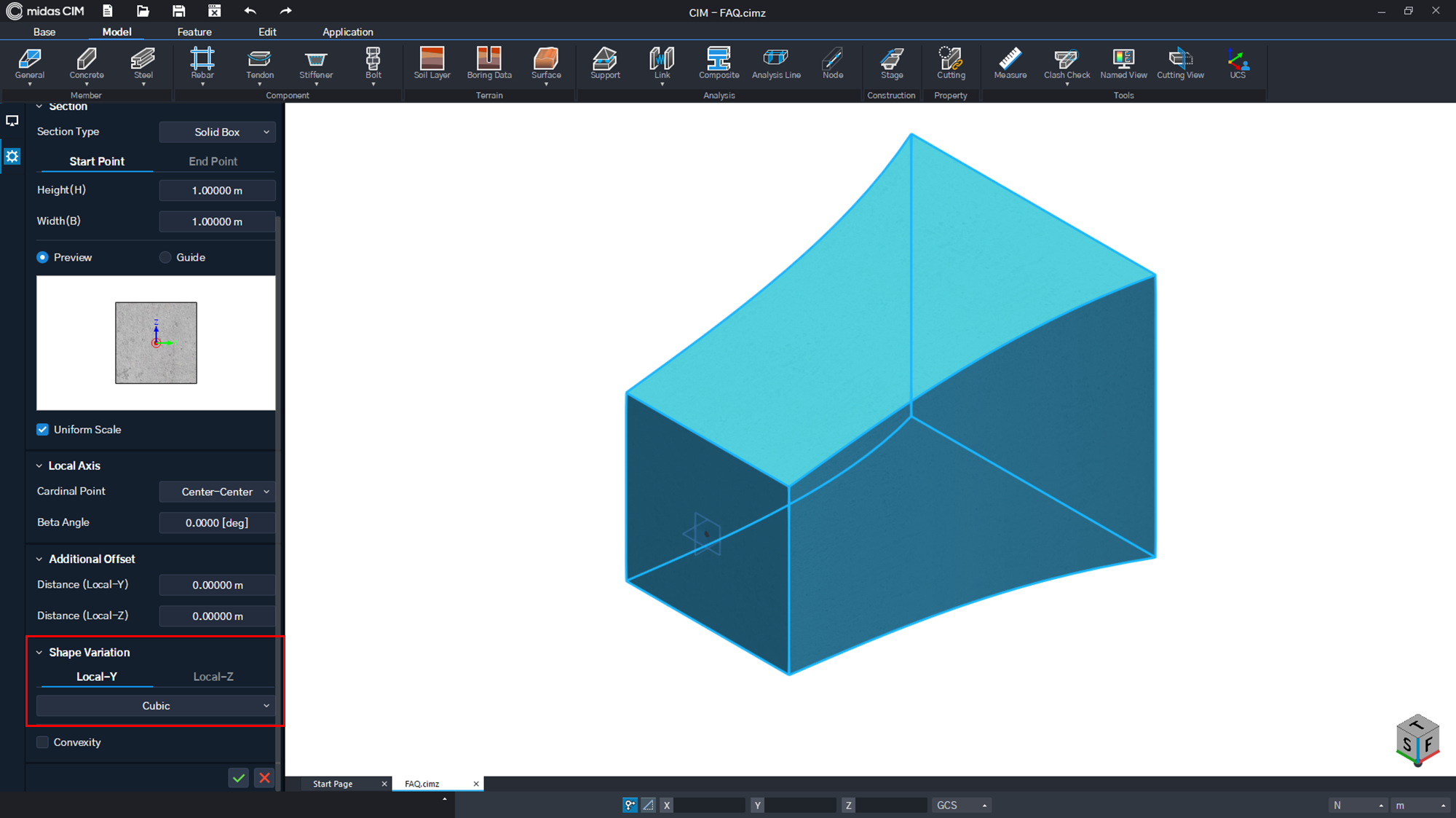

Figure. 3 Cubic Figure. 4 Polynomial(primary)




Figure. 5 Arc
