Question
I want to change the interpretation line of the Member element.
Answer
It can be applied through Cardinal Point in the Property (Shape) window.
Info
his function determines the position of the analysis line when interlocking with analysis.
Let's take a look at the example below.
The section change shape for each option and the location of the analysis line are as follows.

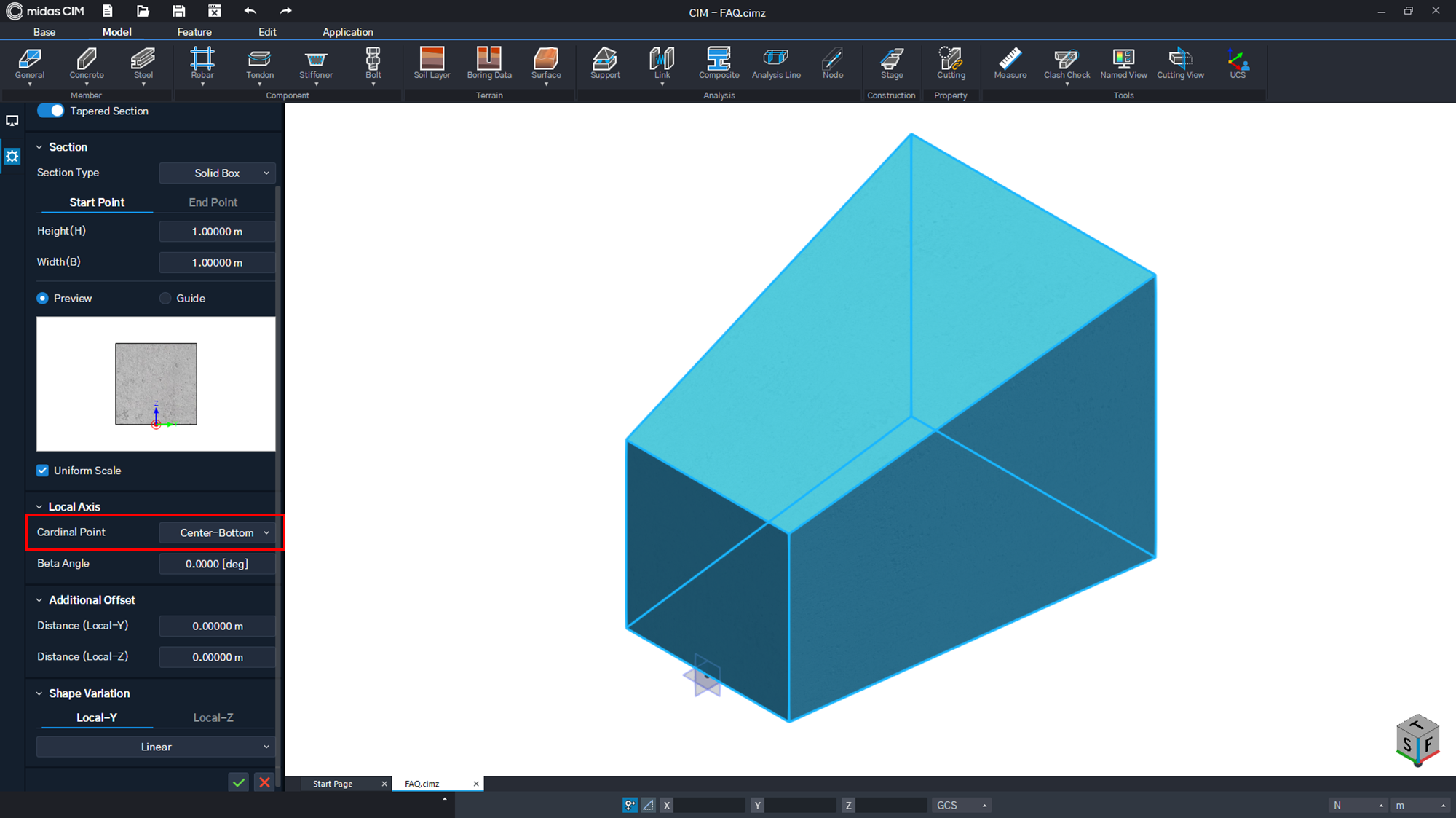

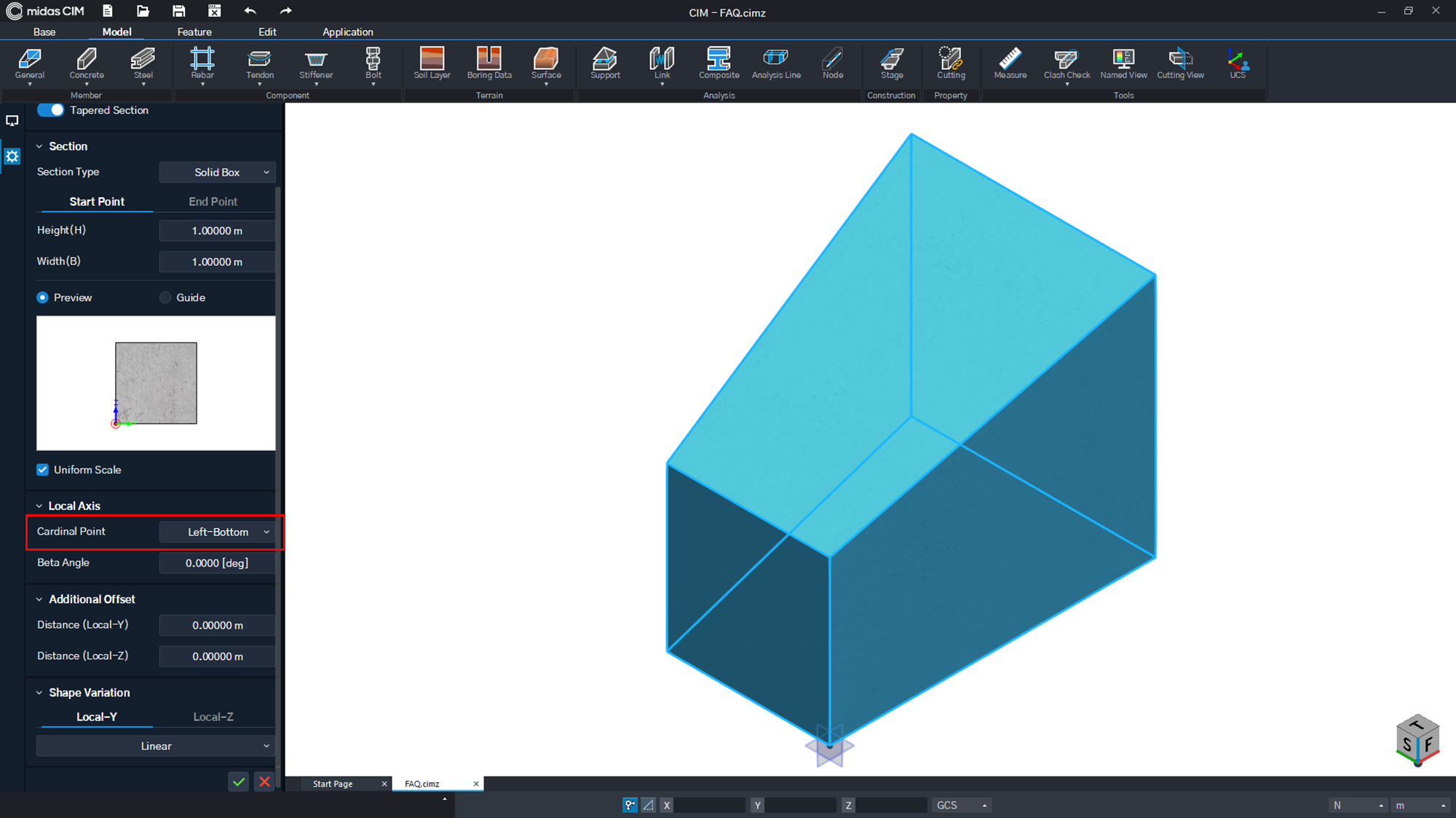

| Figure. 1 Left-Bottom | Figure. 2 Center-Bottom |

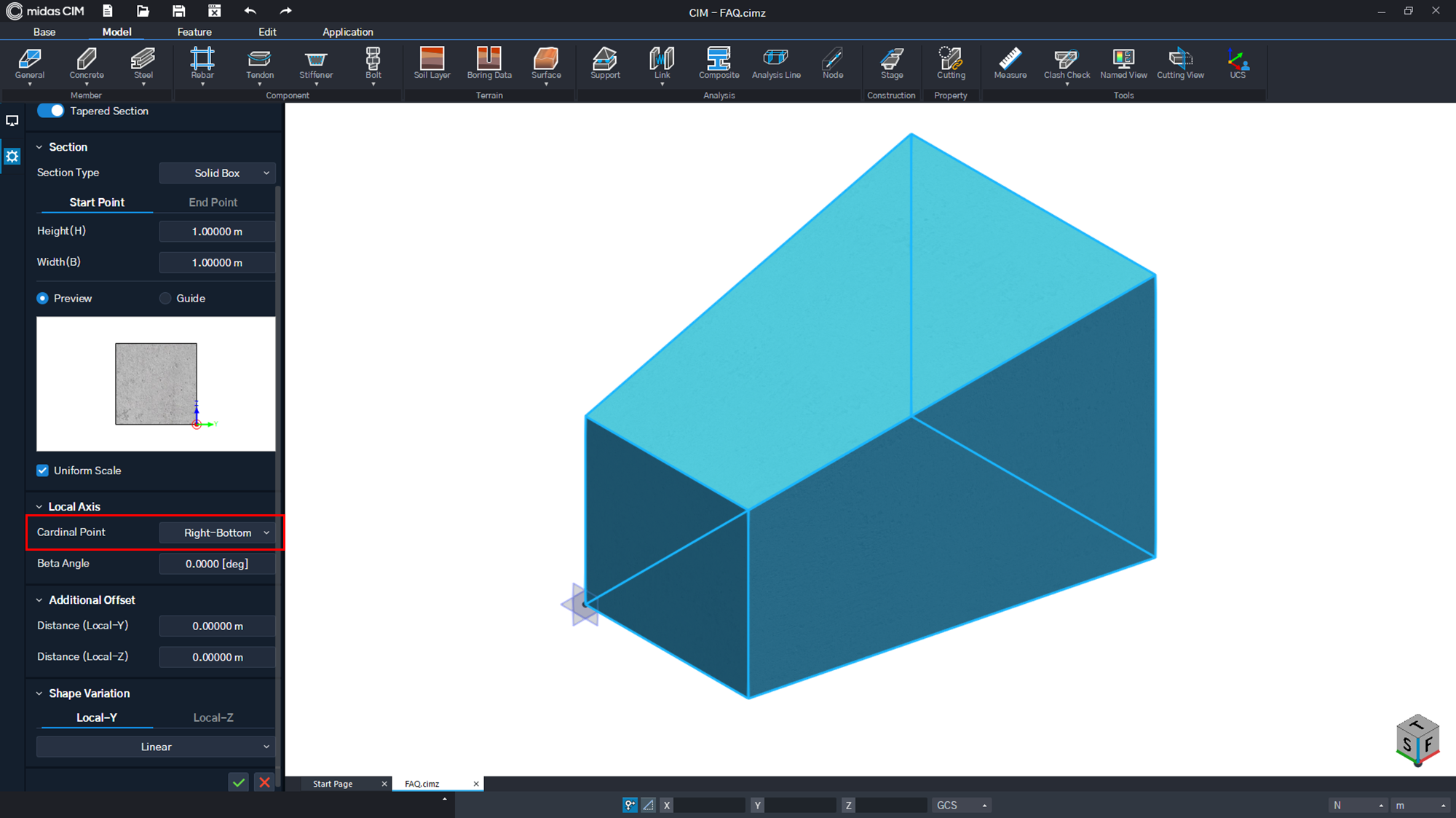

| Figure. 3 Right-Bottom |

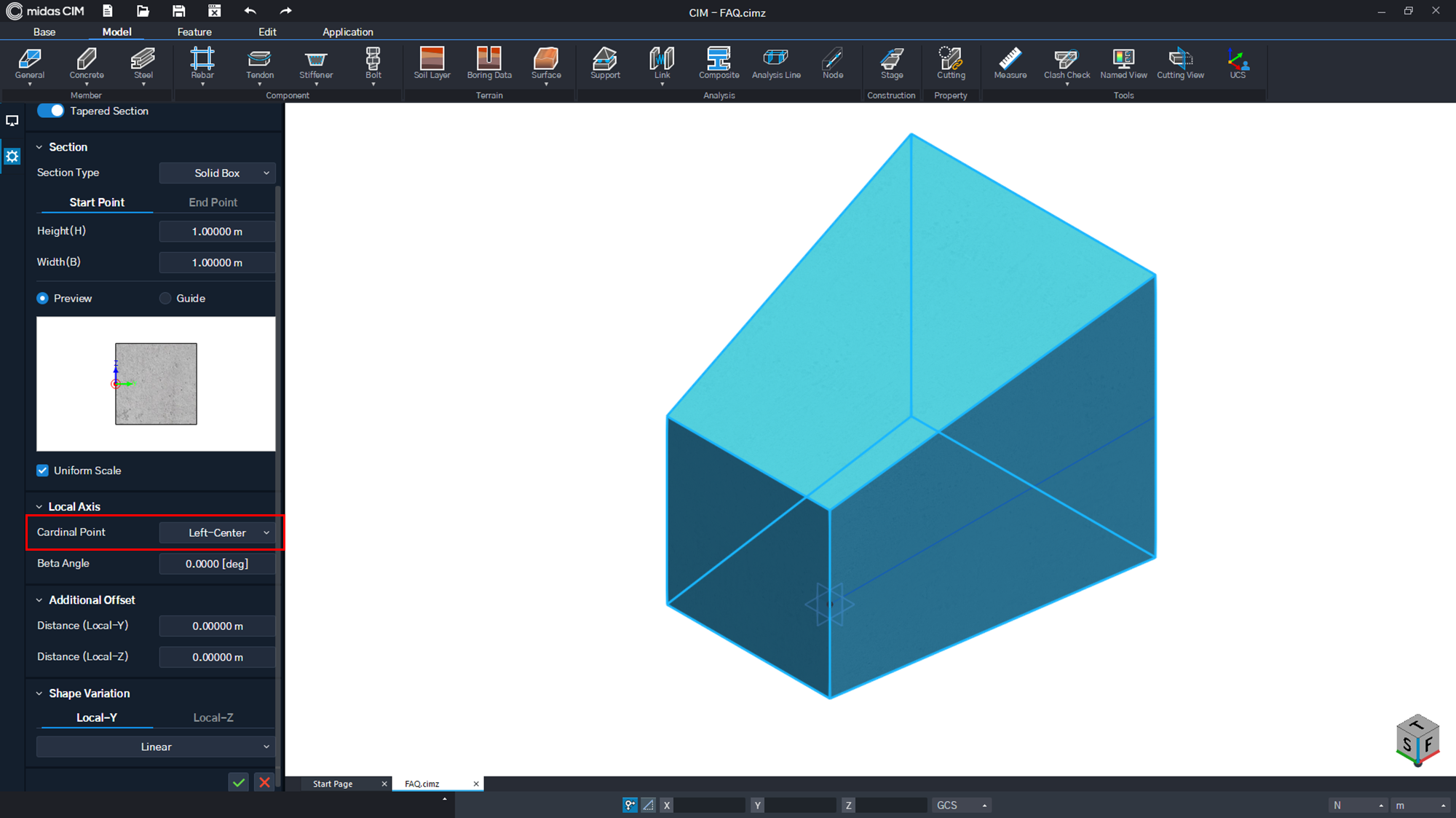

Figure. 4 Left-Center |

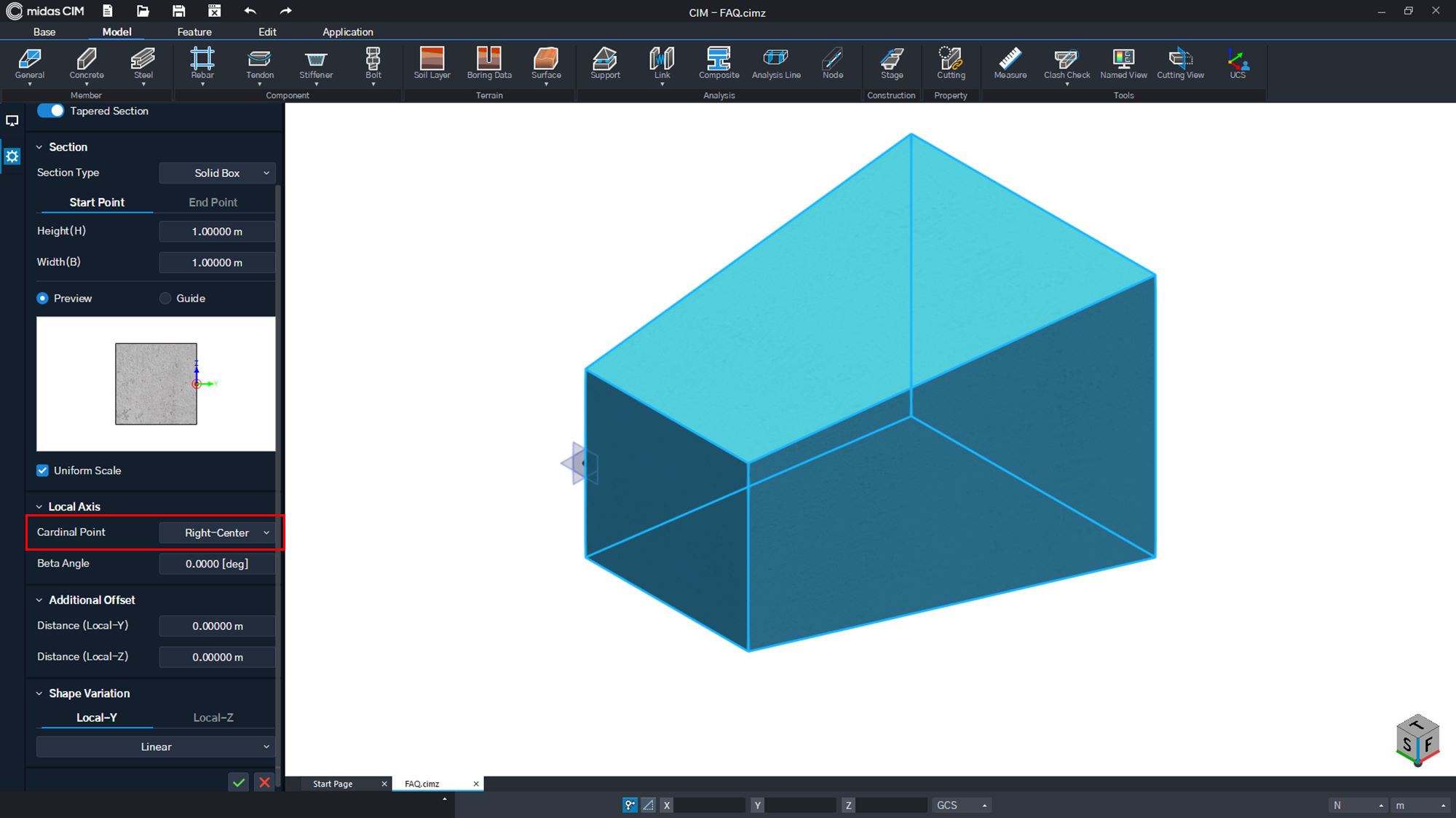

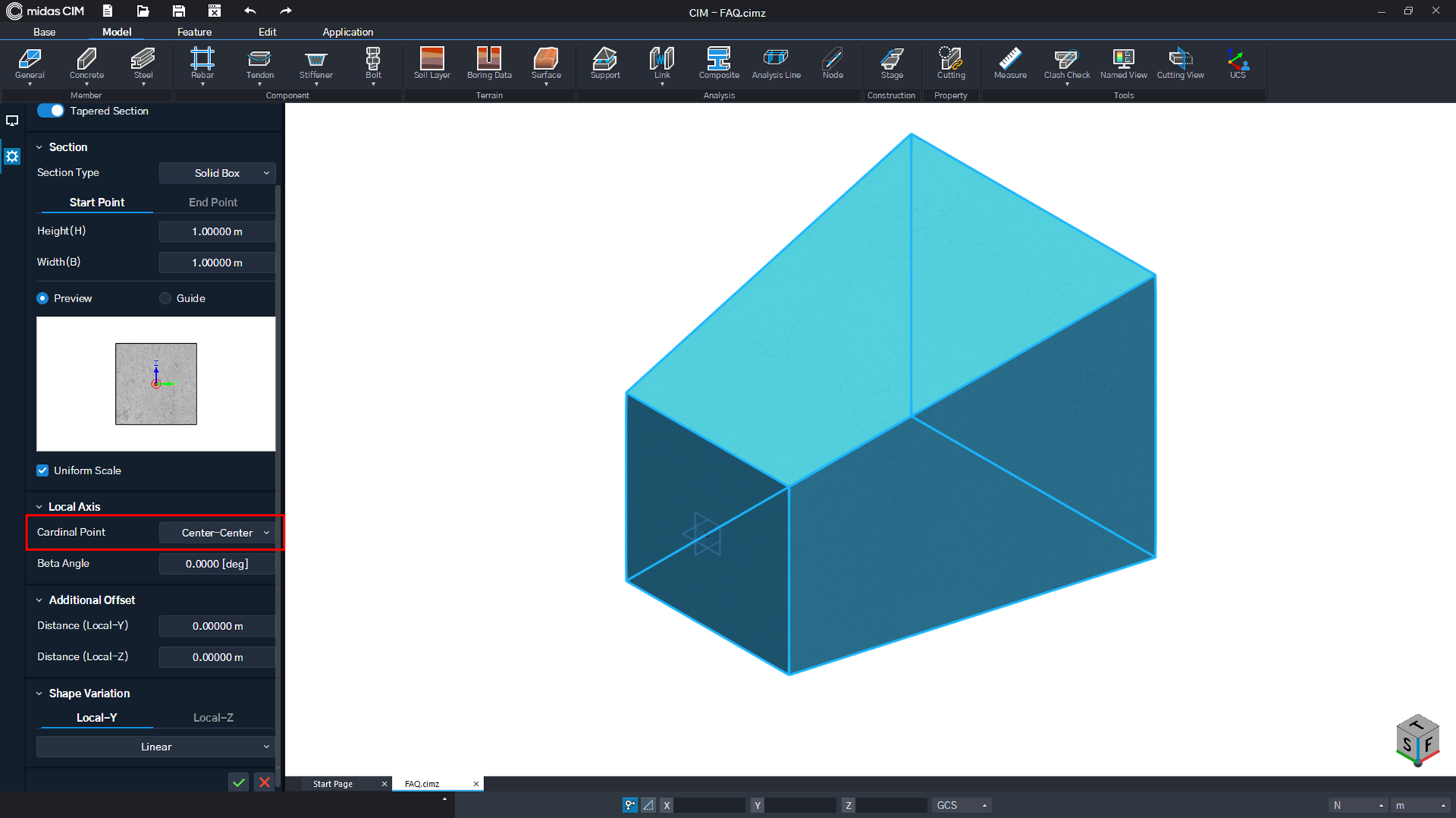

| Figure. 5 Center-Center | Figure. 6 Right-Center |

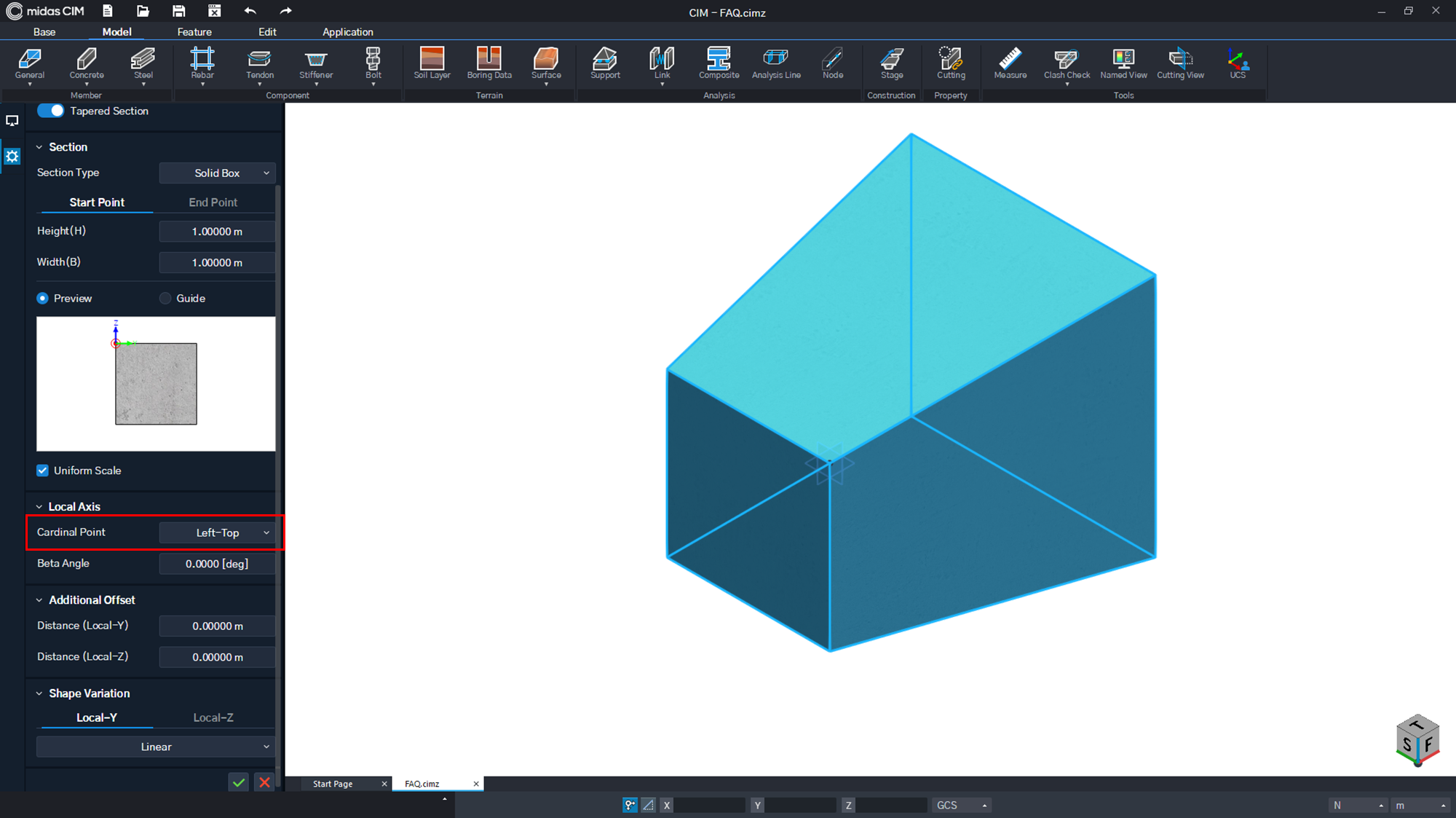

| Figure. 7 Left-Top | Figure. 8 Center-Top |

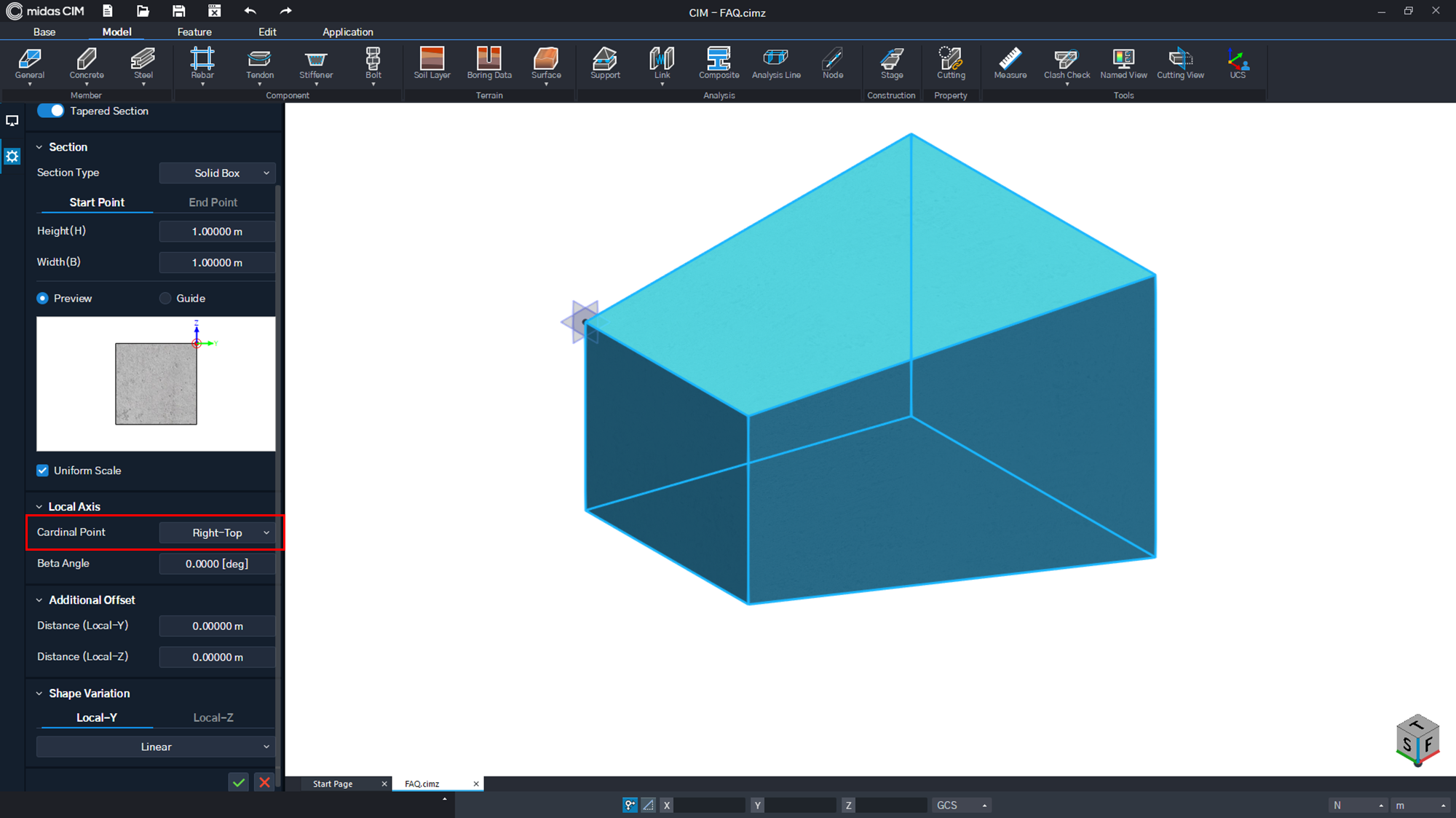

| Figure. 9 Right-Top |
Info
Slab / Wall / Plate elements, we only support Bottom/ Center / Top
