[CIM/Feature & Edit] Using a 1D Edit Chamfer

Question

I would like to apply chamfer/fillet to the edge of the object.



Answer

Use the Edit tab under Edit Edge > Chamfer to perform the operation.



Info

ㆍChamfer or fillet is applied to the geometry edge of a 1D object (wire or 1D member)
    or a 2D object (surface and 2D member).

ㆍFor separated edges, the feature operates by selecting each edge, and for continuous edges.
    (Poly Line or surface edges), both edges and vertices can be selected.

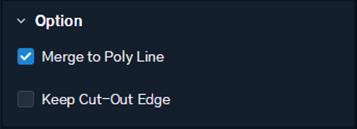

ㆍFor separated edges, continuous objects are formed when the Merge to PolyLine option
    is checked under Options. For continuous edges, a continuous edge is formed regardless
    of whether or not the Option is checked.


Continuous Chamfer / Fillet

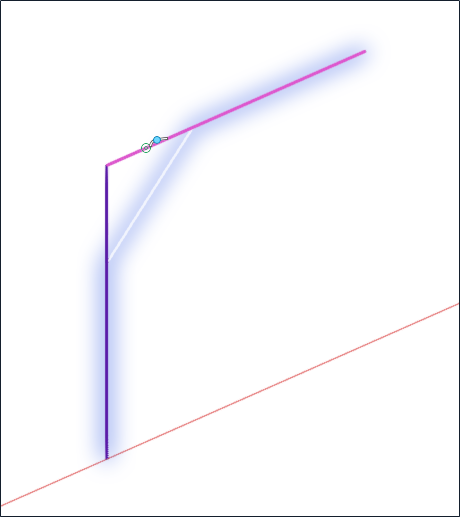

Figure. 1 Discrete 2 Edge

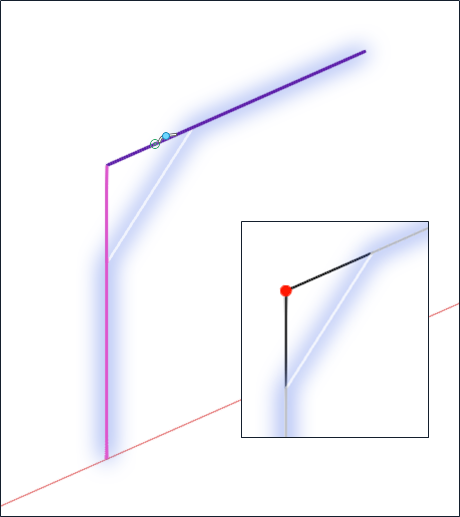

Figure. 2 Poly Line(Wire)

ㆍSelect two edges to create
ㆍCreate as separate objects
ㆍConvert to a continuous object when Merge to Polyline is checked

ㆍSelect either the two edges or a vertex to create
ㆍCreate as a continuous object

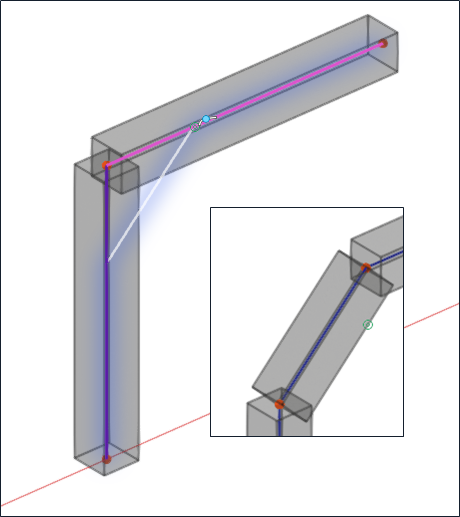

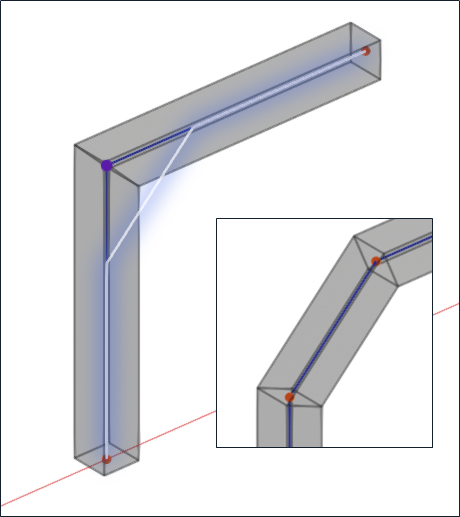

Figure. 3 Discrete 1D Beam Figure. 4 Merged 1D Beam

ㆍSelect the two edges or a vertex to create
ㆍCreate as separate objects
ㆍConvert to a continuous object when Merge to
Polyline is checked

Select either the two edges or a vertex to create
Create as a continuous object

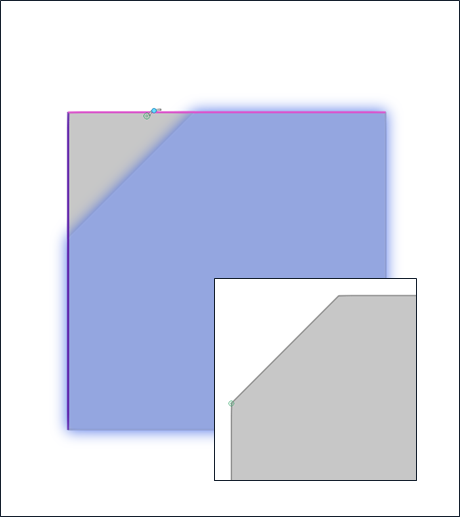

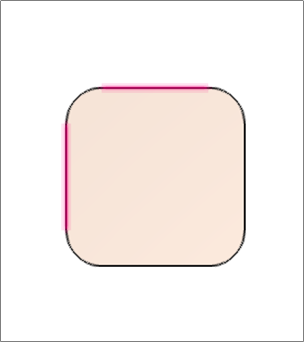

Figure. 5 Face Edge
ㆍSelect either the two edges or a vertex to create

Non-Continuous Chamfer / Fillet

image-20191001-031305.png image-20191001-031308.png
Figure. 6 Disconnected Edge
image-20191001-031318.png image-20191001-031322.png
Figure. 7 Disconnected 1D Beam
Figure. 8 Disconnected 1D Beam (Cannot be created)
