[CIM/Analysis] How to use the Export (Analysis case) feature

Question

I would like to extract the analysis model as an mct file.



Answer

In the Analysis Mode, the object can be created as an Analysis case and then exported through Analysis > CIVIL under the Application tab.



The feature selects a case, among the many analysis cases defined in the Analysis Mode, that is used in the analysis model and exports it as an external (*.mct) file.
Let’s look at the example below.

Tips

1) Select Define under Analysis Case > Define.
2) Select the member to export in the Define tab.
   → 1D / 2D Member & Link elements can be selected.
   → When exporting to an analysis file, 1D members are linked to 1D frame elements
       and 2D members are linked to 2D plate elements.
   → The Plate Line defined in the User Section of the 1D member can be linked to a
       2D Plate member.
3) Defines the element division when analyzing 1D/2D Members.
   → Provides the (Division / Length) option.
4) Select CIVIL under Application > Analysis > CIVIL.
5) Select an Analysis Case from the Analysis Case List.
   → An Analysis Case is defined as a Case when all or some modeling is selected and analyzed.
6) A *.mct file is created for CIVIL integration.


Example of exporting a 1D Member

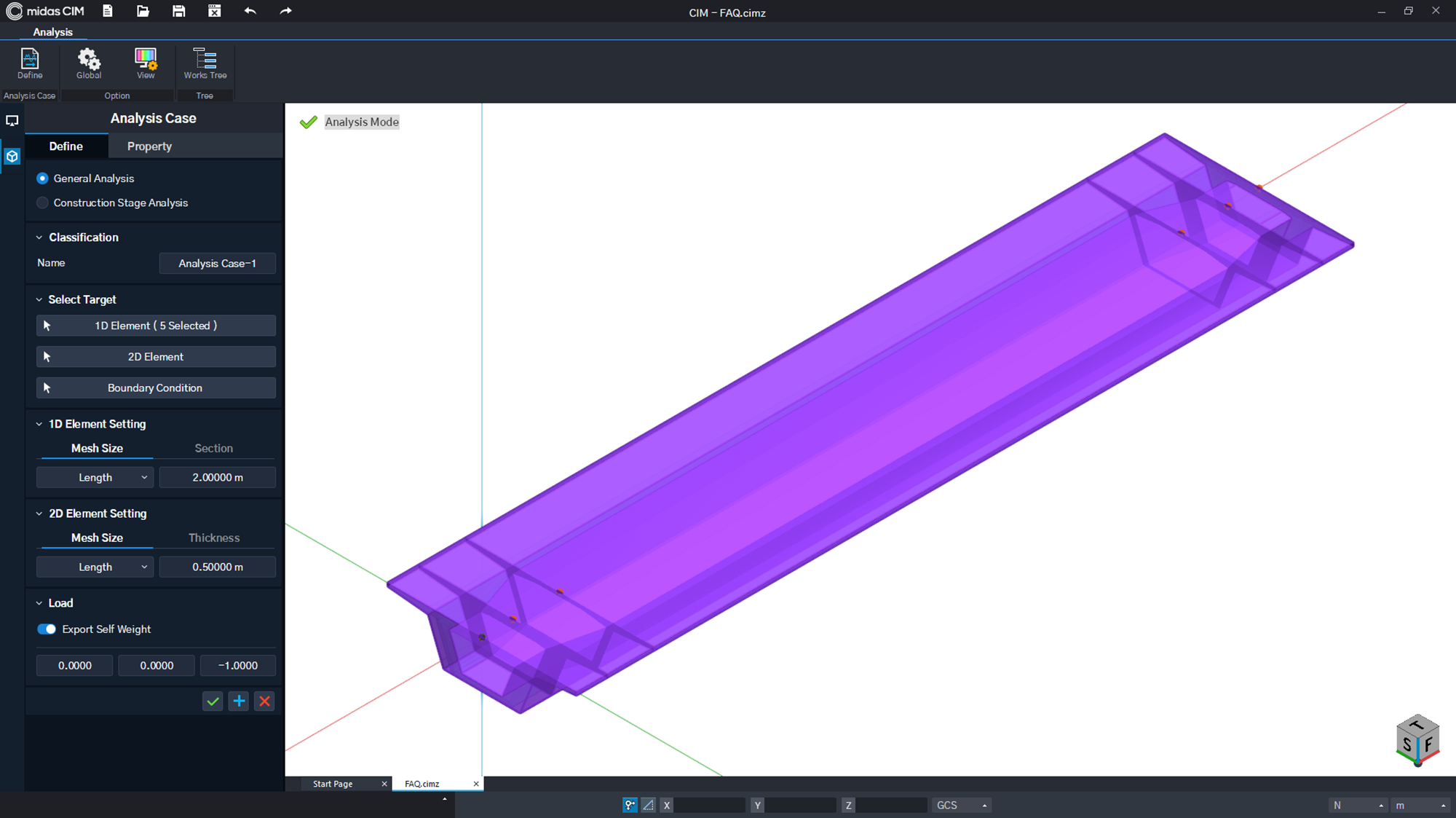

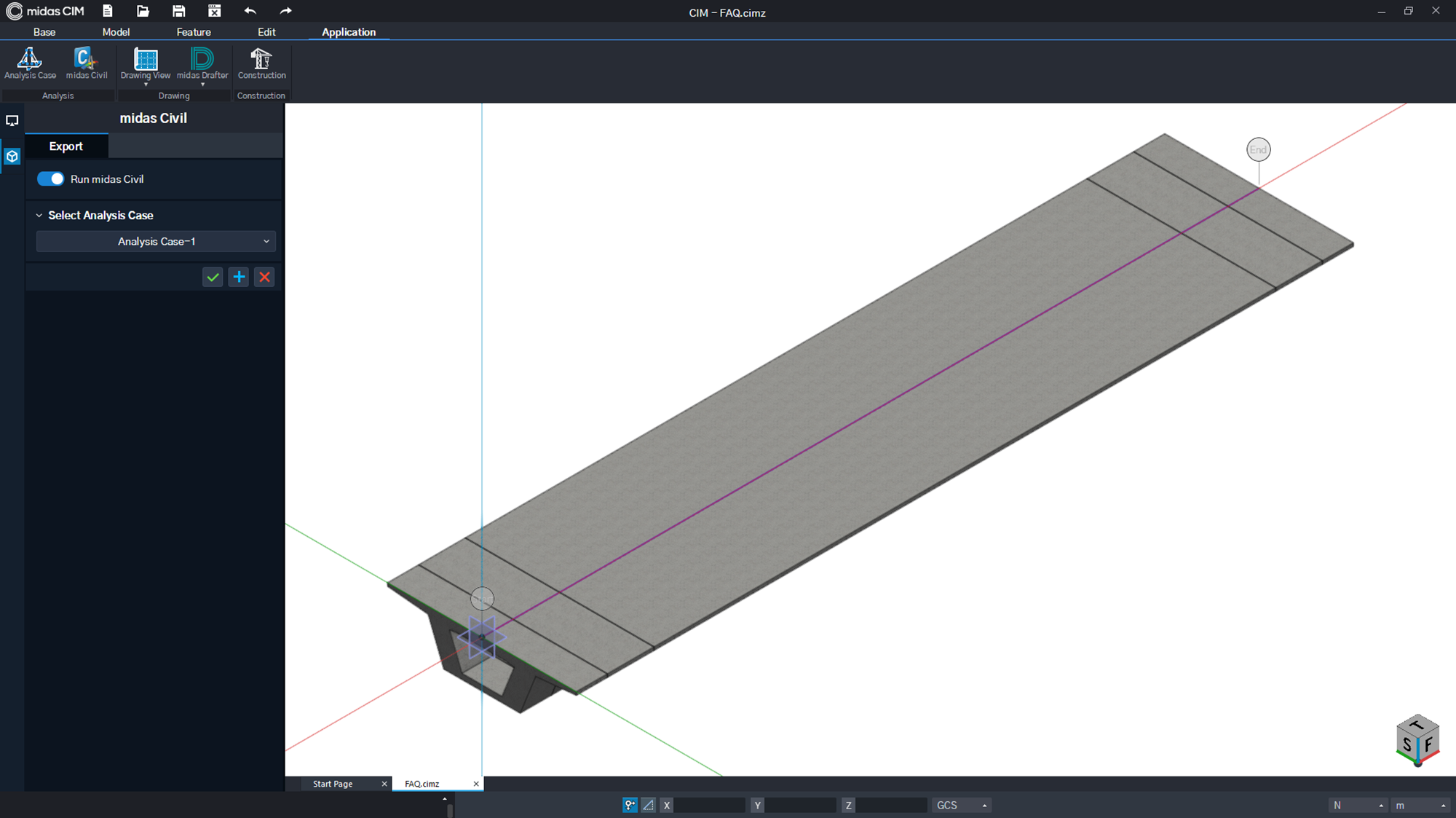

Figure. 1 Base > Application > Analysis Case > Define Figure. 2 Base > Application > CIVIL

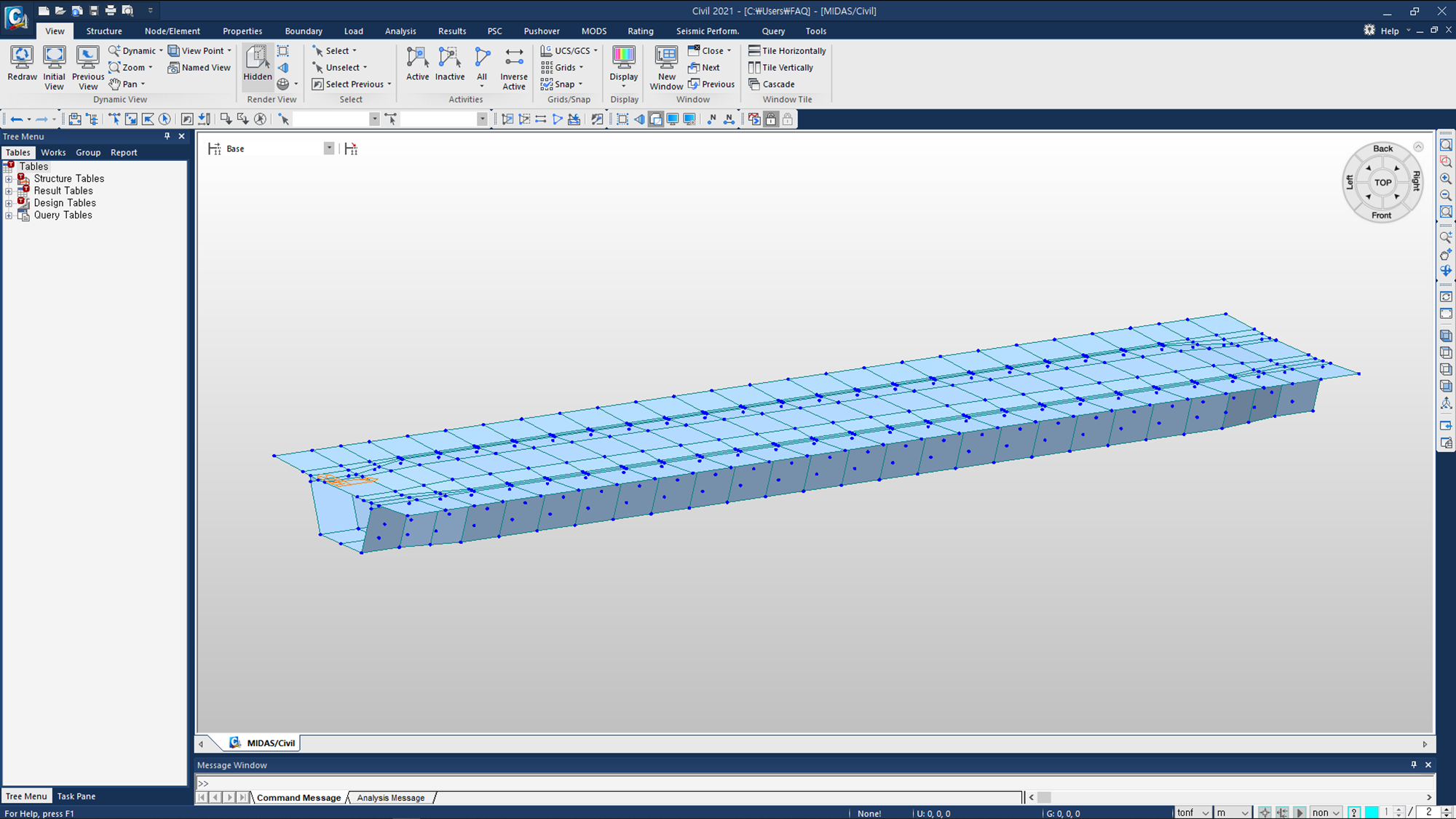

Figure. 3 MCT → CIVIL (1D element)


The thickness can be set according to the changes in the section when setting the Plate Line.


Example of exporting a 2D element using the Plate Line of a 1D Member - Tapered Thickness Check On

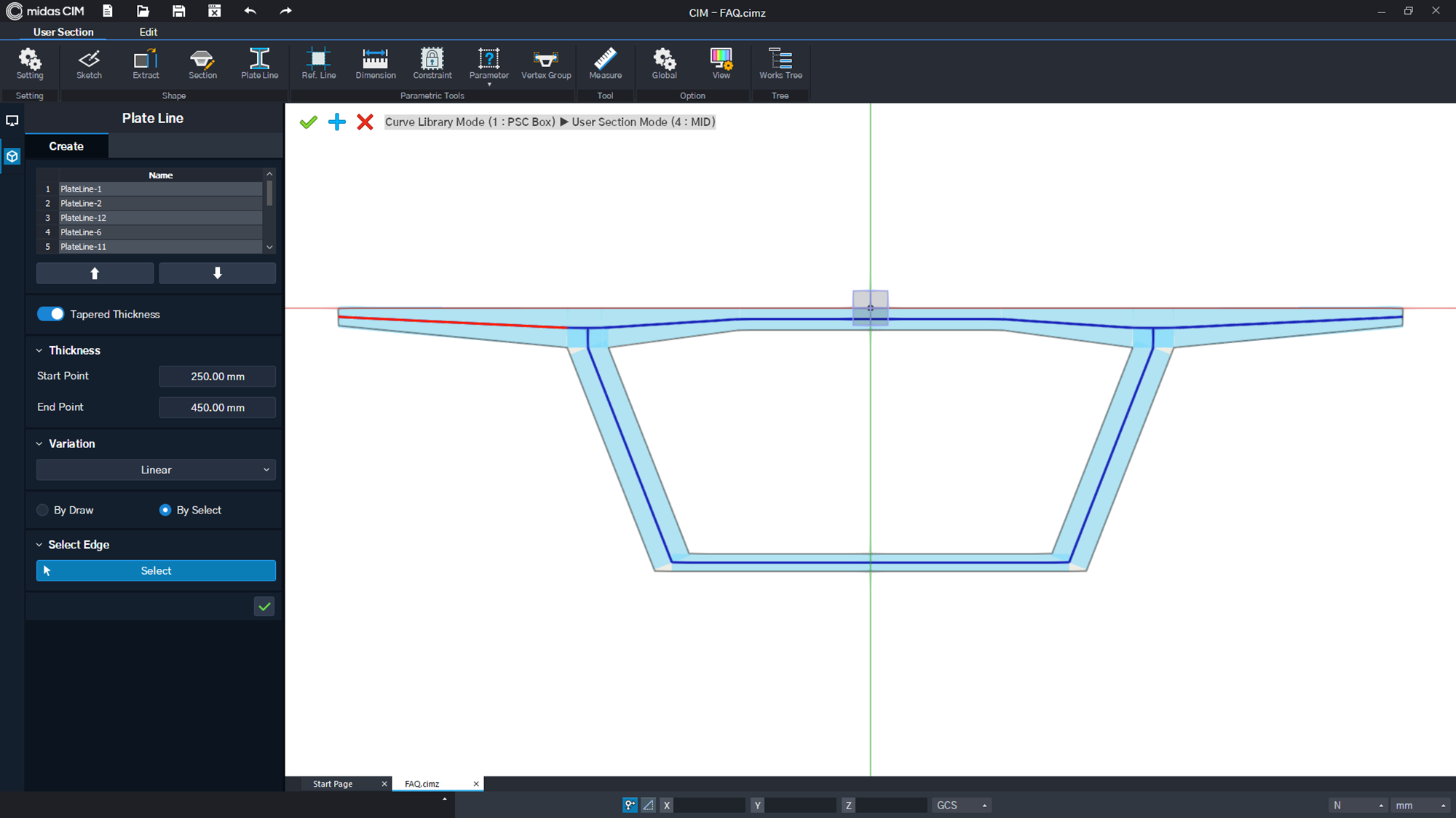

Figure. 4 User Section > Plate line setting
(Tapered Thickness Check On)

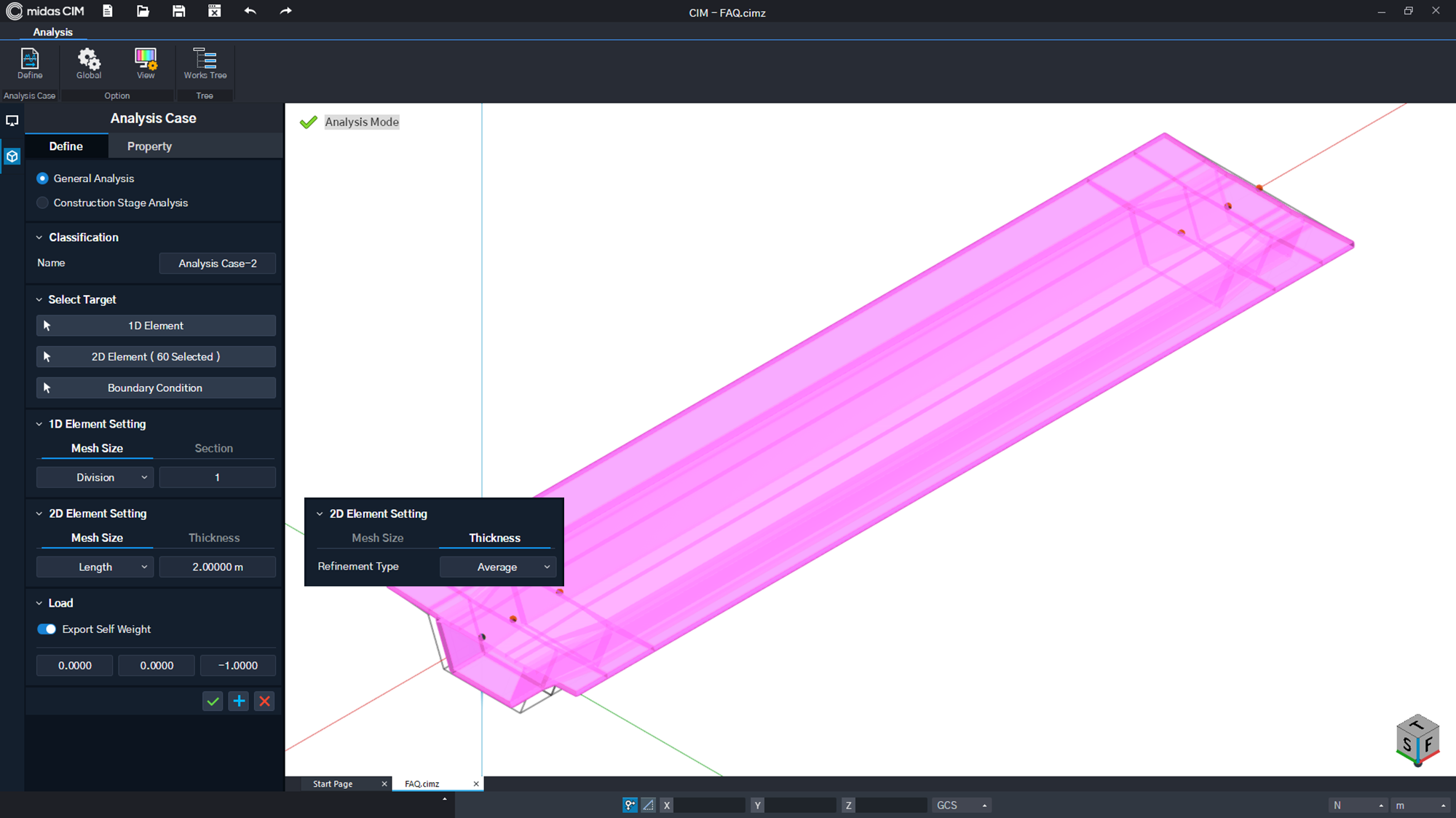

Figure. 5 Base > Application > Analysis Case > Define

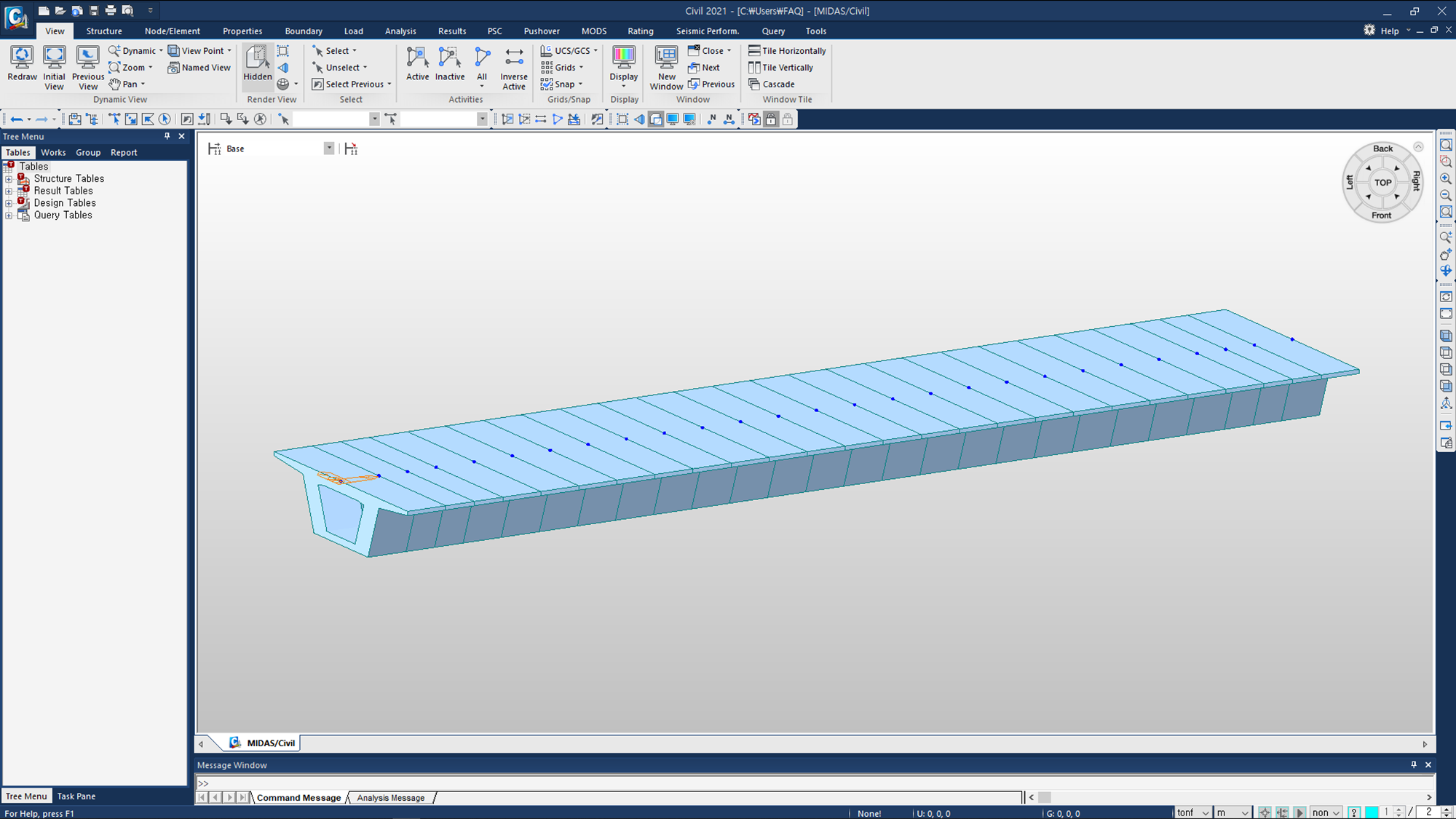

Figure. 6 MCT → CIVIL (2D elements)
