Question
How do I create a 3D drawing?
Answer
You can use the 3D View Tool, which sets the 3D drawing linkage based on the arbitrary angle seen on the screen using the model created in CIM.
This is the process of drawing in the CAD environment by linking the 3D drawing information of the section created in CIM-3D View with CAD INFRA-DESIGN.
For example, the following operations are possible.

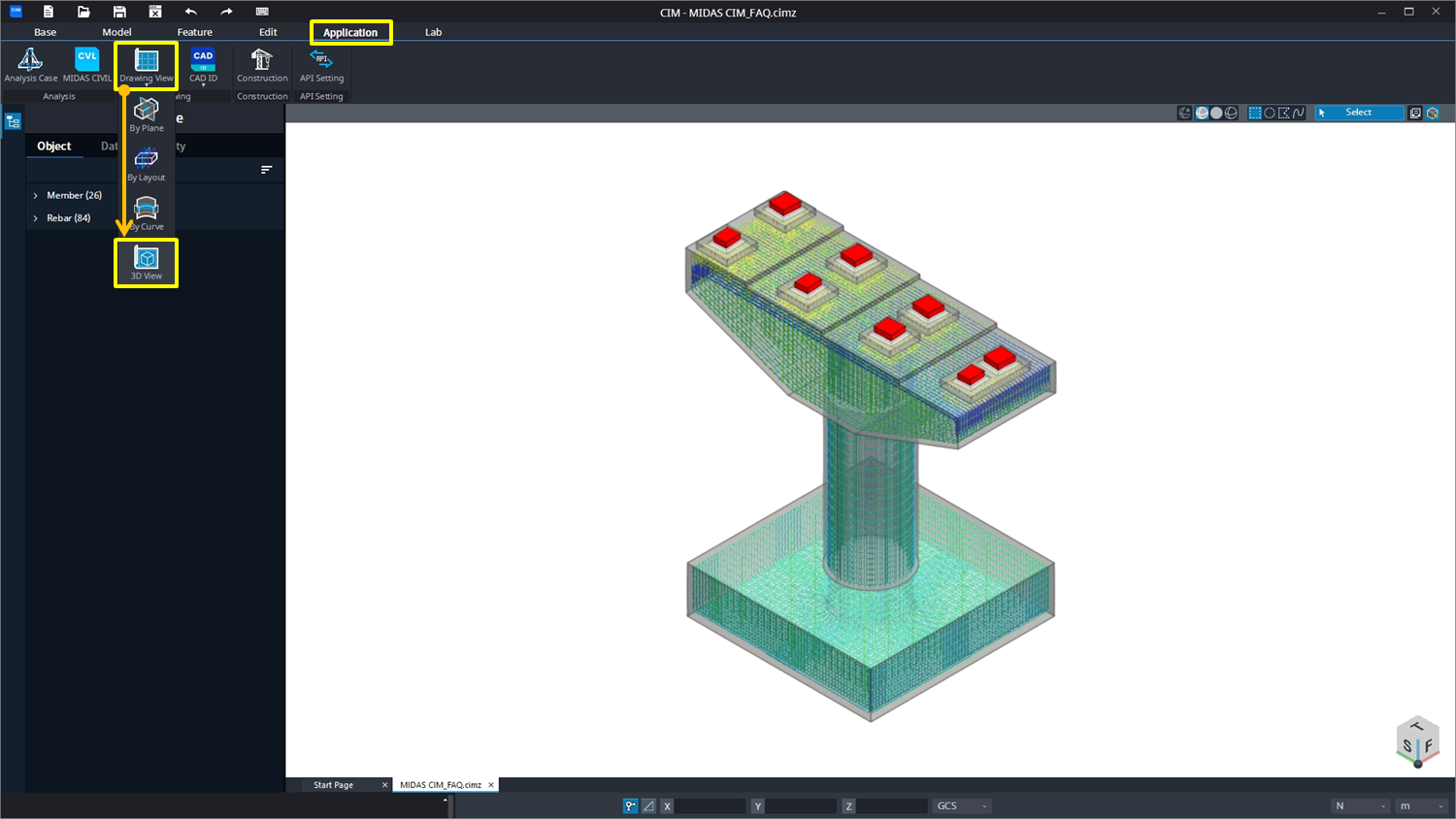

| Figure. 1 3D View Configuration Tool |
Enter Application > Drawing View > 3D View
| Figure. 2 Add 3D Section View |
Adjust the desired angle to link the CIM model shown on the monitor screen to the drawing.
Classification : You can change the name of the section to be created in CIM and apply it.
(CIM can only change the name of the first section created after drawing linkage.)
If you click Add in the View list, the CAD INFRA-DESIGN program is updated and linked.
You can check the section created by CIM in CAD INFRA-DESIGN, CIM View Mode model space.

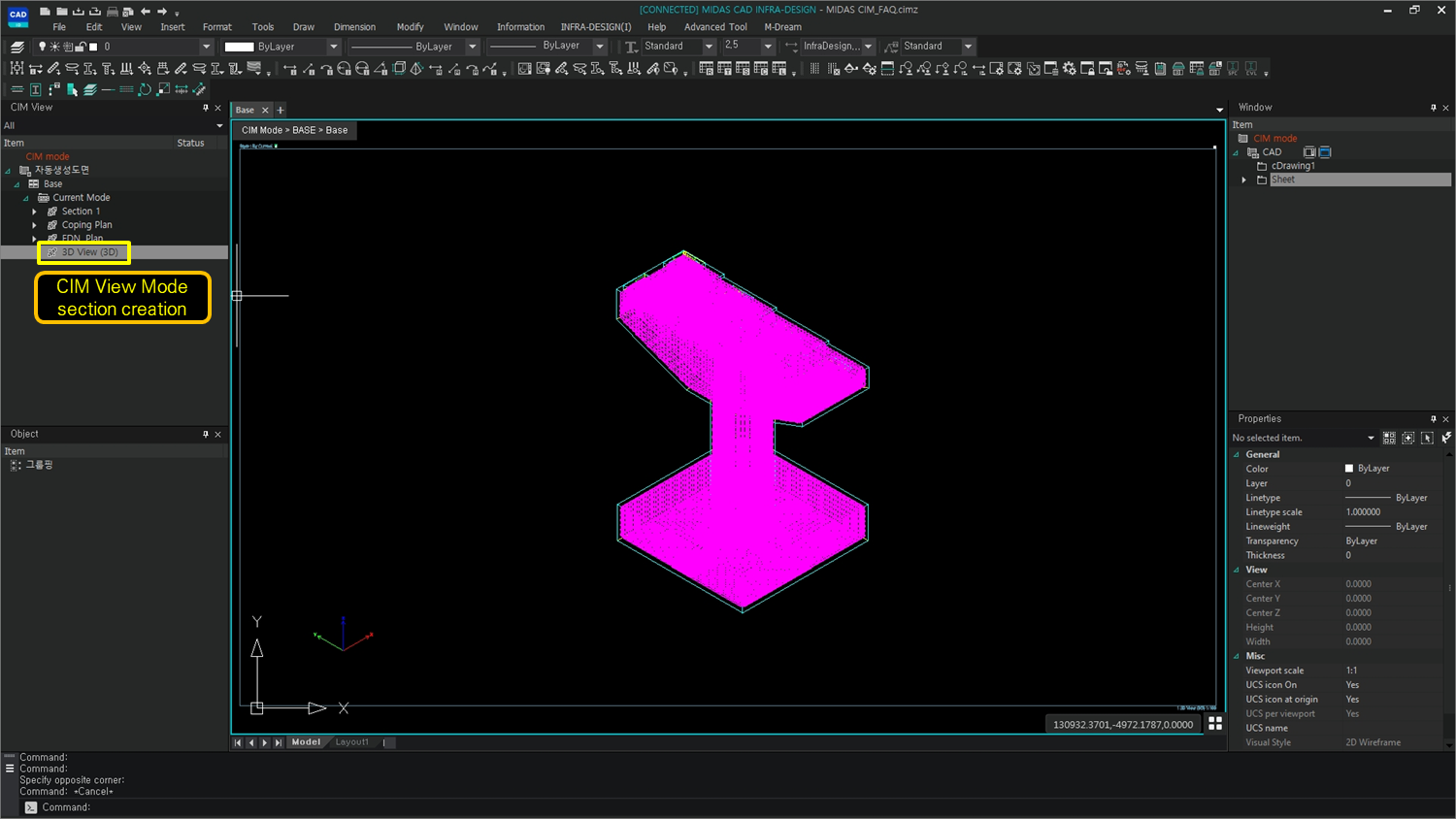

| Figure. 3 CAD INFRA-DESIGN drawing linkage |
