[CIM/Error message] Compound body is not supported


After assigning a model in Base mode, the message [Error] Compound body is not supported appears.



Expected problem) It is judged that the error message is caused by a problem with the Cutting function.


This message appears when the cutting function is not performed because an invalid result such as a small facet object remains during cutting.

It is difficult to determine the exact cause for each model, so please follow the process below.

1. If there is an object set as a cutting function, check if the corresponding cutting function is properly reflected
    in Base mode.

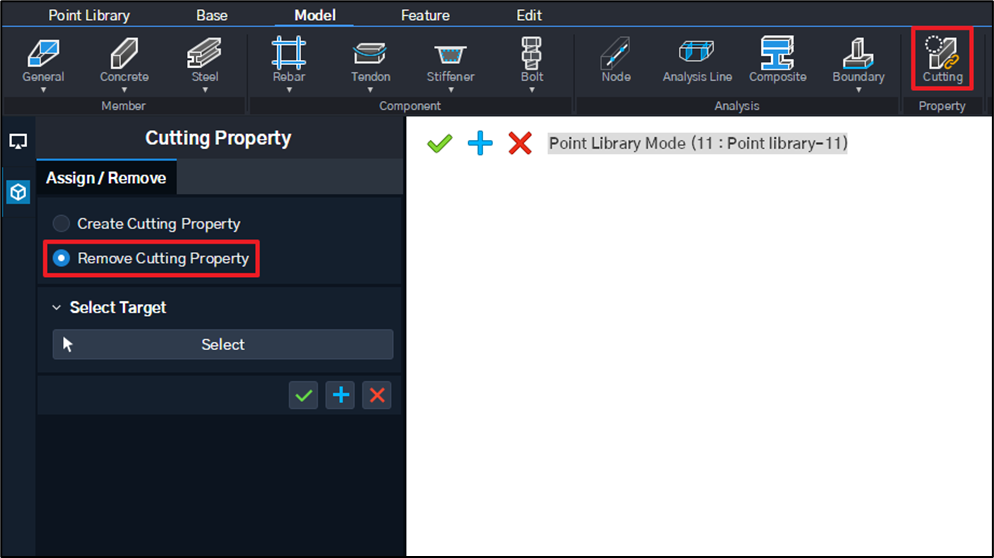

2. If there is an object with unintended cutting settings, please delete the cutting property.


3. If possible, try to
     increase the size of the object designated as Tool so that a clear cutting operation can be performed.
