Function
- Prestressing forces in tendons listed in a spreadsheet format table. The values may be entered or modified.
- Table Tool in midas Civil is powerful and contains a large variety of built-in functions. Refer to the following items for detail directions:
Call
From main menu, select [Load] tab > [Type : Load Tables] > [Load Tables] group > [Prestress Load] > [Tendon Prestress]
Input
(Refer to "Tendon Prestress Loads")

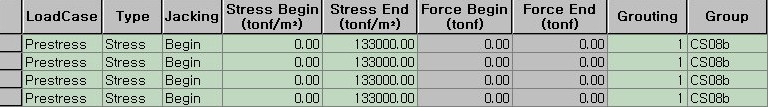

Refer to Usage of Table Tool and enter or modify the following data:
Tendon
Tendon name for which prestress loads are defined
Load Case
Load case name representing the prestress loads
Type
Type of prestress
Jacking
Order of pretensioning between the beginning and end of the tendon
Stress Begin
Prestress at the beginning of the tendon in the stress unit
Stress End
Prestress at the end of the tendon in the stress unit
Force Begin
Prestress at the beginning of the tendon in the force unit
Force End
Prestress at the end of the tendon in the force unit
Grouting
Timing for grouting Duct after prestressing
Group
Load Group Name
