Function
- Camber Control Graph of a bridge analyzed for construction stages by FCM is produced.
Call
From the main menu, select [Results] tab > [Type : Bridge Specialization] > [Camber] group > [FCM Camber] > [FCM Camber Graph View]
Input

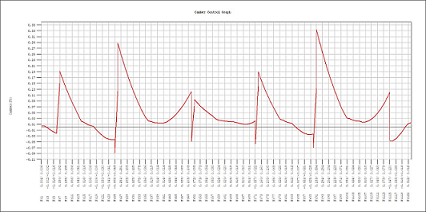

The X-axis of the graph represents the length (or nodes) of the bridge and the Y-axis represents the corresponding cambers. Two values are produced for each node. The upper values signify the cambers to be considered at the time of installing the formwork whereas the lower values signify the displacements that would occur upon removal of the formwork after casting the concrete at the corresponding nodes.
If the above conditions are satisfied, the deflections of the main girders will be '0' and remain horizontal upon completion of construction.
Right-click on the FCM Camber Graph displayed on the screen to prompt the following Context Menu.
Change Title & Label
The title and subtitles to the x & y-axes may be changed.
Draw Color Graph
Display the contents of graph and Legend assigned with separate colors.
Draw Gray Graph
Produce the graph in black color and use notes to distinguish the components.
Zoom Out
Drag the mouse over the part that is of interest to zoom in and click Zoom Out to restore the view.
Zoom Out All
Restore the very initial view of the graph. That is, revert to the view that contains all the ranges.
Save Graph As Image
Save the graph in the graphic file format of BMP, JPG or EMF.
Save Graph As Text
Save the graph in the format of a text file.
