Function
- Calculate construction camber and fabrication camber upon completion of construction stage analysis. In order to produce the camber diagram and camber table, specify the elements and constructed direction.
Call
From the main menu, select [Results] tab > [Type : Bridge Specialization] > [Camber] group > [General Camber] > [General Camber Control]
Input

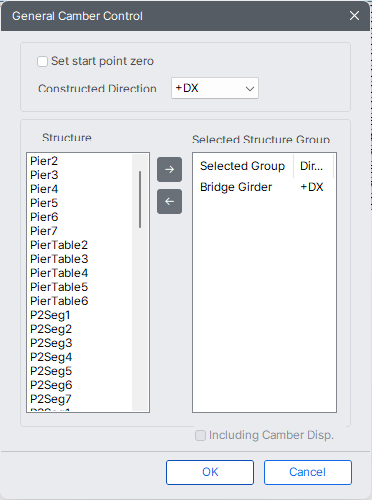

General Camber Control dialog box
Set start point zero
Specify whether or not to initialize the displacement at a start point.
Constructed Direction
Specify the direction in which the construction stages proceed.
Structure Group
To generate the Camber Graph select the Structure Group to which the specific elements are previously assigned. To create a Camber Graph for a specific section, it is necessary to pre-organize the relevant elements into a group.
