Analysis Result Tables Created Edited

General Link Result Table


  • General link element forces and stresses of analysis results are tabulated in a Spread Sheet format.
  • Table Tool in midas Civil offers a variety of powerful built-in functions. Refer to Usage of Table Tool for detail directions:



From the main menu, select  [Results] tab > [Type : Analysis result] > [Table] group > [Results Tables] > [General Link]



Refer to Results Table of "Usage of Table Tool" for the usage of Records Activation Dialog.

Refer to Usage of Table Tool and check the following data:

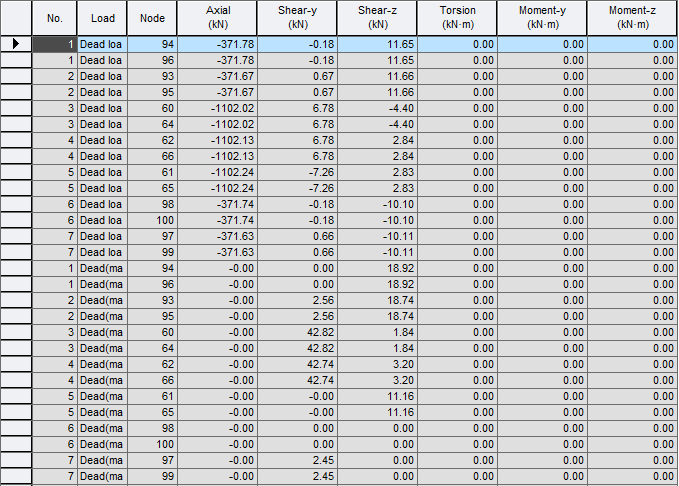

Results-tables-general link.png

No. : General link element number

Load : Load case/combination

Node : Node number

Axial : Axial force in ECS x-direction

Shear - y : Shear force in ECS y- direction

Shear - z : Shear force in ECS z- direction

Torsion : Torsional moment about ECS x-axis

Moment - y : Bending moment about ECS y-axis

Moment - z : Bending moment about ECS z-axis
