Time History Analysis Result Tables Created Edited

Displ/Vel/Accel Result Table

Function

  • Displacement, Velocity and Acceleration of time history analysis results are tabulated in a Spread Sheet format.
  • Table Tool in midas Civil offers a variety of powerful built-in functions. Refer to Usage of Table Tool for detail directions:



Call

From the main menu, select [Results] tab > [Type : Time History Analysis] > [Table] group > [Result Tables] > [Time History Analysis] > [Displ/Vel/Accel]



Input

When the Displ/Vel/Accel function is executed, the "Records Activation Dialog" is called. Here, you select the node numbers, load conditions, etc., and then click the OK button.

NOTE.png Refer to Results Table of "Usage of Table Tool" for the usage of Records Activation Dialog.

Please refer to the usage instructions of Table Tool to check the following data.

Results-tables-time history analysis-disp.png

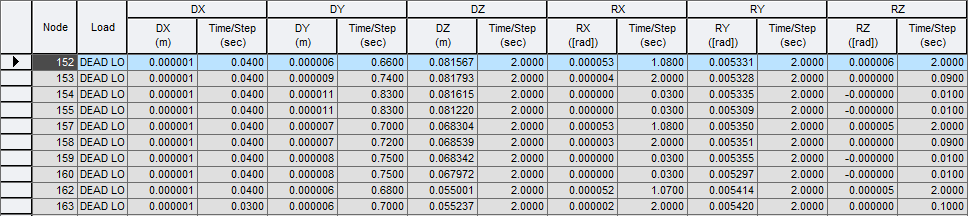

Displacement Tables

DX, DY, DZ, RX, RY, RZ : Max./Min. displacements for the selected nodes.

Time/Step : Time at which the Max./Min. displacements occur.

Results-tables-time history analysis-velocity.png

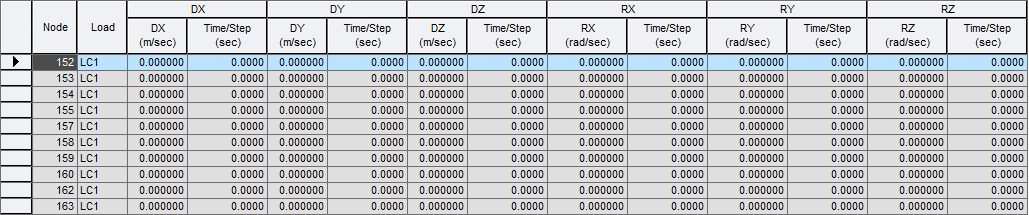

Velocity Tables

DX, DY, DZ, RX, RY, RZ : Max./Min. velocities for the selected nodes.

Time/Step : Time at which the Max./Min. velocities occur.

Results-tables-time history analysis-absolute accel.png

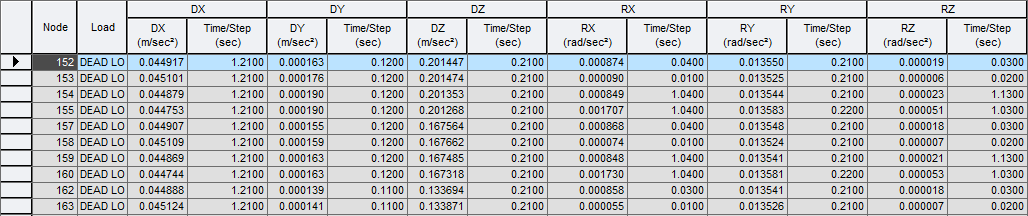

Absolute Accel. Tables

DX, DY, DZ, RX, RY, RZ : Max./Min. absolute accelerations for the selected nodes.

Time/Step : Time at which the Max./Min. absolute accelerations occur.

Results-tables-time history analysis-relative accel.png

Relative Accel. Tables

DX, DY, DZ, RX, RY, RZ : Max./Min. relative accelerations for the selected nodes.

Time/Step : Time at which the Max./Min. relative accelerations occur.
