Function
- Truss element forces of time history analysis results are tabulated in a Spread Sheet format.
- Table Tool in midas Civil offers a variety of powerful built-in functions. Refer to Usage of Table Tool for detail directions:
Call
From the main menu, select [Results] tab > [Type : Time History Analysis] > [Table] group > [Result Tables] > [Time History Analysis] > [Truss Force]
Input
When the Truss Force function is executed, the "Records Activation Dialog" is called. Here, you select the element numbers, load conditions, etc., to be displayed, and then click the OK button.
Refer to Results Table of "Usage of Table Tool" for the usage of Records Activation Dialog.
Please refer to the usage instructions of Table Tool to check the following data.

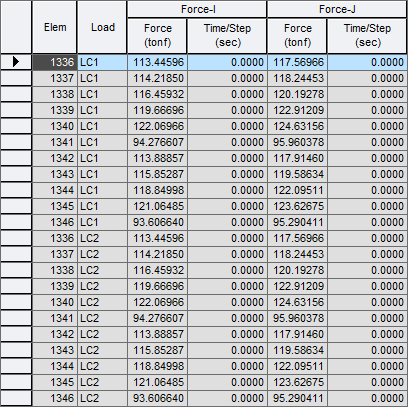

Truss Force Tables
Elem : Element number
Load : Output condition for time history analysis results
Max : Maximum value (+)
Min : Minimum value (-)
All : Absolute maximum value
Force-i : Axial force at i-end
Force-j : Axial force at j-end
Time : Time at which the truss element force occurred
