## Function

- Check the internal forces and stresses of solid elements resulting from the heat of hydration analysis in a spreadsheet format table.
- Table Tool in midas Civil offers a variety of powerful built-in functions. Refer to Usage of Table Tool for detail directions:

## Call

From the main menu, select **[Results] tab > [Type : Heat of Hydration] > ****[Table] group > [Results Tables] > [Stress]**

## Input

When the Heat of Hydration Analysis > Stress Table function is executed, the "Records Activation Dialog" is called. Here, you select the output targets such as nodes and elements, analysis stages for the hydration heat, etc., and then click the **OK** button. If you click **Cancel**, the table will be generated for all targets, and depending on the case, it may take a considerable amount of time.

Please refer to the usage instructions of Table Tool to check the following data.

Please refer to the usage instructions of Table Tool to check the following data.

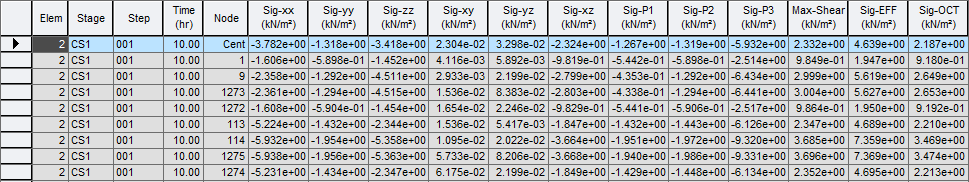

**Solid Stress(Local)**

**Elem** : Element no.

**Stage** : Construction stage

**Step** : Heat of hydration analysis step

**Time** : Timing of the corresponding step

**Node** : Node no.

**Sig-xx** : Axial stress in the element's local x-direction (Perpendicular to local y-z plane)

**Sig-yy** : Axial stress in the element's local y-direction (Perpendicular to local x-z plane)

**Sig-zz** : Axial stress in the element's local z-direction (Perpendicular to local x-y plane)

**Sig-xy** : Shear stress in the element's local x - y plane

**Sig-yz** : Shear stress in the element's local y - z plane

**Sig-xz** : Shear stress in the element's local x - z plane

**Sig-P1** : Principal stress in the 1st principal axis direction

**Sig-P2** : Principal stress in the 2nd principal axis direction

**Sig-P3** : Principal stress in the 3rd principal axis direction

**Max-Shear** : Maximum shear stress

**Sig-EFF** : Effective stress (von-Mises Stress)

**Sig-OCT** : Octahedral Shear Stress

**Solid Stress(Global)**

**Elem** : Element no.

**Stage** : Construction stage

**Step** : Heat of hydration analysis step

**Time** : Timing of the corresponding step

**Node** : Node no.

**Sig-XX** : Axial stress in GCS X-direction

**Sig-YY** : Axial stress in GCS Y-direction

**Sig-ZZ** : Axial stress in GCS Z-direction

**Sig-XY** : Shear stress in GCS X-Y plane

**Sig-YZ** : Shear stress in GCS Y-Z plane

**Sig-XZ** : Shear stress in GCS X-Z plane

**Sig-P1** : Principal stress in the 1st principal axis direction

**Sig-P2** : Principal stress in the 2nd principal axis direction

**Sig-P3** : Principal stress in the 3rd principal axis direction

**Max-Shear** : Maximum shear stress

**Sig-EFF** : Effective stress (von-Mises Stress)

**Sig-OCT** : Octahedral Shear Stress

The Stage and Step columns in the Analysis Result Table are produced for a construction stage analysis or Hydration Heat Analysis. The Step column is produced also for a geometric nonlinear analysis.
