Function
- Check the nodal temperatures of solid elements resulting from the heat of hydration analysis in a spreadsheet format table.
- Table Tool in midas Civil offers a variety of powerful built-in functions. Refer to Usage of Table Tool for detail directions:
Call
From the main menu, select [Results] tab > [Type : Heat of Hydration] > [Table] group > [Results Tables] > [Temperature]
Input
When the Displ/Vel/Accel function is executed, the "Records Activation Dialog" is called. Here, you select the node numbers, load conditions, etc., and then click the OK button.
Refer to Results Table of "Usage of Table Tool" for the usage of Records Activation Dialog.

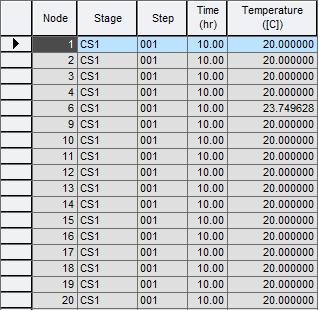

Please refer to the usage instructions of Table Tool to check the following data.
Node : Node no.
Stage : Construction stage
Step : Heat of hydration analysis step
Time : Timing of the corresponding step
Temperature : Nodal temperature
The Stage and Step columns in the Analysis Result Table are produced for a construction stage analysis or Hydration Heat Analysis. The Step column is produced also for a geometric nonlinear analysis.
