Heat of Hydration Result Tables Created Edited

Pipe Cooling Nodal Temperature


  • Check the water temperatures of solid elements at the nodes along the flow path resulting from the heat of hydration analysis using pipe cooling in a spreadsheet format table.
  • Table Tool in midas Civil offers a variety of powerful built-in functions. Refer to Usage of Table Tool for detail directions:



From the main menu, select [Results] tab > [Type : Heat of Hydration] > [Table] group > [Results Tables] > [Pipe Coolling Nodal Temperature]



Upon executing the Hydration Heat Analysis > Pipe Cooling Nodal Temperature Table function, Records Activation Dialog prompts. Click after selecting the output entities such as nodes or elements, loading conditions, construction stages, etc.

NOTE.pngRefer to Results Table of "Usage of Table Tool" for the usage of Records Activation Dialog.

Refer to Usage of Table Tool and check the following data:

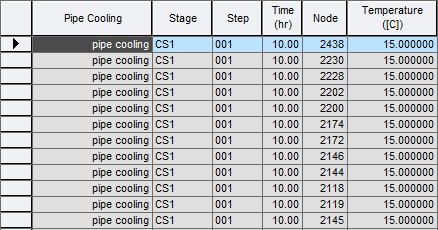

Results-tables-Heat of Hydration-Pipe cooling nodal temperature.png

Pipe Cooling : Pipe cooling group number

Node : Node number

Stage : Construction stage

Step : Hydration heat analysis step

Time : Time

Temperature : Water's freezing temperature

NOTE.png In the analysis results table, the Stage and Step columns are output for both the construction stage analysis of the bridge and the hydration heat analysis. The Step column is also output for geometrically nonlinear analysis.
