Composite Section For C.S. - Beam Force & Stress Result Table

Function

  • Construction stage analysis results of composite sections can be checked in a table in the form of Spread Sheet.
  • Table Tool in midas Civil offers a variety of powerful built-in functions. Refer to Usage of Table Tool for detail directions:



Call

From the main menu, select [Results] tab > [Type : Analysis result] > [Table] group > [Results Tables] > [Composite Section for C.S.] > [Beam Force & Stress]

From the main menu, select [Results] tab > [Type : Analysis result] > [Table] group > [Results Tables] > [Composite Section for C.S.] > [Beam Force]

From the main menu, select [Results] tab > [Type : Analysis result] > [Table] group > [Results Tables] > [Composite Section for C.S.] > [Beam Stress]



Input

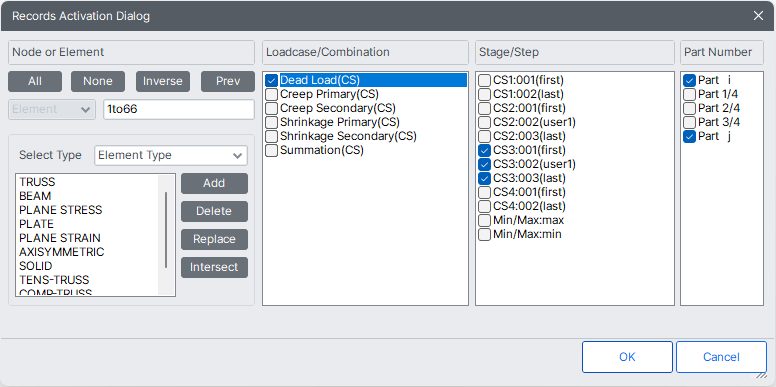

When you execute the "Beam > Force & Stress Table" function, the Records Activation Dialog will be displayed. Here, you can select the target nodes, elements, load conditions, and construction stages for the output. After making your selections, click the OK button. If you click Cancel, the table will be generated for all targets, which may take a considerable amount of time depending on the case.

NOTE.png For the usage of the Records Activation Dialog, please refer to the "Usage of Table Tool" section in the documentation for detailed information on the resulting table.

Refer to Usage of Table Tool and check the following data

Results-tables-Composite section for CS-beam for stress table.png

When examining Beam Forces, selecting "Current Step Result" will output the member forces for the current step.

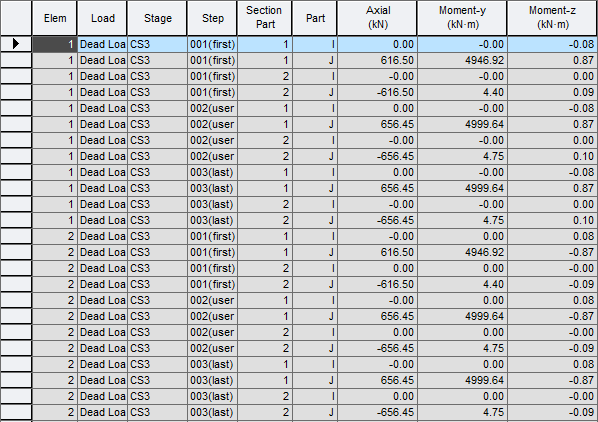

Results-tables-Composite section for CS-beam for stress table 1.png

Beam Force

Elem : Element number

Load : Unit load case/combination

Stage : Construction stage

Step : Sub-stage

Section Part : Part Number in composite section

Part : Output position along the length of each element

Axial : Axial force

Shear - y : Shear force in the element's local y-axis direction

Shear - z : Shear force in the element's local z-axis direction

Torsion : Torsional moment about the element's local x-axis

Moment - y : Bending moment about the element's local y-axis

Moment - z : Bending moment about the element's local z-axis

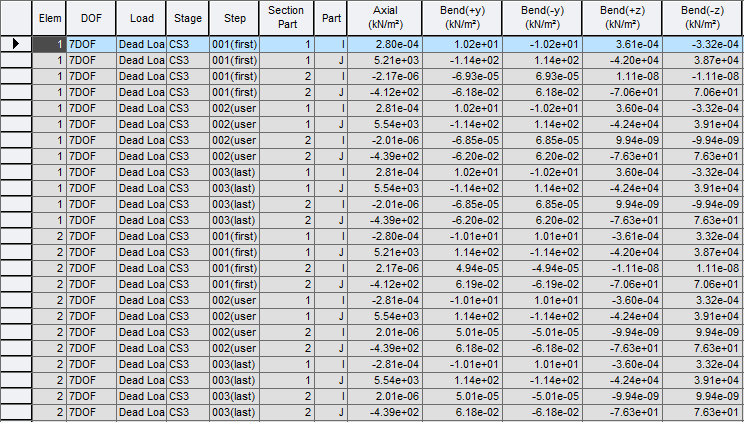

Results-tables-Composite section for CS-beam for stress table-stress 1.png

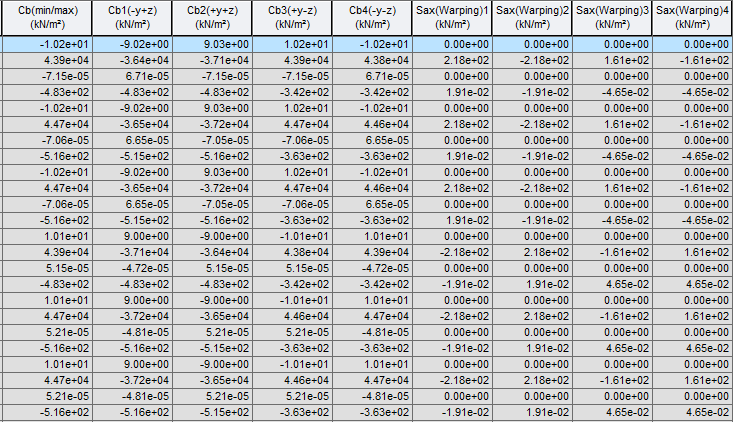

Results-tables-Composite section for CS-beam for stress table-stress 2.png

Beam Stress

Elem : Element number

Load : Unit load case/combination

Stage : Construction stage

Step : Sub-stage

Section Part : Part Number in composite section

Part : Output position along the length of each element

Axial : Axial stress

Shear - y : Shear stress in the element's local y-axis direction

Shear - z : Shear stress in the element's local z-axis direction

Bend(+y) : Bending stress about the element's local y-axis (positive direction)

Bend(-y) : Bending stress about the element's local y-axis (negative direction)

Bend(+z) : Bending stress about the element's local z-axis (positive direction)

Bend(-z) : Bending stress about the element's local z-axis (negative direction)

Cb(min/max) : Minimum or maximum value among Cb1, Cb2, Cb3, Cb4

Cb1(-y+z) : Axial+ Bend(-y) + Bend(+z)

Cb2(+y+z) : Axial+ Bend(+y) + Bend(+z)

Cb3(+y-z) : Axial+ Bend(+y) + Bend(-z)

Cb4(-y-z) : Axial+ Bend(-y) + Bend(-z)

NOTE.png In the analysis result table, the Stage and Step columns are displayed for bridge construction stage analysis or heat of hydration analysis. The Step column is also displayed for geometrically nonlinear analysis.
