Function
- Check the element properties at each construction stage (start age, end age, modulus of elasticity at the start, modulus of elasticity at the end, cumulative shrinkage and cumulated creep coefficient) in a spreadsheet format table.
- The Table Tool in midas Civil is a powerful and versatile feature that comes with various functions. For detailed instructions on how to use the Table Tool, please refer to the Table Tool's user manual.
Call
From main menu, select [Results] tab > [Results Table] group > [Construction Stage] > [Element Properties at Each Stage]
Input

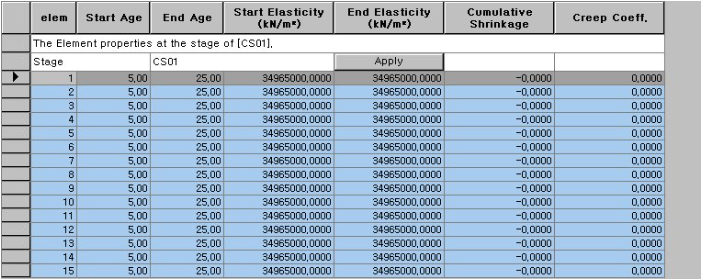

Select a construction stage to produce the element properties for from the Stage selection field. Once the stage was selected, click Apply. Then the relevant element properties for the selected stage will be produced.
Elem : Element number
Start Age : Start age at the selected stage
End Age : End age at the selected stage
Start Elasticity : Modulus of elasticity at the start for the selected stage
End Elasticity : Modulus of elasticity at the end for the selected stage
Cumulative Shrinkage : Cumulative shrinkage upon completion of the selected stage
Creep Coeff. : Cumulative creep coefficient upon completion of the selected stage
In elements that utilize the composite section defined by the Construction Stage Composite Section feature, it is indicated by "-".
