Function

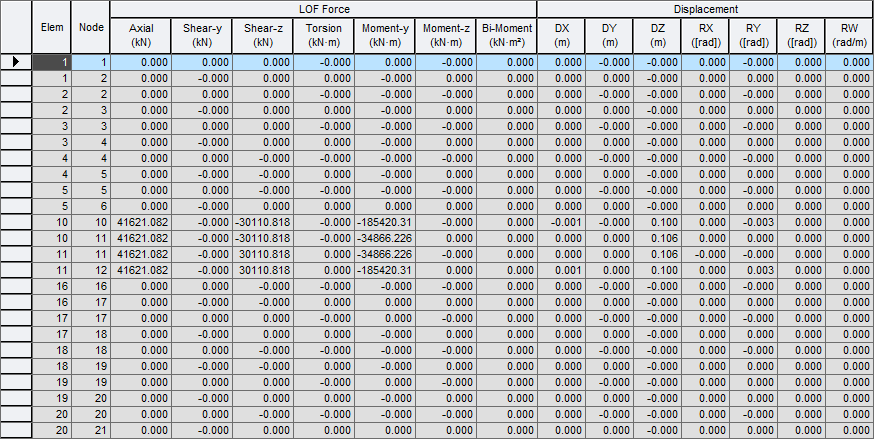

- In the construction stage analysis reflecting Lack of Fit Force, generate Lack of Fit Force and the corresponding values in a table format.
- Table Tool in midas Civil offers a variety of powerful built-in functions. Refer to Usage of Table Tool for detail directions:
Call
From main menu, select [Results] tab > [Type : Analysis result] > [Table] group > [Results Tables] > [Lack-of-Fit-Force] > [Beam]
Input
Elem : Element number
Node : Node number
LOF Force : Calculated Lack of Fit Force
Axial : Axial force
Shear-y : Shear force in the element's local y-direction
Shear-z : Shear force in the element's local z-direction
Torsion : Torsional moment about the element's local x-axis
Moment-y : Bending moment about the element's local y-axis
Moment-z : Bending moment about the element's local z-axis
Displacement : Displacement in each GCS direction (Real Displacement)
