Function
- Assign/replace the hinge properties defined in Define Hinge Properties to all the members.
Call
From the main menu, select [Poshover] tab > [Properties] group > [Hinge Properties] > [Assign Pushover Hinge Properties]
Input

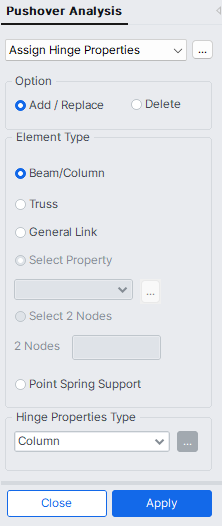

Assign Pushover Hinges dialog box
Options
Add/Replace : Add new or replace existing hinge information pertaining to the selected elements.
Delete : Delete existing hinge information pertaining to the selected elements.
Element Type
Select the type of member that you want to assign hinge properties to. Hinge properties can be assigned to truss elements, beam elements, and wall elements.
Hinge Properties Type
Select the hinge properties that you want to assign. To modify or add hinge properties, click the button on the right to invoke the Define Hinge Properties dialog box.
