Function
- Check the displacement of a particular node in numerical values.
Call
From the main menu, select [Poshover] tab > [Diagram] group > [Deformations] > [Search Displacements]
Input

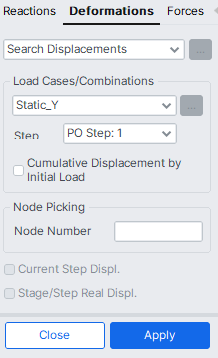

Search Displacements dialog box
Load Cases/Combinations
Select a desired load case, load combination or envelope case.
Click to the right to enter new or modify existing load combinations. (Refer to "Load Cases / Combinations")
Step : Specify the step for which the analysis results are to be produced. The Step is defined in geometric nonlinear analysis as Load Step, and additional steps are defined in the construction stages of bridges or heat of hydration analyses.
Node Picking
Node Number
Enter the node number for which the displacement is to be checked, or click the entry field and assign the node with the mouse in the working window.
Current Step Disp.
Produce the displacements pertaining to the selected step of the construction stage if a construction stage analysis has been performed.
Stage/Step Real Disp.
Display the Real Displacements for each construction stage when the construction stage analysis is performed.
When the node number is assigned, the following items are displayed in the Message Window.
Node Number
DX : Displacement component in GCS X-direction
DY : Displacement component in GCS Y-direction
DZ : Displacement component in GCS Z-direction
DXYZ :
RX : Rotation component about GCS X-axis
RY : Rotation component about GCS Y-axis
RZ : Rotation component about GCS Z-axis
