Function
- Pushover analysis shows the relationship between Force versus Deformation generated by each member.
Call
From the main menu, select [Poshover] tab > [Pushover Results] group > [Pushover Grap]
Input
This graph is available if you want to check the correlation between shear forces and interlayer displacement generated by each member after performing Pushover analysis..

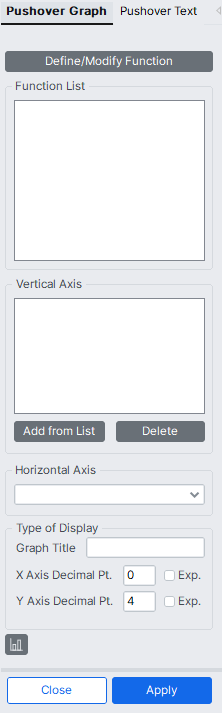

Pushover Graph dialog box
Function List
Select the functions to be plotted in a graph from the list of the Define/Modify Function. See Time History Result Function for instructions on how to define the output function.
Vertical Axis
Select the item corresponding to the vertical axis of the graph. Check on the function you want to graph and click the Add from List button to add it.
Horizontal Axis
Select the function corresponding to the horizontal axis of the graph.
