Set all types of initial preferences for general operation of midas Civil.
- The preferences set by the command are listed below. Use the Tree Menu located to the left of the dialog box to check or modify the defaults.
General : Provide the user's name, company logo, directory for temporary files and temporary file saving requirements
View : Defaults for the working window
Tolerance Data : Tolerance assignment for merging nodes or intersecting elements
Property : Data Base assignment for material properties and member properties
Load : Predefine the magnitudes of floor loads in the database.
Design : Assign applicable design standards for different material types and material properties for structural steel
Graphics : Specify the Print Out option.
Formats - Dim. & Others : Assignment of format for numerical values to be used for producing model data and analysis results
Formats - Forces
Formats - Loads
From the main menu, select [Project] tab > [Management] group > [Preferences]
When you run a reference, the following Preference dialog box appears.

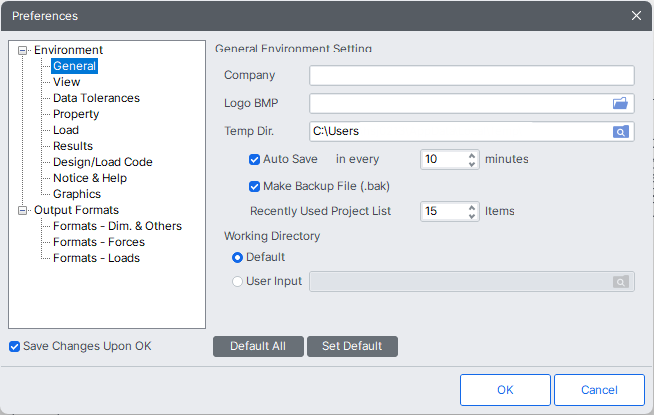

Preference dialog box
Select the items in the Tree Menu to the left of the dialog box to display the corresponding features to the right.
Check on Save Changes Upon OK and click the OK button to immediately effect the current settings and save the changes in Window Registry for subsequent uses of midas Civil.
Default All: Set all the preferences Settings as default.
Set Default: Set the current preferences Setting as default.
Environment > General
Company : User's name
Logo BMP : Specify a file containing the company logo that will be printed in various analysis/design results.
Temp Dir : Assign a directory in which temporary files are created and deleted during the execution of MIDAS/Civil.
Temp Dir shall be assigned to a drive with sufficient disk space. If the disk space is insufficient, the execution will be slow and may also cause problems.
Auto Save : Auto-save the project file at a given time-interval.
Make Backup File (.bak) : Save a backup file (.bak) whenever the file is changed and saved.
Recently Used Project List : List the prescribed number of files recently used at the bottom of the File Menu
Working Directory: Display the directory when opening and closing a file.
Default Dir. : Basic directory provided by Windows is used.
User Input Directory : Working directory defined by the user
Environment > View
Set the default working window when creating a new project file or opening an existing file.
Initial Model Boundary Size : Assign the size of the default window when creating a new project
Initial Point Grid
Grid Space X : Point Grid spacing in UCS x-direction when creating a new project. It can be temporarily modified using Set Point Grid.
Grid Space Y : Point Grid spacing in UCS y-direction when creating a new project. It can be temporarily modified using Set Point Grid.
Grid on : Check in the option to display the Point Grid on the screen when creating a new project file or opening an existing file (refer to "Grids").
Initial View Point
Check in the option to display the model window in ISO View or Top View when creating a new project file or opening an existing file (refer to "View Point").
Check in the option to activate Snap for Point Grid, Line Grid, Node and Element when creating a new project file or opening an existing file (refer to "Snap").
Environment > Data Tolerances
Regard as Zero under
Treat the values less than the specified as "0"
Node Duplication Tolerance
Specify a tolerance for merging more than one node into a single node. The tolerance is applicable when combining or copying nodes.
Specify an intersect tolerance for merging contiguous nodes and elements or between elements when executing Intersect.
Environment > Property
Specify data bases for material and section properties.
Environment > Load
The floor loads predefined in the database can be recalled from Load >Define Floor Load Type.
: Enter the loads per unit area using the floor loads predefined in Tools>Preferences- Load.
Environment > Results
Consider Signs in Load Combination Type of Envelope "All" : If the method of load combination of analysis results is Envelope, and this option is selected, the values in "Text Output" are produced with signs instead of the absolute values of max and min.
Environment > Design/Load Code
Select the design standard and rebar material to be used in Design. Especially, the user can select a language to be used for Word/Excel report produced after executing Design.
Environment > Notice & Help
Show Notice : When midas Civil is executed, the latest program upgrade information on the homepage of MIDASoft, Inc can be checked.
Use Local Help : Check on to use the Local Help (CVLw.chm) as a default manual. If this option is checked off, the web-based online manual is invoked.
Environment > Graphics
Graphics Environment Setting
Specify the Buffer Size for graphic display.
Enable Vector-Based Print Out
It may take time to print out if Open-GL that the program uses as default is used. Select this option to use the Vector-Based Engine of low resolution to reduce time for printout.
Enable Low Resolution Print Out
Select this option to optimize the background when the Vector-Based Print Out option is enabled.
Output Formats > Formats - Dim & Others
Specify the number of decimal points when producing analysis results.
If Auto is checked in, the number of decimal points for each numerical value is auto-fitted by the program according to the pre-defined format as per the selected unit system. If Auto is unchecked, the user may specify the number of decimal points for each item.
If Exponential is checked in, the specified numbers of decimal points are ignored and all the numerical values are produced in exponentials.
Output Formats > Formats - Forces
Output Formats > Formats - Loads
Specify an output format for displaying loads.
General : The number of significant digits
Fixed : The number of decimal places
Exponential : The number of decimal places of load values to be displayed in exponentials
