Convert Meta Files to DXF Files

Function

Convert a file saved in the Windows Meta File(EMF) format into an AutoCAD DXF file.

Call

From main menu, select [Apps] tab > [Application] group > [Meta File Coverter]

Input

dialog box.png

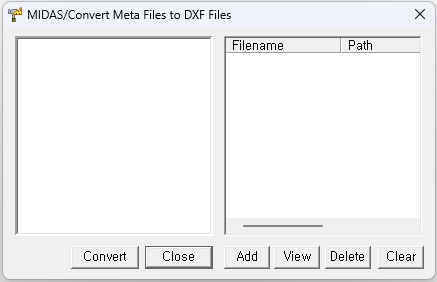

Convert Meta Files to DXF Files dialog box

Click Add to register an EMF file to be displayed. Subsequently,Select the registered EMF file and cick View. Then a figure will appear in the lift window of the dialog box. Clicking Convert will convert the EMF file into an AutoCAD DXF file.
