Question
I'm curious about the method for authenticating the DRAWING license.
Answer
There are two methods for authenticating MIDAS programs: "Web Authentication" when connected to the internet, and "Hardware Lock Authentication" using a USB device inserted into the main body.
The two authentication methods are selected at the time of product purchase and need to be followed accordingly when using the program.
Below, the process for each authentication method is classified for your reference. Please follow the appropriate process for authentication.
1. Run 'Register Protection Key'.
After running DRAWING (Gen), click on the 'Help (H)' tab at the top of the screen and select 'Register Protection Key'.
2. Select the authentication method and proceed with the authentication
After activating the 'Register Protection Key' window, select the authentication method at the top and proceed with the authentication
- Web Authentication
1) Select [Web Authentication].
2) Enter your 'ID / Password' in the 'License Authentication' field.
3) Click the [Select Product] button.
4) In the activated product selection window, choose the product you want to use and click [OK].
5) Click the [OK] button at the bottom of the 'Register Protection Key' window.

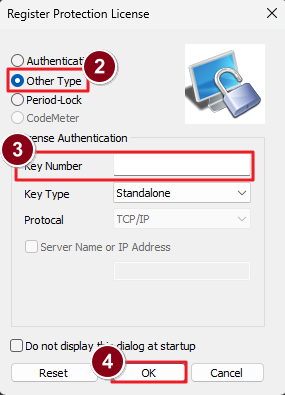

- Hardware Lock
1) Insert the Hardware Lock (USB) that you will be using into the main body.
2) Select [Other Type].
3) Enter the 'Key Number' in the 'License Authentication' field.
4) Click the [OK] button at the bottom of the 'Register Key' window.
