Question
How do I check the Steel Code check result?
Answer

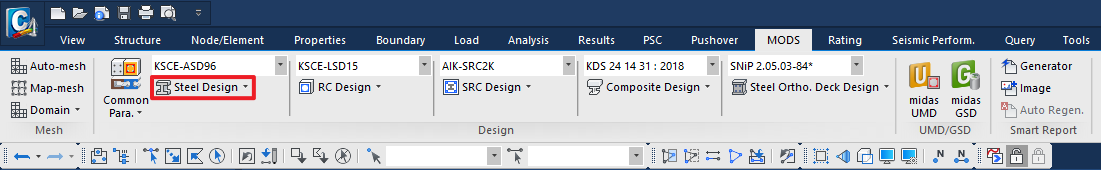

You can check the Steel Code Check in the [MODS] Tab > [Design] Group > [Steel Design] > [Steel Code Check...]

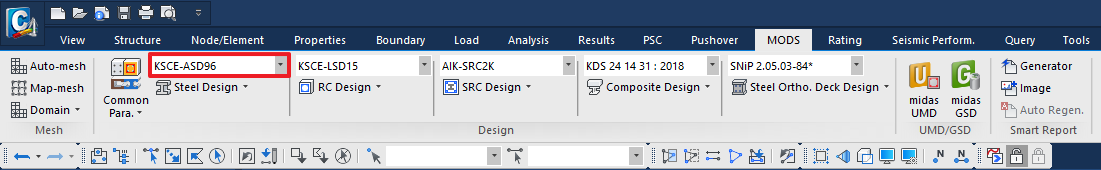

[Steel Code Check...] is available for the following design codes
- KSCE-ASD96
- AASHTO-LRFD02 or AASHTO-LFD96
- AASHTO-ASD96
- Eurocode3-2:05 V5-
- BS5950-90
- IS800-1984
- AISC-LRFD2K
- AISC-LRFD93
- AISC-ASD89
- JTJ025-86

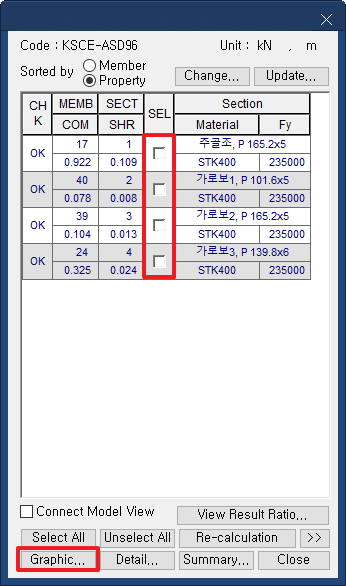

After Steel Code Check, select the items you want to output and click [Graphic...] to create a PDF calculation. For details on each item, please refer to the product manual.

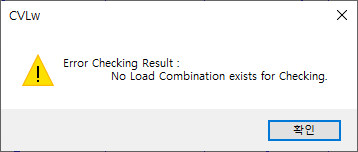

Additionally, if the Steel Code Check is not being performed and you receive a warning message, it means that the Load Combination for Steel Design has not been defined.

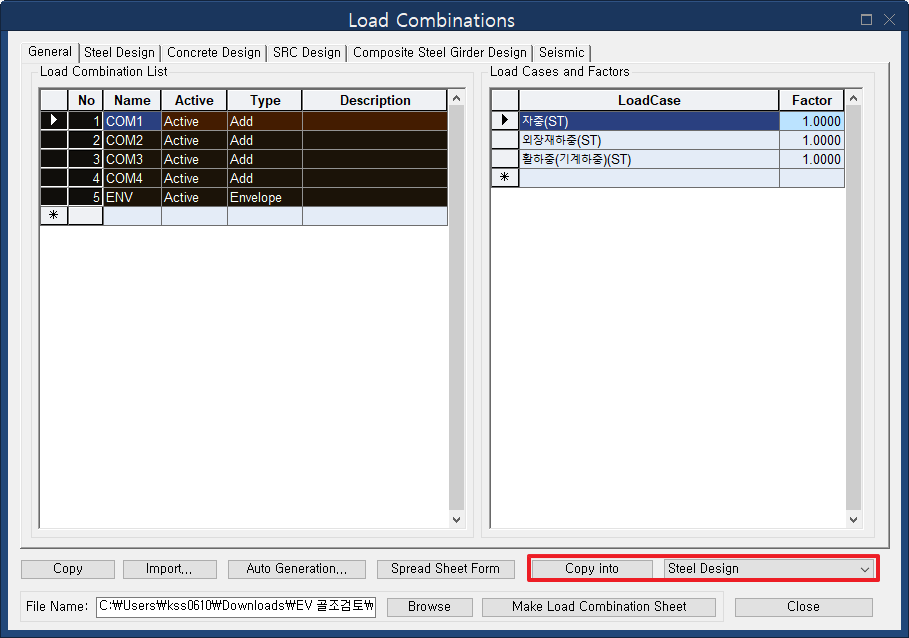

you need to copy the load combination into Steel Design from the [Results] tab > [Combination] group > Load Combination.
