Question

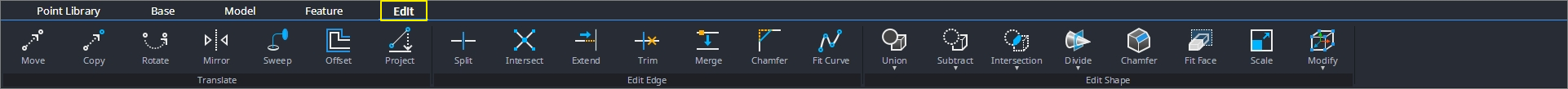

Objects are not selected when using the Move/Copy function under the Edit Ribbon.
Answer
Objects defined as Expression Entities cannot be selected, so you can use the Unconstraint function to release the Expression Entity definition and then use the Edit function.
Objects defined as Expression Entities (Point Linked Entity) for assignment to the upper mode in CIM are not selectable as targets for the Edit function.

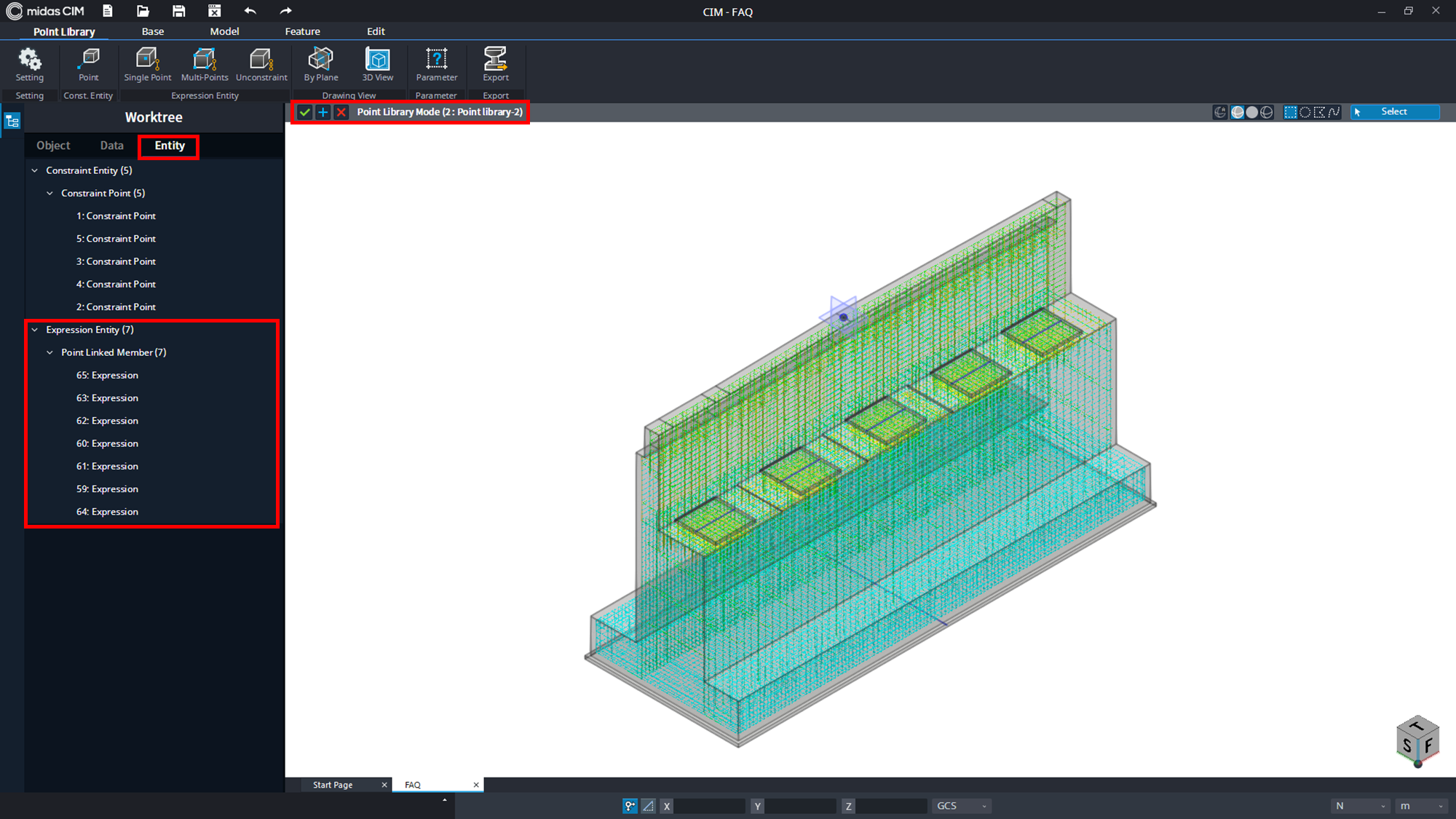

Figure 1. Objects defined as an Expression Entity
If you want to modify the object, release the Expression Entity definition with the Unconstraint function.

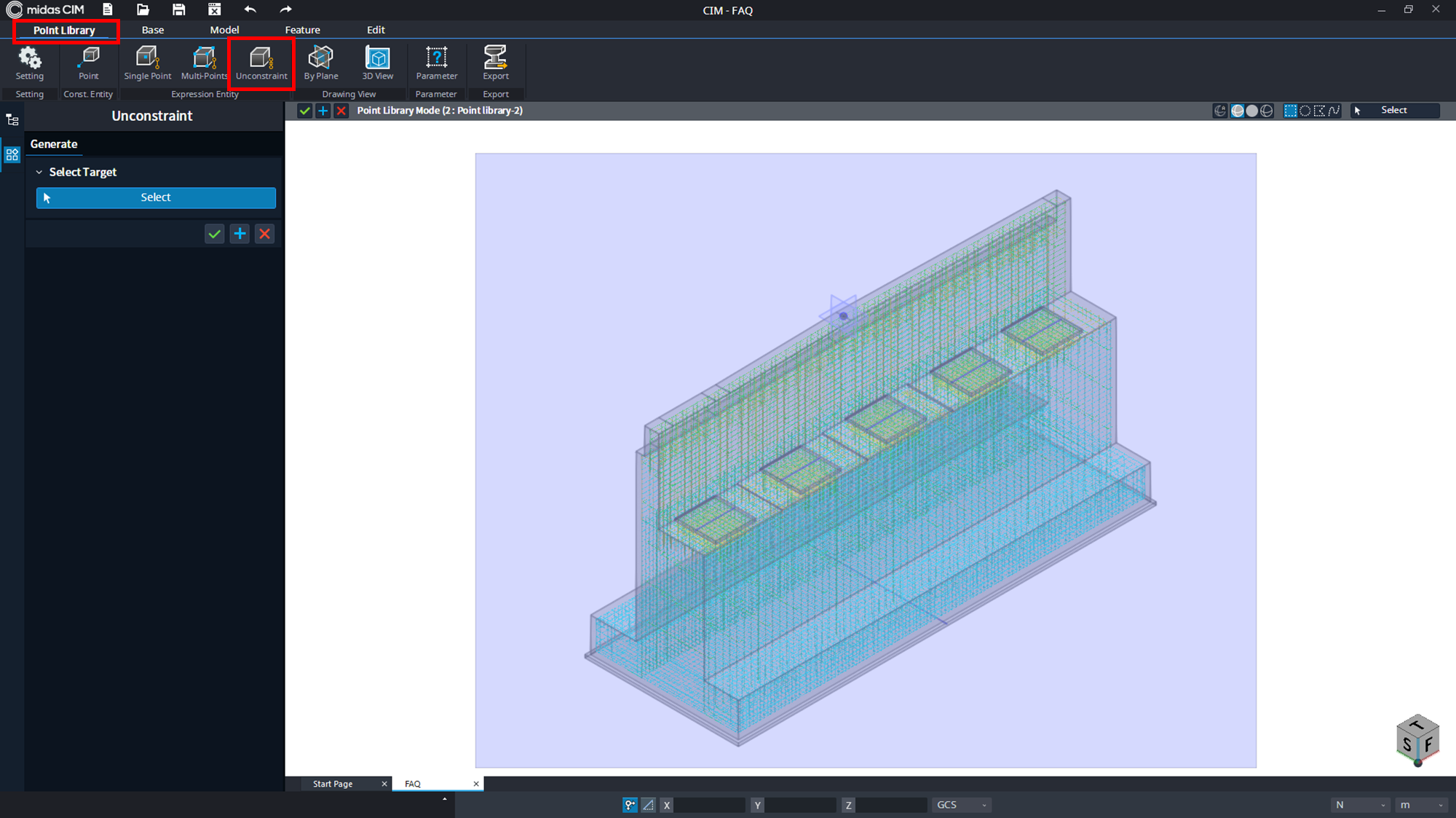

Figure 2. Releasing the Expression Entity definition using the Unconstraint function
Once the Expression Entity definition is released and object selection is enabled, please redefine it as an Expression Entity when the modification is complete.
Figure 3. Objects Selectable
