Question
How can I load a Land XML file into CIM, taking into account the coordinate information of the Land XML file?
Answer
By specifying the coordinate system of CIM through the Geographic Coordinate option setting, you can import the Land XML file into CIM and retain the coordinate information.
When creating a new CIM file, the CIM workspace does not have a coordinate system (Geographic Coordinate) set. If you load a file with coordinate information into a CIM file without a Geographic Coordinate set, the file information will be brought in based on the coordinates within the CIM workspace.
Therefore, to load a file with coordinate information while considering the actual coordinates, you need to set the coordinate system in the Ribbon Menu's Base > Option > Coordinate.
The setting of the coordinate system should match the coordinate system to be referenced in the ongoing project and the CIM's coordinate system. (CIM workspace and coordinate system settings↗)

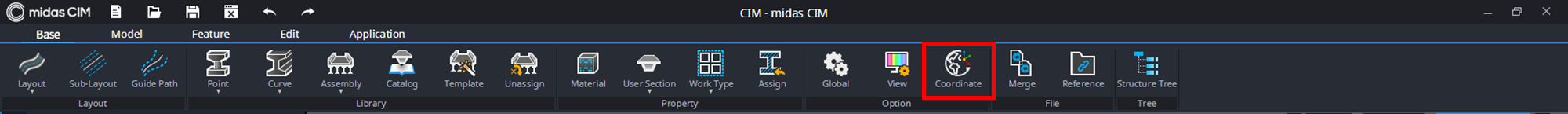

Figure 1. Geographic Coordinate setting
The set coordinate system can be checked in Worktree > Data.
| Before setting Geographic Coordinate | After setting Geographic Coordinate |

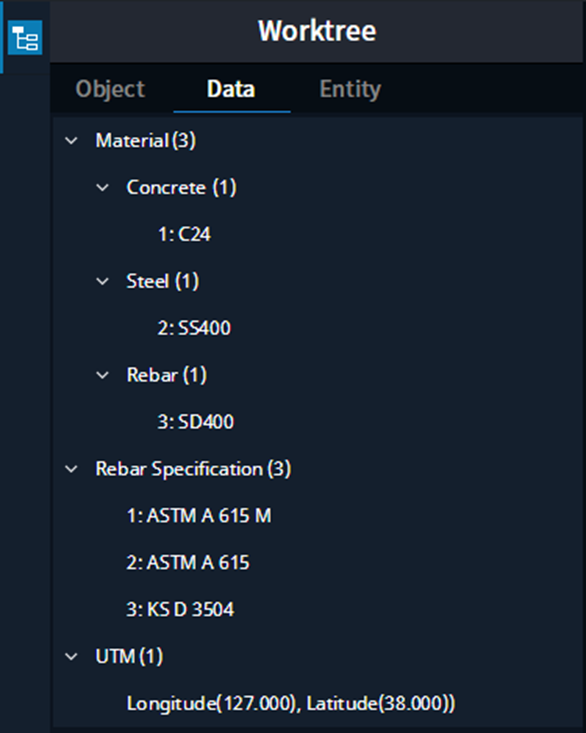

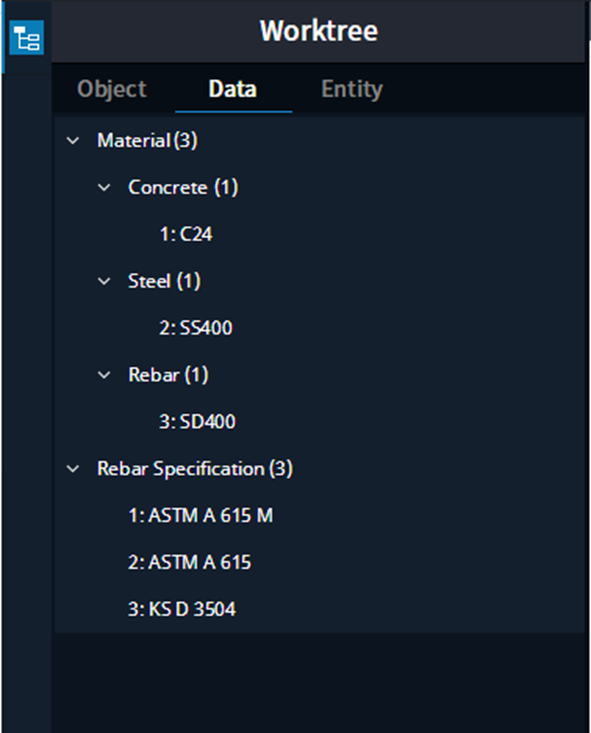

Figure 2. Status check depending on the setting of Geographic Coordinate
After setting the Geographic Coordinate, to import a Land XML file with coordinate information, set the Coordinate to Geographic Coord.

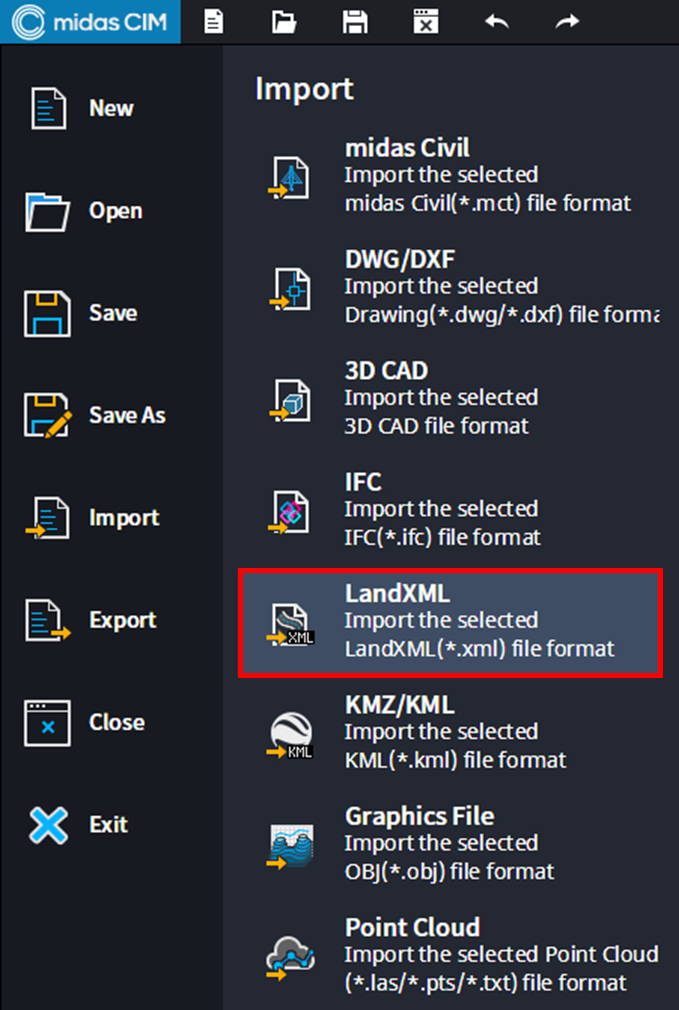

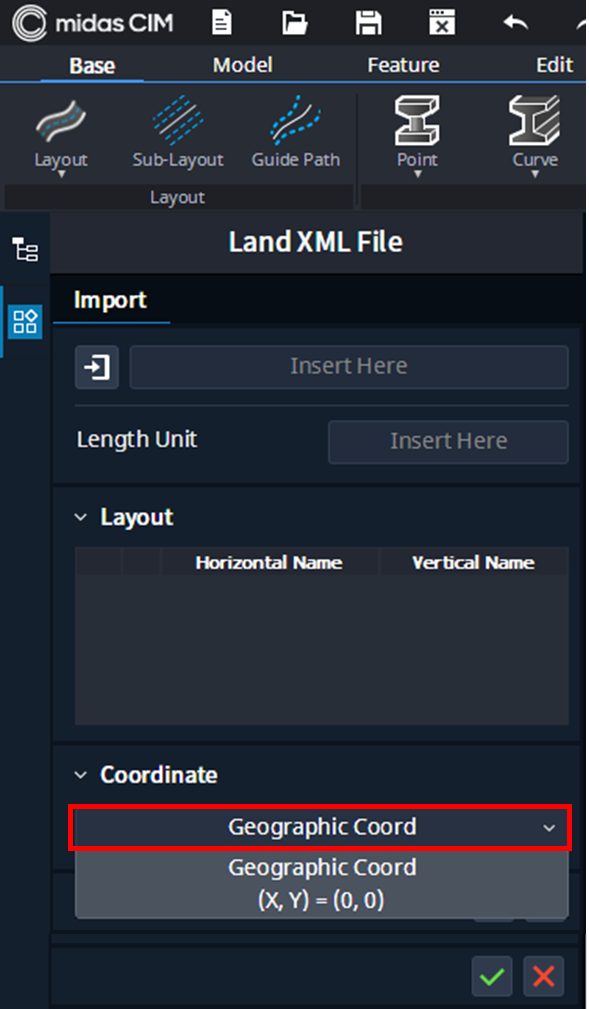

Figure 3. Land XML Import process
The imported alignment information can be checked in Base > Layout > Layout > Create-Edit.
