Function
- Check the yielding steps for all the defined hinges in a spreadsheet format table, based on the pushover analysis results.
- Table Tool in midas offers a variety of powerful built-in functions. Refer to the Usage of Table Tool for detailed information.
Call
From the main menu, select [Pushover] tab > [Table] group > [Result Tables] > [Yield Step]
Input
Upon executing the Yield Step function, the Records Activation Dialog is invoked. Click OK after selecting the output entities such as load cases, pushover steps, etc.

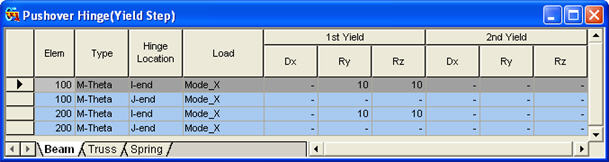

1. Beam Type
Details
1st Yield : Pushover step at the first yielding point
2st Yield : Pushover step at the second yielding point

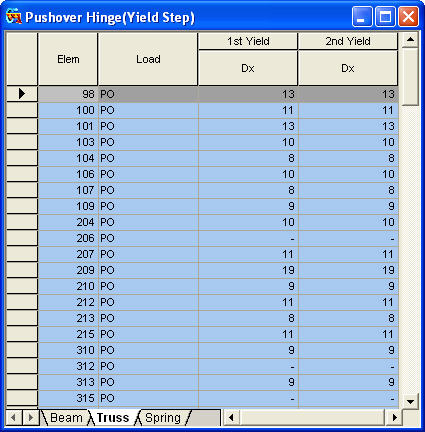

2. Truss Type
Details
1st Yield : Pushover step at the first yielding point
2st Yield : Pushover step at the second yielding point

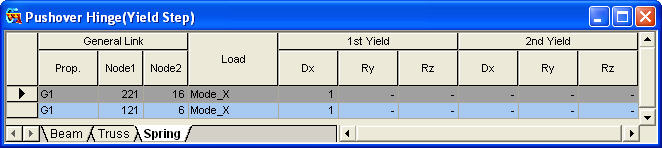

3. Spring Type
Details
1st Yield : Pushover step at the first yielding point
2st Yield : Pushover step at the second yielding point
