Function
- Check hinge status of spring type hinge for each pushover step in a spreadsheet format table.
- Table Tool in midas offers a variety of powerful built-in functions. Refer to the Usage of Table Tool for detailed information.
Call
From the main menu, select [Pushover] tab > [Table] group > [Result Tables] > [Spring Summary]
Input
Upon executing the Beam Summary function, the Records Activation Dialog is invoked. Click OK after selecting the output entities such as load cases, pushover steps, etc.
Deform : Total deformation (Elastic deformation + Plastic Deformation)
D/D1 : Ratio of the total deformation to the 1st yielding deformation
D/D2 : Ratio of the total deformation to the 2nd yielding deformation
P1 : 1st yielding strength
P2 : 2nd yielding strength
D1 : 1st yielding deformation or strain
D2 : 2nd yielding deformation or strain

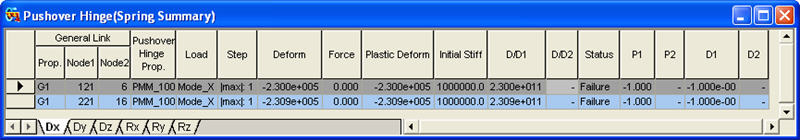

Each component (Dx, Dy, Dz, Rx, Ry & Rz) is separately displayed in each tab.
