Force

Function

• Check resulting member forces at each Pushover Step in a spreadsheet format table.
• Table Tool in midas offers a variety of powerful built-in functions. Refer to the Usage of Table Tool for detailed information.

Call

From the main menu, select [Pushover] tab > [Table] group > [Result Tables] > [Force]

Input

Upon executing the Beam Summary function, the Records Activation Dialog is invoked. Click OK after selecting the output entities such as load cases, pushover steps, etc.

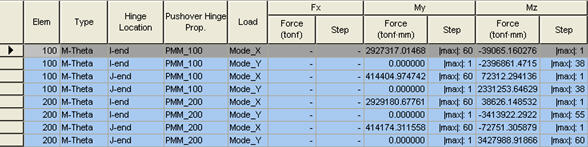

1. Beam Type

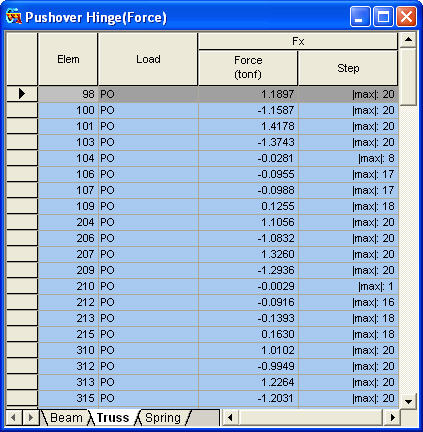

2. Truss Type

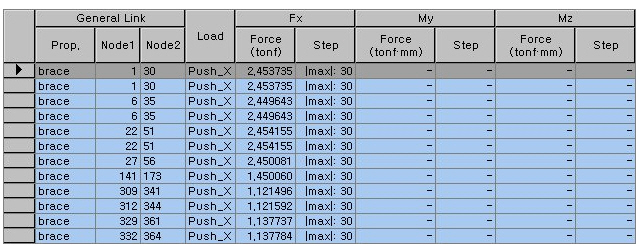

3. Spring Type
