Ductility Factor(D/D2)

Function

• Check the resulting ratio of the total deformation to the 2nd yielding deformation at each Pushover Step in a spreadsheet format table.
• Table Tool in midas offers a variety of powerful built-in functions. Refer to the Usage of Table Tool for detailed information.

Call

From the main menu, select [Pushover] tab > [Table] group > [Result Tables] > [Ductility Factor(D/D2)]

Input

Upon executing the Beam Summary function, the Records Activation Dialog is invoked. Click OK after selecting the output entities such as load cases, pushover steps, etc.

1. Beam Type

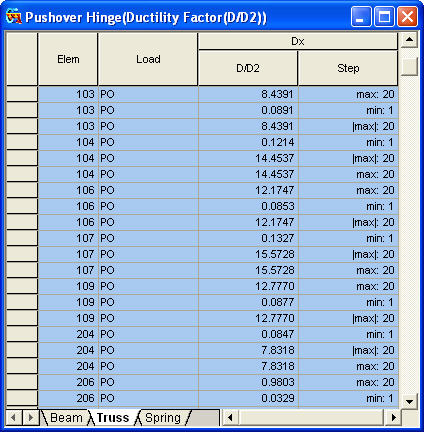

2. Truss Type

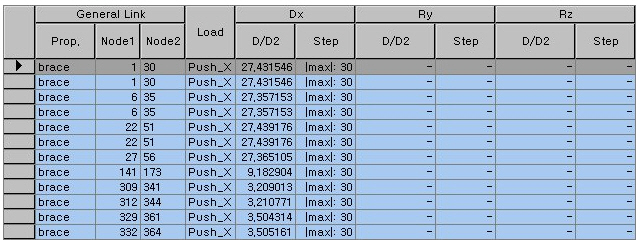

3. Spring Type
