Function
- Assign predefined rebar data to the specific Sub-Domain for Plate Beam Checking.
Call
From the main menu, select [Design] tab > [Type : RC Design] > [Rebar] group > [Rebar Input for Plate] > [Plate Beam Data for Checking]
Input
Plate Member
Select the Sub-Domain Name, Plate Force Option and the Main Rebar Direction for checking.
Sub-Domain Name : Predefined Sub-Domain which is defined as Plate Beam (1D) can be selected.
Click to Add/Modify Sub-Domain
Analysis result will be deleted if Sub-Domain is added or modified.
Plate Force Option
Element : Uses the Internal forces calculated at each node of selected elements.
Avg. Nodal : Uses the average internal nodal forces of the contiguous elements sharing the common nodes.

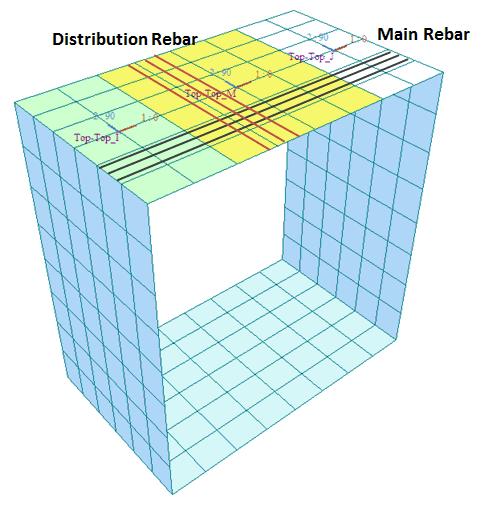

Main Rebar Direction
Dir.1 : The section is checked using the bending moment in Dir.1 defined in Sub-Domain and the shear direction is also determined.
Dir.2 : The section is checked using the bending moment in Dir.2 defined in Sub-Domain and the shear direction is also determined.
Rebar Data
Select rebar data defined in Rebar Input for Plate Beam. Click to Add/Modify Rebar Input for Plate Beam
Add : Add the newly entered data of the selected sub-domain.
Modify : Modify the previously entered data of the selected sub-domain. Design dialog is not closed when
modifying the data so that ‘Re-Calculation’ is possible without performing the design again.
Delete : Delete the previously entered data of the selected sub-domain.
