Function
- Enter the rebar data for members for strength verification.
Call
From the main menu, select [Design] tab > [Type : RC Design] > [Mesh] group > [Meshed Design] > [Slab/Shell Rebars for Checking]
Input
Type Name
Enter the name of rebar data.
Element List
Enter the element numbers of plate elements to enter the specified rebar data.
Shell
Enter the standard rebar sizes, the spacing of rebars and covers to be used in the Shell Flexural Checking function.
Top-Dir. 1 : Enter the standard rebar size and spacing in the direction 1 for the top of the shell.
Bot.-Dir. 1 : Enter the standard rebar size and spacing in the direction 1 for the bottom of the shell.
Top-Dir. 2 : Enter the standard rebar size and spacing in the direction 2 for the top of the shell.
Bot.-Dir. 2 : Enter the standard rebar size and spacing in the direction 2 for the bottom of the shell.
Add Rebar 1 : Enter the standard rebar size and spacing of rebar set 1.
Add Rebar 2 : Enter the standard rebar size of rebar set 2 if necessary.

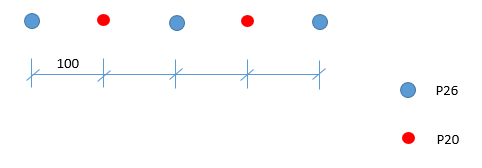

The spacing is defined as the distance between adjacent bars. When the sizes of rebar 1 and rebar 2 are selected as P26 and P20 respectively and the spacing is defined as 100 mm, it means that P26 bars and P20 bars are placed alternately at intervals of 100 mm as shown below.
Cover to Rebar Center : Distance from the concrete surface to the centroid of rebars.
Parameter for Sandwich Model
Consider Iteration for Optimal Design
If you Check off the option, the default thickness of each outer layers is applied as the 20% of element thickness. If you Check on the option, the layer thickness is determined by the program to provide optimum design results.
Consider Iteration for Optimal Design = Check off
Top Layer Thickness : Enter the thickness of top layer. Two times of cove to rebar center is recommended.
Bottom Layer Thickness : Enter the thickness of bottom layer. Two times of cove to rebar center is recommended.
Consider Iteration for Optimal Design = Check on
Limit Thickness of Top Layer : Enter the maximum thickness of top layer.
Limit Thickness of Bottom Layer : Enter the maximum thickness of bottom layer.
Number of Iteration : Enter the maximum number of iterations.
Convergence Tolerance : Enter the Convergence Tolerance value.
