Function
- Enter the transverse stiffener data.
- Select the composite section for which transverse stiffener data will be entered and enter the required data in the dialog box. Composite sections having different transverse stiffeners should be inputted separately.
Call
From the main menu, select [Rating] tab > [Type : Steel Bridge] > [Assessment Code : CS454/20] > [Assessment Input Data] group > [Assessment Parameters] > [Transverse Stiffener]
Input
Target Section & Element
Select a steel Composite Section ID for which transverse stiffener will be entered. Sections other than Composite Sections do not appear in this List
Transverse Stiffener
Check on 'Web' to define the stiffener in the web of steel composite section selected from the Target Section & Element List.
Click on to input the transverse stiffener parameters:
Stiffener Type : Choose the type of stiffener. Flat type and Tee type stiffeners are supported.
One or Two Stiffener : Choose between one or two stiffeners. The two stiffener option is available for I/Box/Tub sections.
Fy : Yield Strength of transverse stiffener. Yield Strength can be entered as per the grade of steel chosen from code by clicking on or the value can be entered manually.
Pitch : Pitch refers to transverse stiffener spacing. At the strength limit state, this can be used to distinguish between stiffened and unstiffened webs or calculate shear strength of the web.
H : Height for Tee type transverse stiffener
B : Width of transverse stiffener
t : Thickness of Flat type transverse stiffener
tw : Thickness of web for Tee type transverse stiffener
tf : Thickness of flange for Tee type transverse stiffener
Click Apply to save the transverse stiffener data input.

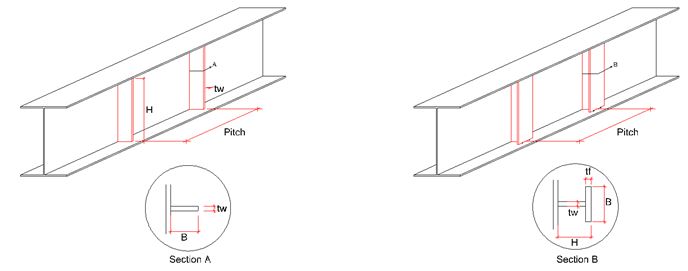

Figure. Symbols for Stiffener
