Steel Flange Reserve Factor (Beam with L. Stiffeners) Table

Function

  • Generate a table summarizing the structural adequacy for the flanges in beams with longitudinal stiffeners in the cross-section. The table contains two tabs to show the summary for the yielding of the flange plate and the strength of longitudinal flange stiffeners.



Call

From the main menu, select [Rating] tab > [Type : Steel Bridge] > [Assessment Code : CS454/20] > [Results] group > [Assessment Result Tables] > [Steel Flange Reserve Factor (Beams with L. Stiffeners)]



Input

1. Flange tab


Element : Element ID

Part : The i- or j-end of the element, giving the Node ID at that end in square brackets [Node ID]

Section Type : Compact or noncompact

Rating Case : The relevant Load Combinations for Assessment.

Comp./Tens. : The stress condition in flanges (Compression/Tension).

Sig_yf : The nominal yield stress for the flange material.

Sig_f_SV : The longitudinal stress at the mid-plane of the flange plate due to SV load model.

Tau_SV : The summation of the shear stress (Clause 9.10.2.1, BS5400:3) due to SV load model.

Sig_f_DL : The longitudinal stress at the mid-plane of the flange plate due to combined dead load and superimposed dead load.

Tau_DL : The summation of the shear stress (Clause 9.10.2.1, BS5400:3) due to combined dead load and superimposed dead load.

Sig_f_ST : The longitudinal stress at the mid-plane of the flange plate due to ALL Model 2 loading.

Tau_ST : The summation of the shear stress (Clause 9.10.2.1, BS5400:3) due to ALL Model 2 loading.

A : Structural Adequacy – calculated as the assessment resistance over the assessment load effects (RA*/SA*).

Psi : Reserve Factor against a special vehicle load model with the associated standard vehicle loading. The symbol hyphen (-) is shown when the shear directions are different between resistance and shear force due to special vehicle.

Psi* : Reserve Factor against a special vehicle load model without the associated standard vehicle loading. The symbol hyphen (-) is shown when the shear directions are different between resistance and shear force due to special vehicle.

Check : An overall indication whether the section passed all checks and is OK or Not Good (NG)




Structural adequacy (A), Psi, and Psi* are calculated as follows. The value of Sig_2 is assumed to be zero.

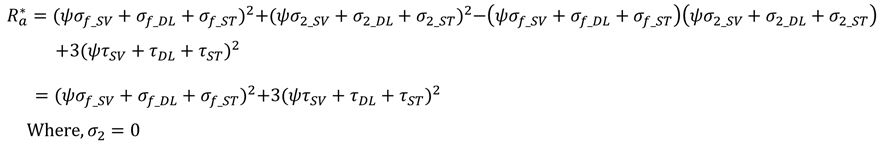

Psi x S* + SD* + SST* = RA*, Psi is determined with back-calculation from the equation.

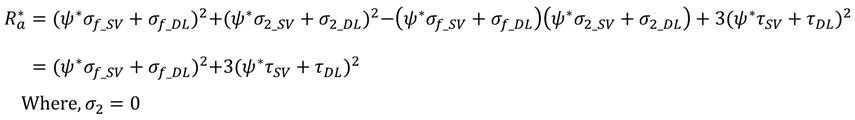

Psi* x S* + SD* = RA*, Psi* is determined with back-calculation from the equation.




2. Stiffener tab


Element : Element ID

Part : The i- or j-end of the element, giving the Node ID at that end in square brackets [Node ID]

Rating Case : The relevant Load Combinations for Assessment.

Stiffener/Flange : Components for the assessment.

k_l : The value of the reduction factor.

Sig_y : The nominal yield stress for the stiffener material or the flange plate material.

Sig_a_SV : The longitudinal stress at the centroid of the effective section of the stiffener due to SV load model.

Tau_1_SV : The in-plane shear stress in the flange plate due to torsion of SV load model.

Sig_a_DL : The longitudinal stress at the centroid of the effective section of the stiffener due to combined dead load and superimposed dead load.

Tau_1_DL : The in-plane shear stress in the flange plate due to combined dead load and superimposed dead load.

Sig_a_ST : The longitudinal stress at the centroid of the effective section of the stiffener due to ALL Model 2 loading.

Tau_1_ST : The in-plane shear stress in the flange plate due to ALL Model 2 loading.

A : Structural Adequacy – calculated as the assessment resistance over the assessment load effects (RA*/SA*).

Psi : Reserve Factor against a special vehicle load model with the associated standard vehicle loading. The symbol hyphen (-) is shown when the shear directions are different between resistance and shear force due to special vehicle.

Psi* : Reserve Factor against a special vehicle load model without the associated standard vehicle loading. The symbol hyphen (-) is shown when the shear directions are different between resistance and shear force due to special vehicle.

Check : An overall indication whether the section passed all checks and is OK or Not Good (NG).

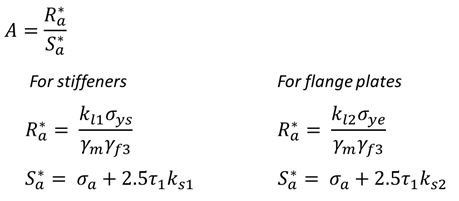

Structural adequacy (A), Psi, and Psi* are calculated as follows.




Psi x S* + SD* + SST* = RA*, Psi is determined with back-calculation from the equation.




Psi* x S* + SD* = RA*, Psi* is determined with back-calculation from the equation.
