Function

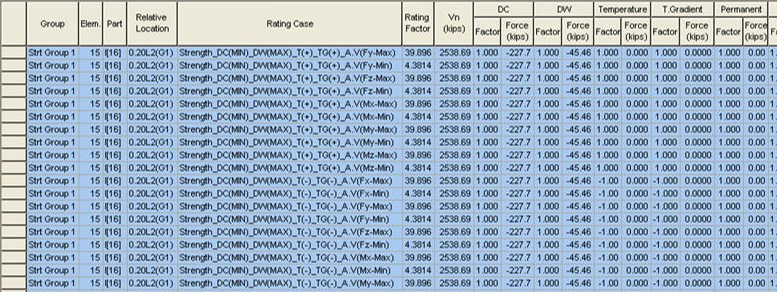

- Displays the Bridge Load Rating Design results of all the Rating Cases due to shear strength as per the Strength Limit State.
Call
From the main menu, select [Rating] tab > [Type : PSC Bridge] > [Results] group > [Rating Result Tables] > [Shear Strength Rating Factor]
Input
Shear Strength Data
Group : User Specified element group name.
Elem. : Designed element.
Part : The Location of the member [node or
node].
Rating Case : The design condition that will generate corresponding member results.
Rating Factor : The strength reduction factor of the corresponding member for each load case.
Vn : Shear Resistance.
DC
Factor : The DC load case factor of inputted in Bridge Load Rating Setting.
Force(tonfm) : The shear strength due to DC load case.
DW
Factor : The DW load case factor inputted in Bridge Load Rating Setting.
Force(tonfm) : The shear strength due to DW load case.
Temperature
Factor : The Temperature load case factor inputted in Bridge Load Rating Setting.
Force(tonfm) : The shear strength due to Temperature Load Case.
Permanent
Factor : The Permanent load case factor inputted in Bridge Load Rating Setting.
Force(tonfm) : The shear strength due to Permanent load case.
Secondary
Factor : The Secondary load case factor inputted in Bridge Load Rating Setting
Force(tonfm) : The shear strength due to Secondary load case.
User Defined
Factor : The User Defined load case factor inputted in Bridge Load Rating Setting.
Force(tonfm) : The shear strength due to User Defined load case.
Pri.LL
Factor : The Primary Live Load factor inputted in Bridge Load Rating Setting.
Force(tonfm) : The shear strength due to Primary Live Load.
Adj.LL
Factor : The Adjacent Live Load factor inputted in Bridge Load Rating Setting.
Force(tonfm) : The shear strength due to Adjacent Live Load.
If the result does not satisfy the standard specification of design, then it is displayed in red.
