Function

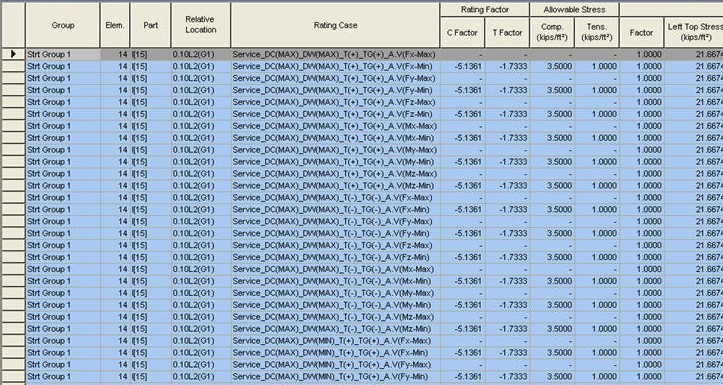

- Displays the Bridge Load Rating Design results for all the Concrete Stress Rating Cases as per the Service Limit State.
Call
From the main menu, select [Rating] tab > [Type : PSC Bridge] > [Results] group > [Rating Result Tables] > [Concrete Stress Rating Detail]
Input
Group : User Specified element group name.
Elem. : Designed element
Part : Location of the member [node or node].
Rating Case : The design condition that will generate corresponding member results.
Rating Factor
C Factor : Rating Factor for compression stress.
T Factor : Rating Factor for tensile stress.
DC
Factor : The DC load case factor inputted in Bridge Load Rating Setting.
Left Top Stress (tonf/m2) : The stress at left-top corner of the section due to DC Load Case.
Right Top Stress (tonf/m2) : The stress at right-top corner of the section due to DC Load Case.
Right Bottom Stress (tonf/m2) : The stress at right-bottom corner of the section due to DC Load Case.
Left Bottom Stress (tonf/m2) : The stress at left-bottom corner of the section due to DC Load Case.
DW
Factor : The DW load case factor inputted in Bridge Load Rating Setting.
Left Top Stress (tonf/m2) : The stress at the left-top corner of section due to DW Load Case.
Right Top Stress (tonf/m2) : The stress at the right-top corner of section due to DW Load Case.
Right Bottom Stress (tonf/m2) : The stress at the right-bottom corner of the section due to DW Load Case.
Left Bottom Stress (tonf/m2) : The stress at left-bottom corner of the section due to DW Load Case.
Temperature
Factor : The Temperature load case factor inputted in Bridge Load Rating Setting.
Left Top Stress (tonf/m2) : The stress at the left-top corner of section due to Temperature Load Case.
Right Top Stress (tonf/m2) : The stress at the right-top corner of section due to Temperature Load Case.
Right Bottom Stress (tonf/m2) : The stress at the right-bottom corner of section due to Temperature Load Case.
Left Bottom Stress (tonf/m2) : The stress at the left-bottom corner of section due to Temperature Load Case.
Permanent
Factor : The Permanent load case factor inputted in Bridge Load Rating Setting.
Left Top Stress (tonf/m2) : The stress at the left-top corner of section due to Permanent Load Case.
Right Top Stress (tonf/m2) : The stress at the right-top corner of section due to Permanent Load Case.
Right Bottom Stress (tonf/m2) : The stress at the right-bottom corner of section due to Permanent Load Case.
Left Bottom Stress (tonf/m2) : The stress at the left-bottom corner of section due to Permanent Load Case.
Secondary
Factor : The Secondary load case factor inputted in Bridge Load Rating Setting.
Left Top Stress (tonf/m2) : The stress at the left-top corner of section due to Secondary Load Case.
Right Top Stress (tonf/m2) : The stress at the right-top corner of section due to Secondary Load Case.
Right Bottom Stress (tonf/m2) : The stress at the right-bottom corner of section due to Secondary Load Case.
Left Bottom Stress (tonf/m2) : The stress at the left-bottom corner of section due to Secondary Load Case.
User Defined
Factor : The User Defined load case factor inputted in Bridge Load Rating Setting.
Left Top Stress (tonf/m2) : The stress at the left-top corner of section due to User Defined Load Case
Right Top Stress (tonf/m2) : The stress at the right-top corner of section due to User Defined Load Case
Right Bottom Stress (tonf/m2) : The stress at the right-bottom corner of section due to User Defined Load Case
Left Bottom Stress (tonf/m2) : The stress at the left-bottom corner of section due to User Defined Load Case
Pri.LL
Factor : The Primary Live Load factor inputted in Bridge Load Rating Setting.
Left Top Stress (tonf/m2) : The stress at the left-top corner of section due to Primary Live Load Case
Right Top Stress (tonf/m2) : The stress at the right-top corner of section due to Primary Live Load Case
Right Bottom Stress (tonf/m2) : The stress at the right-bottom corner of section due to Primary Live Load Case
Left Bottom Stress (tonf/m2) : The stress at the left-bottom corner of section due to Primary Live Load Case
Adj.LL
Factor : The Adjacent Live Load factor inputted in Bridge Load Rating Setting.
Left Top Stress (tonf/m2) : The stress at the left-top corner of section due to Adjacent Live Load Case
Right Top Stress (tonf/m2) : The stress at the right-top corner of section due to Adjacent Live Load Case
Right Bottom Stress (tonf/m2) : The stress at the right-bottom corner of section due to Adjacent Live Load Case
Left Bottom Stress (tonf/m2) : The stress at the left-bottom corner of section due to Adjacent Live Load Case
If the result does not satisfy the standard specification of design, then it is displayed in red.
