Function
- Displays the critical condition of concrete stress as per the Service Limit State of Bridge Load Rating Design.
Call
From the main menu, select [Rating] tab > [Type : PSC Bridge] > [Results] group > [Rating Result Tables] > [Concrete Stress Rating Factor]
Input

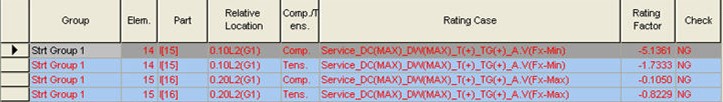

Concrete Stress
Group : User Specified element group name.
Elem. : Designed element
Part : Location of the member [node or
node].
Comp./Tens. : Type of stress (Compression or Tension).
Rating Case : The design condition that will generate corresponding member results.
Rating Factor : Minimum Rating Factor.
Check : Evaluation of Bridge Load Rating Design by Concrete Stress.
If the result does not satisfy the standard specification of design, then it is displayed in red.
