Function

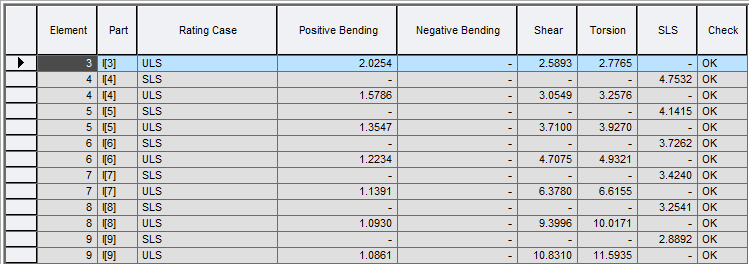

- Generate a table summarizing the worst factor among structural adequacy factor and reserve factors of positive moment, negative moment, shear, torsion, SLS based on the assessment checks for ULS and SLS.
Call
From the main menu, select [Rating] tab > [Type : PSC Bridge] > [PSC Bridge : CS454/20] > [Result] group > [Assessment Result Tables] > [Reserve Factors Summary Table]
Input
Element : Element ID
Part : The i- or j-end of the element, giving the Node ID at that end in square brackets [Node ID]
Rating Case : The relevant Load Combinations for Assessment.
Positive Moment : Shows worst factor for the positive moment.
Negative Moment : Shows worst factor for the negative moment.
Shear : Shows worst factor for the shear.
Torsion : Shows worst factor for the torsion.
SLS : Shows worst factor for the serviceability.
Check : An overall indication whether the section passed all checks and is OK or Not Good (NG)
