1. Description
This component operates the Self Weight function in Civil NX.
Enter the self-weight of elements included in the model as applied loads, or modify or delete previously entered self-weight.
The Self Weight funtion can be found in the Civil NX main menu,select [Load] tab > [Static Loads(Type)] group > [Self Weight]
2. Grasshopper Path
[Midas] > [Static Loads] > [Self Weight]

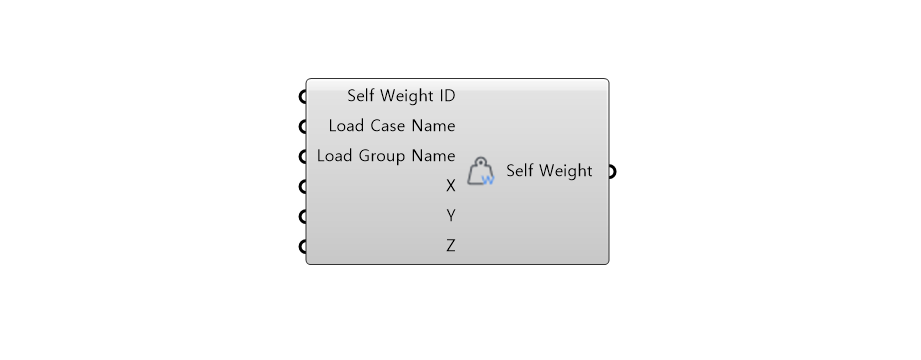

3. Component Image
4. Input/Output Value
- Input Data
| Index | Name | Description | Type | Default |
Previous |
|---|---|---|---|---|---|
| 1 | Key | Self Weight ID. | Integer | - | - |
| 2 | LCNAME | Load Case Name | String | - | - |
| 3 | GROUP_NAME | Load Group Name | String | - | - |
| 4 | FV1,FV2,FV3 |
Self Wegit Factor (X, Y, Z) |
Real | - | - |
- Output Data
| Index | Command | Description | Type | Method |
Next |
|---|---|---|---|---|---|
| 1 | BODF | Create Self Weight | Json | PUT/DELETE | - |
5. Reference API Manual Link
