1. Description
This component operates the Nodal Load function in Civil NX.
Enter concentrated nodal loads (Concentrated Forces and Moments), or modify or delete previously entered concentrated loads.
The Nodal Loads funtion can be found in the Civil NX main menu,select [Load] tab > [Static Loads(Type)] group > [ Nodal Loads]
2. Grasshopper Path
[Midas] > [Static Loads] > [Nodal Loads]

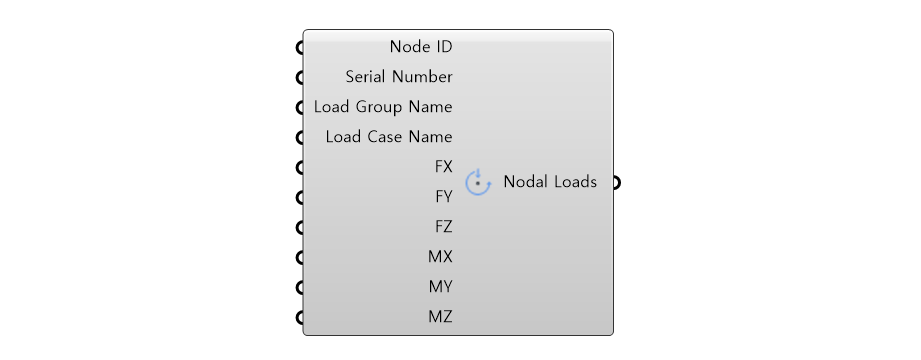

3. Component Image
4. Input/Output Value
- Input Data
| Index | Name | Description | Type | Default |
Previous |
|---|---|---|---|---|---|
| 1 | Key | Node No. | Integer | - | - |
| 2 | ID | Serial Number | Integer | - | - |
| 3 | GROUP_NAME | Load Group Name | String | - | - |
| 4 | LCNAME | Description | String | - | - |
| 5 |
FX,FY,FZ |
Nodal Loads |
Real | - | - |
- Output Data
| Index | Command | Description | Type | Method |
Next |
|---|---|---|---|---|---|
| 1 | CNLD | Create Nodal Loads | Json | PUT/DELETE | - |
5. Reference API Manual Link
