1. Description
This component extracts Node information formed in Civil NX. The Midas Get Node component recognizes the Node positions created in Rhino and displays the Node information of the product. It does not display Node information that is not created in Civil NX. As long as the Node coordinate information can be recognized in Rhino, it retrieves the Node information generated in the product.
2. Grasshopper Path
[Midas] > [Tools] > [Midas Get Node]

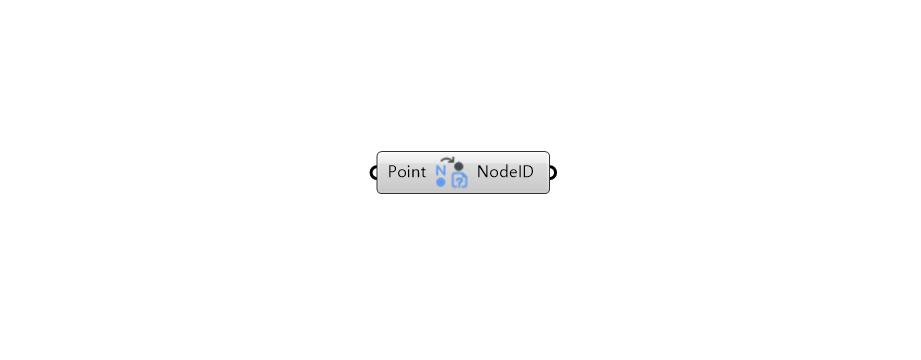

3. Component Image
4. Input/Output Value
- Input Data
| Index | Name | Description | Type | Default |
Previous |
|---|---|---|---|---|---|
| 1 | Point | Point Coordinate | String | - | - |
- Output Data
| Index | Command | Description | Type | Method |
Next |
|---|---|---|---|---|---|
| 1 | NODE | Node ID | Integer | Get | - |
5. Reference API Manual Link
