1. Description
This component operates the Specified Displacements of Support function in Civil NX.
Enter specified (forced) nodal displacements, or modify or delete previously entered specified (forced) displacements.
The Specified Displacements of Support function can be found in the Civil NX main menu,select [Load] tab > [Static Loads(Type)] group > [Specified Displacements of Support]
2. Grasshopper Path
[Midas] > [Static Loads] > [Specified Displacements of Support]

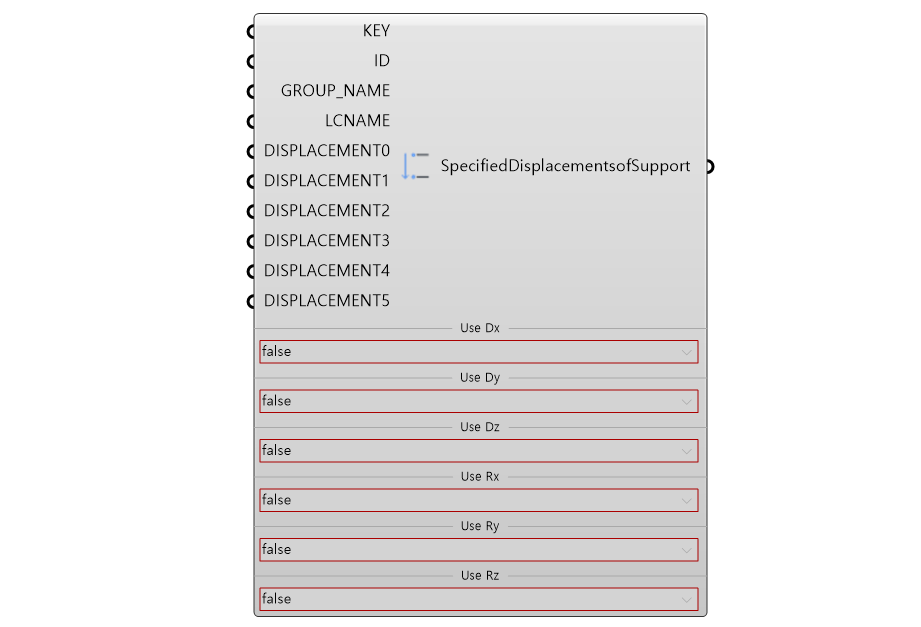

3. Component Image
4. Input/Output Value
- Input Data
| Index | Name | Description | Type | Default |
Previous |
|---|---|---|---|---|---|
| 1 | Key | Node No. | Integer | - | - |
| 2 | ID | Serial Number | Integer | - | - |
| 3 | GROUP_NAME | Load Group Name | String | - | - |
| 4 | LCNAME | Load Case Name | String | - | - |
| 5 | DISPLACEMENT 0,1,2,3,4,5 | Displacements Value (Local Direction) Dx, Dy, Dz, Rx, Ry, Rz |
Real | - | - |
| 6 | Use Dx,Dy,Dz,Rx,Ry,Rz | Usage Flag | Select | false | - |
- Output Data
| Index | Command | Description | Type | Method |
Next |
|---|---|---|---|---|---|
| 1 | SDSP | Assign Specified Displacements of Support | Json | PUT/DELETE | - |
5. Reference API Manual Link
Specified Displacements of Support
