1. Description
This component operates the Define Pressure Load Type function in Civil NX.
Define the pressure load cases and the corresponding pressure loads.
The Define Pressure function can be found in the Civil NX main menu,select [Load] tab > [Static Loads(Type)] group > [Define Pressure Load Type]
2. Grasshopper Path
[Midas] > [Static Loads] > [Define Pressure Load Type]

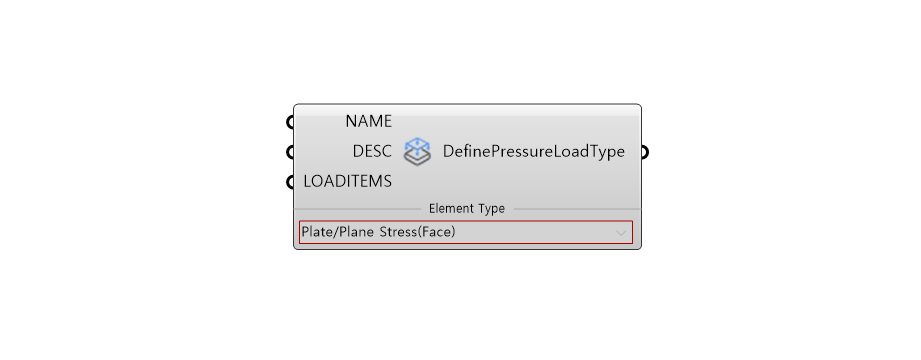

3. Component Image
4. Input/Output Value
- Input Data
| Index | Name | Description | Type | Default |
Previous |
|---|---|---|---|---|---|
| 1 | NAME | Pressure Load Type Name | String | - | - |
| 2 | DESC | Description | String | - | - |
| 3 | LOADITEMS | Load Items | Object | - | Pressure Load Item |
| 4 | Element Type | Element Type | Select | Plate/Plane stress(Face) | - |
- Output Data
| Index | Command | Description | Type | Method |
Next |
|---|---|---|---|---|---|
| 1 | PSLT | Define Prssure Load Type | Json | PUT/DELETE | - |
5. Reference API Manual Link
