1. Description
This component operates the Plate Type of Create Elements function in Civil NX.
Create elements.
The Plate Type of Create Elementsfuntion can be found in the Civil NX main menu,select [Node/Element] tab > [General] group > [Create] menu > Create Element
2. Grasshopper Path
[Midas] > [Node/Element] > [Plate]

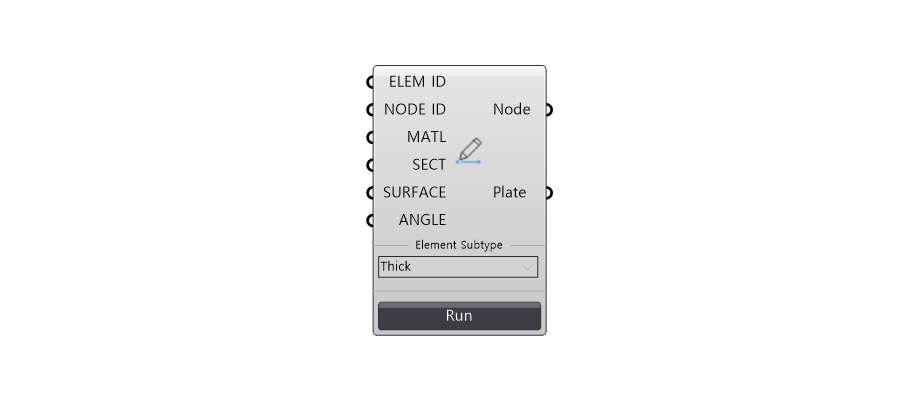

3. Component Image
4. Input/Output Value
- Input Data
| Index | Name | Description | Type | Default |
Previous |
|---|---|---|---|---|---|
| 1 | ELEM ID | Element ID (If empty, the number will be entered automatically) |
Integer | - | - |
| 2 | NODE ID | Node ID (If empty, the number will be entered automatically) |
Integer | - | - |
| 3 | MATL | Material ID | Integer | 1 | - |
| 4 | SECT | Thickness ID | Integer | 1 | - |
| 5 | SURFACE | Surface | Object | - | Suface Object (by Rhino) |
| 6 | ANGLE | Beta Angle | Real | 0 | - |
| 7 | Element Subtype | Select | Thick | - | |
- Output Data
| Index | Command | Description | Type | Method |
Next |
|---|---|---|---|---|---|
| 1 | NODE | Create Plate Node | Json | POST DELETE |
- |
| 2 | ELEM | Create Plate Element | - |
5. Reference API Manual Link
