1. Description
This component operates the Define Supports function in Civil NX.
Restrain the degrees-of-freedom of selected nodes. Replace or remove the support conditions previously defined.
The Supports function can be found in the Civil NX main menu,select [Boundary] tab > [Supports] group > [Define Supports]
2. Grasshopper Path
[Midas] > [Boundary] > [Supports]

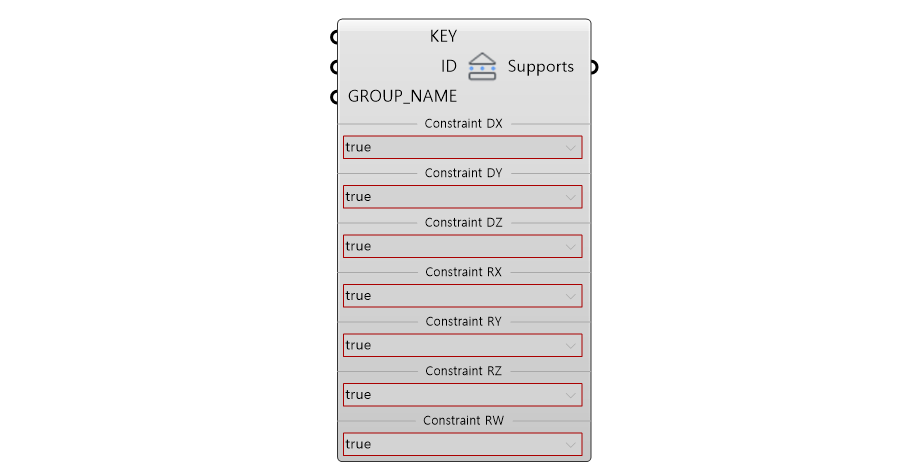

3. Component Image
4. Input/Output Value
- Input Data
| Index | Name | Description | Type | Default |
Previous |
|---|---|---|---|---|---|
| 1 | Key | Node ID. | Integer | - | - |
| 2 | ID | Serial Number | Integer | - | - |
| 3 | GROUP_NAME | Boundary Group Name | String | - | - |
| 4 | Constraint DX,DY,DZ,RX,RY,RZ | Use Constraint DOF | Select | True | - |
- Output Data
| Index | Command | Description | Type | Method |
Next |
|---|---|---|---|---|---|
| 1 | CONS | Assign Supports | Json | PUT/DELETE | - |
5. Reference API Manual Link
